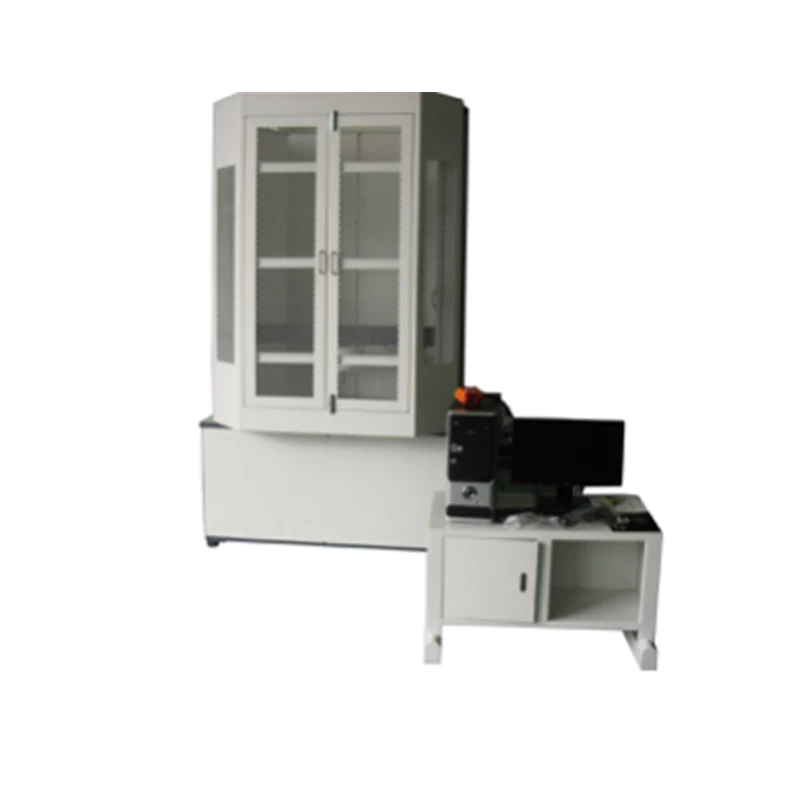

Computer Five Feet Compression Resistance Tester GT-LB14

Computer Five Feet Compression Resistance Testermachine is used to test the compressive strength of the five feet of the office seat, and test the stressful situations of the feet by the vertical pressure.Secure the chair casters to the turntable, set an certain time and an certain times of forces on the feet, check the feet anti-damage ability.



Computer Five Feet Compression Resistance Tester GT-LB14


Product Introduction

Application:

The tester is according to the standard of BFM chair foot compression resistance. Firstly impose 1136KG force on five feet with keeping constant force 60s, after remove the force, impose 1136KG force with keeping constant force 60 s again. Then remove it, thirdly directly impose force to damage five feet.

The tester is with computer control, it can arbitrarily editor different test methods according to different chair feet and customer testing requirements. It is with easy operation, and its open type editor meets different report format required by the customer. At the same time, multiple protection functions included such as overload capacity, the upper and lower limit, leakage can protect equipment safe operation at any time.



Standards:

ANSI/BIFMA X5.1- 2011 Section 7,  QB/T2280 -2007Section 6.6.8

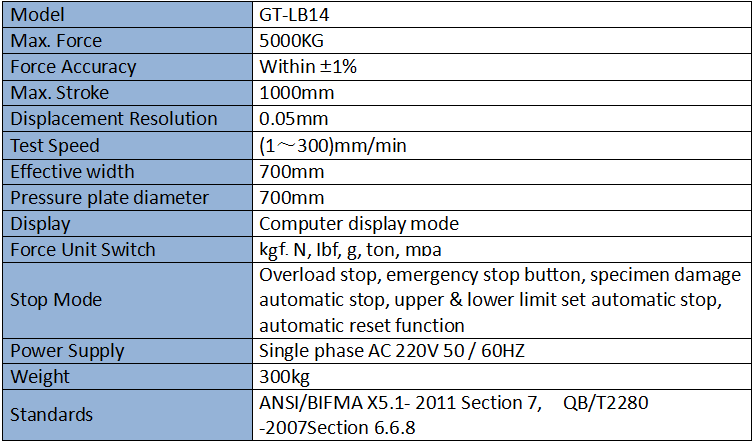

Key Specifications



Applications Industry

All kinds of chair products can be tested on the Computer Five Feet Compression Resistance Tester




Product Tags chair tester          chair assembly tester          chair durability tester          chair stability tester          chair armrest tester          chair backrest dynamic tester          chair out stop tester          chair castor durability tester          chair back durability tester
