Concrete Base Basic Ground Mounting Bracket Solar Energy Power Farm Plant System

Concrete Base Basic Ground Mounting Bracket Solar Energy Power Farm Plant System

Concrete Base Basic Solar Ground Bracket Through the special anchor plate design, the system can achieve on-site fine-tuning, adapt to different sites, and is mainly used in large and medium-sized solar photovoltaic projects. Patented and certified system design ensures safe and fast installation of the project.

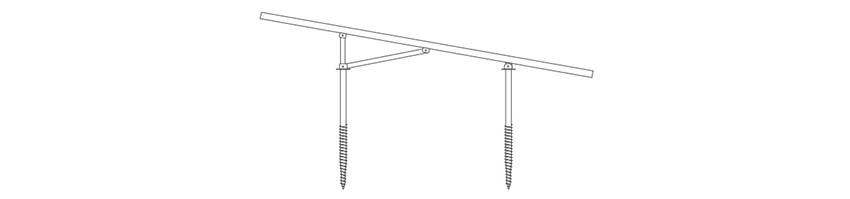

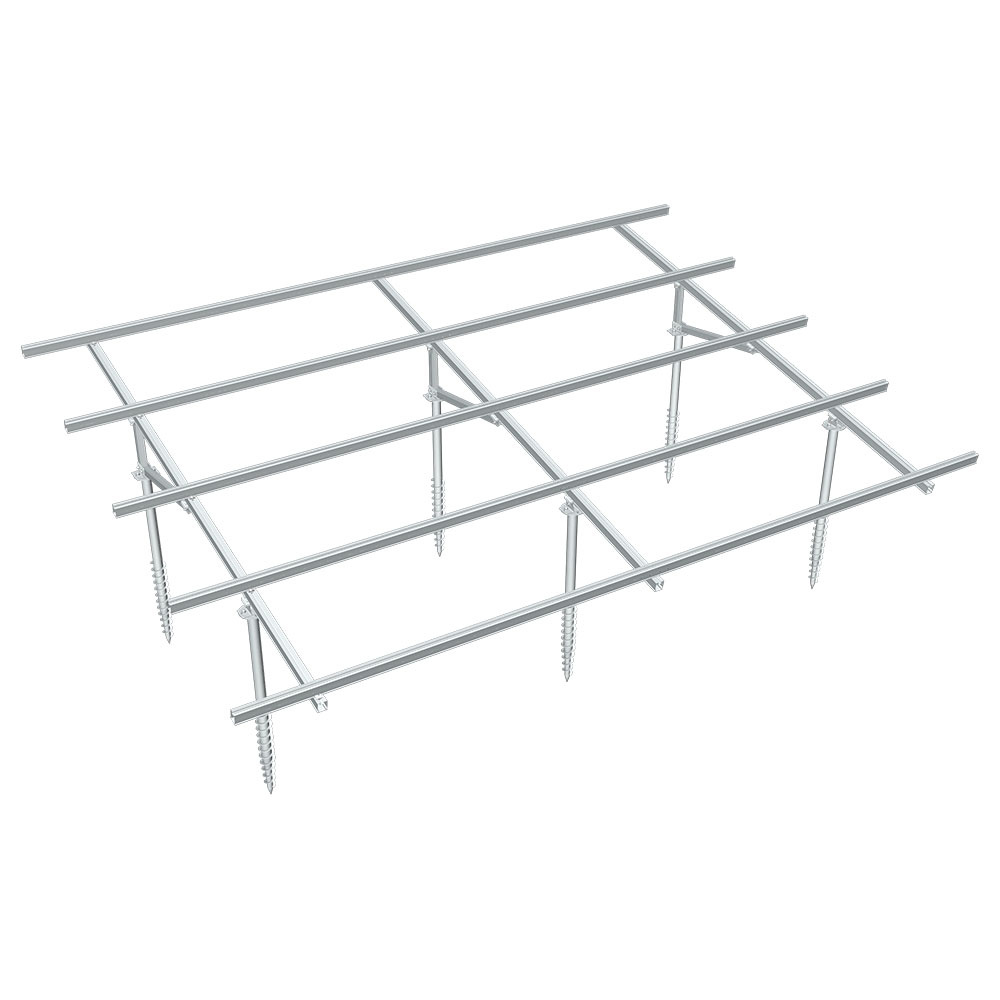

System Structure

Technical Parameters

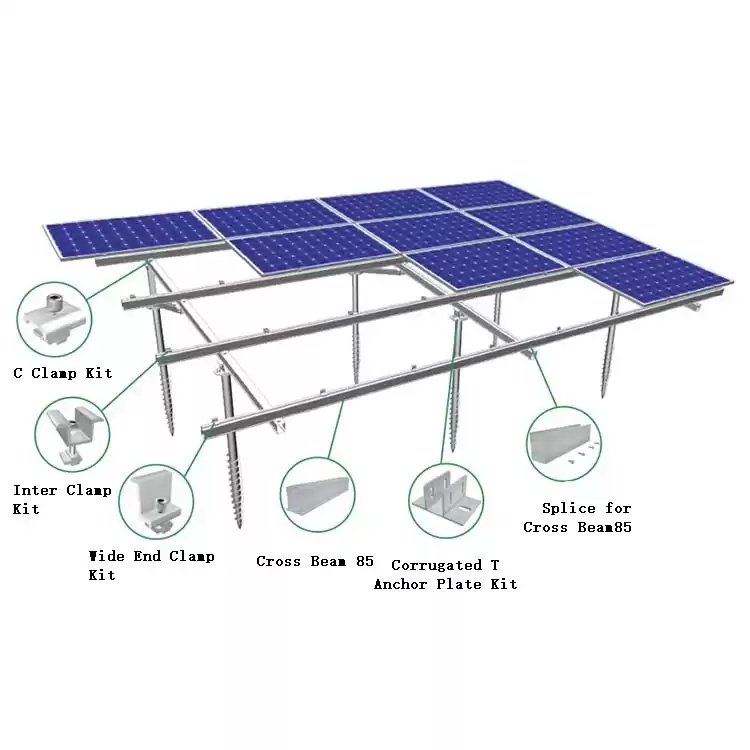

Components Details

Cross Beam 85 Specification：LX71X85 Components：3100MM,4100MM,5100MM	Splice for Cross Beam 85 Specification：L260MM Components：Hexa Self-Tapping Screw,With EPDM Washer ST6.3*19
Corrugated T Anchor Plate Kit Components:Corrugated Gasket,Corrugated T Plate,Hexagon Bolt Kit M12*95 Material:AL6005-T5（Anodized ）	T Anchor Plate Components：T Anchor Plate Hexagon Bolt Kit M12*90
Wide End ClampKit Components:Wide End Clamp, Cross Module, Spring Washer M8,Hexagon Socket Bolt	Inter Clamp Kit Components：Inter Clamp,Cross Module Spring Washer M8,Hexagon Socket Bolt
C Clamp Kit Components:C Clamp, Cross Module,Spring Washer M8 Hexagon Socket Bolt	Pre-assemble Support Components:Flat Washer, Spring Washer,Hexagon Nut; Hexagon Bolt,Hexagon Socket Head Bolt T shaped Joint;Square Tube Beam;C Clamp

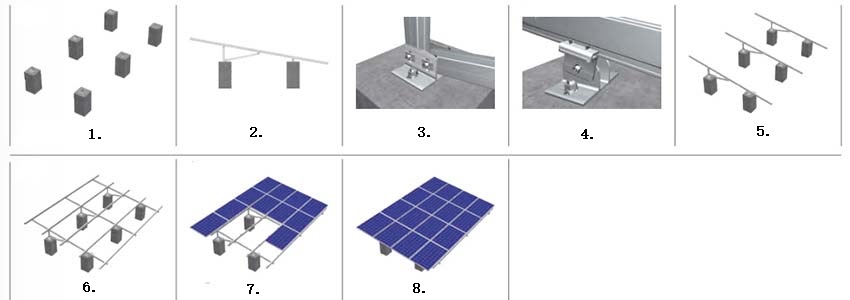

Installation Guide

1.Fasten the Corrugated T Anchor Plate Kit and T Anchor Plate on the bolts embedded on the concrete foundation with bolt kits.

2.Install Pre-assemble Support.

3.Install the T Anchor Plate Kit with Pre-assemble Support and lock tightly.

Installation is done.

4.Tightly lock the Back Support and Inclined Support with Corrugated T Anchor Plate Kit respectively.

5.Repeat step 2, 3 and 4.

6.Install Cross Beam.

7.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

8.Installation is done

Jesfer solar provide high quality of solar structure system & accessories to clients around the world. We are professional solar mounting bracket manufacturer from China, we’ve engaged in producing and exporting solar aluminum mount for more than 15 years.

Our Packaging

Jesfer packing design engineer team care the safety of workers, both for hand-carrying and forklift processing.The small accessories of Ground Solar PV Mounting Systems are packed with 3 standard kinds of paper cartons, weight range from 5-25kg per box, 0.5-1.5tons per pallet. Longer components of Jesfer Ground solar PV racking system, like solar rail, solar structure beamsare loaded on pallets with 2 to 8 pieces per bundle. The sizes of cartons and pallets are always calculated according to 20ft and 40ft containers to ship by sea and by truck inland.Optionally, bulk bundles of longer components like solar rails to be loaded in containers can save some space and logistic freight.

Our Team

Our energetic and positive team always work efficient and provide excellent service to customers from all over the world.

Our Value

Integrity, Accountability, Passion, Collaboration, Creating customer value, Employee growth

Our Service

We are Provider of solar smart solutions,Customzied complete solar energy ground mounting structure system is available.with over 15years combined solar energy experience,Jesfer solar continues to be part of the renewable energy transition by helping your harvest clean energy at any given location in the world.

Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For Solar Mounting System Solutions, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!
