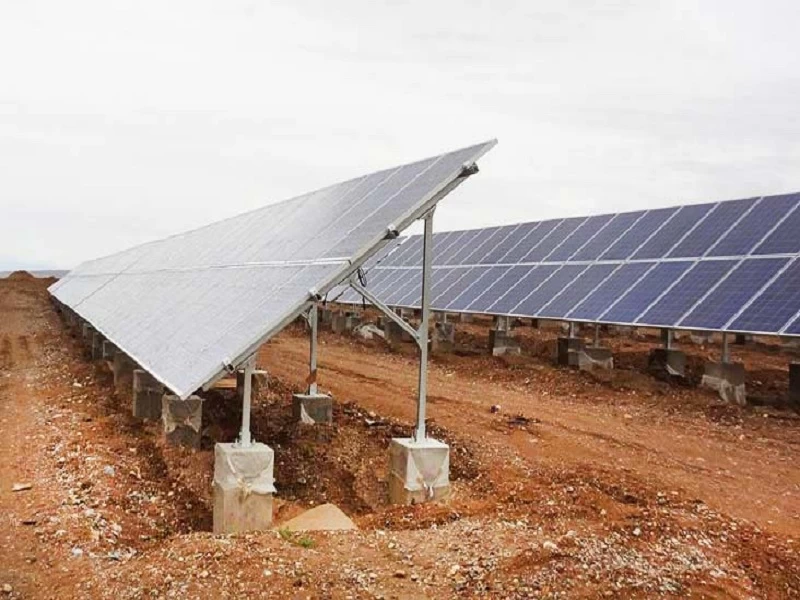

Concrete Based Ground Mounting
Highly pre-assembled support for Concrete Based Ground Mounting helps to save your labor cost and shorten the installation time.
Material
|
AL 6005-T5/SUS304/Q235B
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 12μm Average
Hot-galvanized Coating Thickness≥ 65μm
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years quality warranty, 25years life span warranty
|
System Overview
Highly pre-assembled before shipment, save your onsite labor cost
Can be adjusted in both landscape and portrait direction, making the system being compatible in certain rugged terrain
15 years' warranty, 25 years' life span
