Concrete Block Solar PV Farm Plant Ground Mounting System

Concrete Block Solar PV Farm Plant Ground Mounting System

Jesfer's Concrete Block Ground Mounting System Solution is available for every location,application and environment.Each System design case by case ,no onsite cut and drill request,cost -effectiveness and flexibility in installation and design.

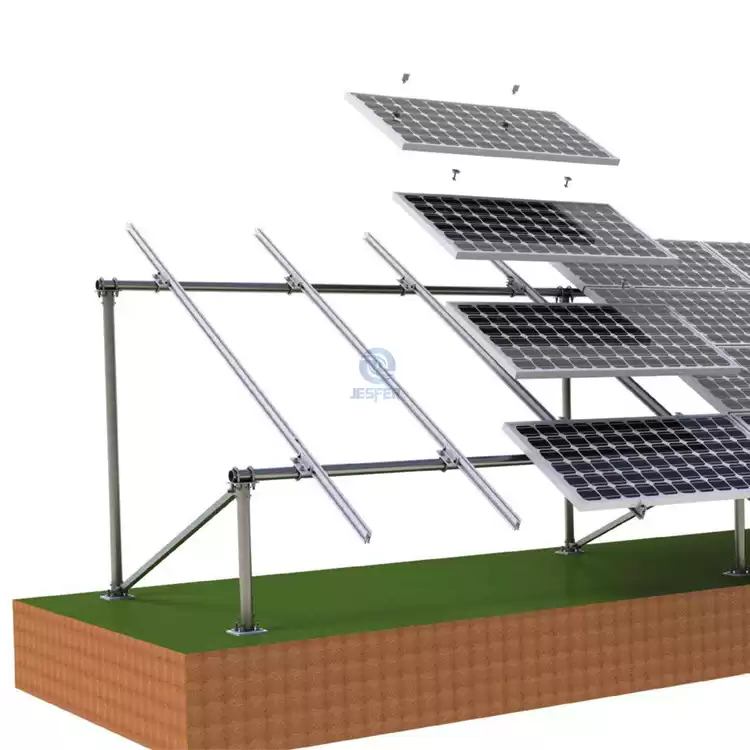

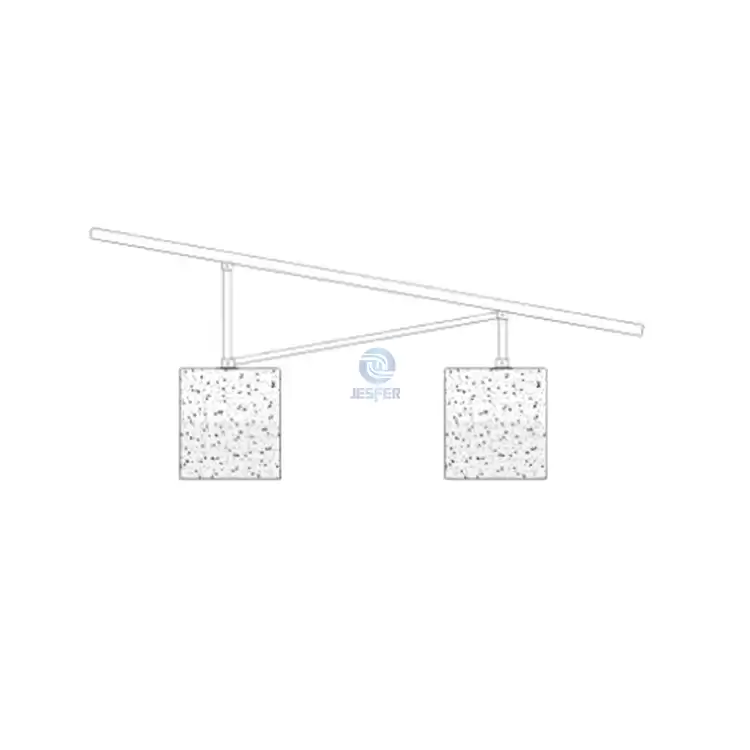

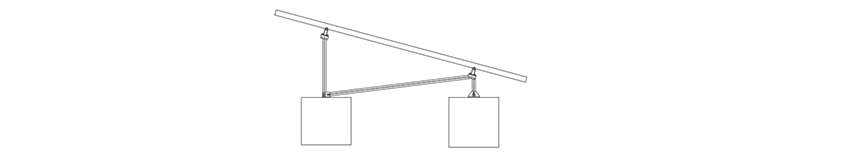

System Structure

Technical Parameters

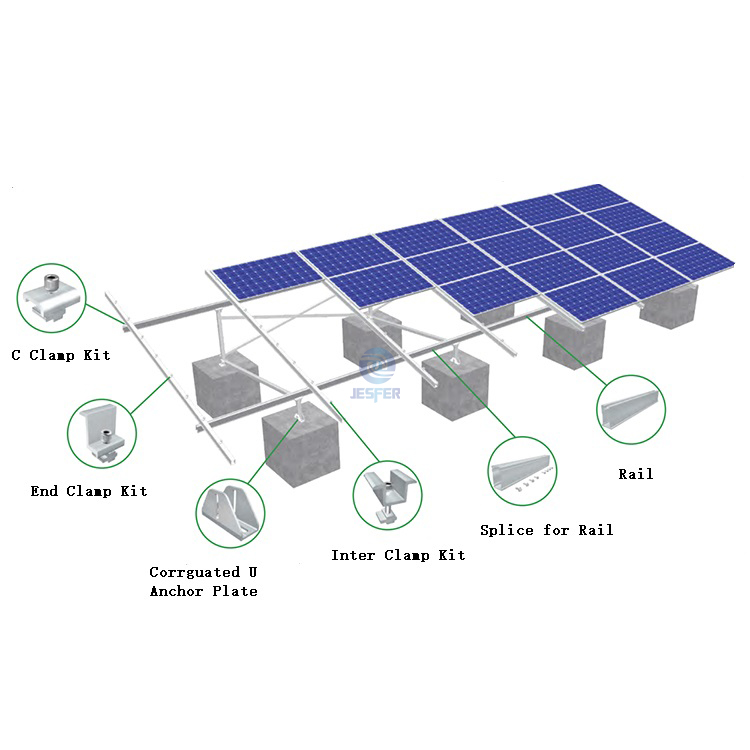

Components Details

Splice for Rail kit Specification：L260mm Components：Splice for Rail ,Hexa Self-Tapping Screw With EPDM Washer ST6.3*19	Rail 105 Specification：L*64.5*105 Standard Length：3100mm,4100mm,5100mm
Ground Screw Specification：L1600mm	Square Tube Inclined Support Specification：L*55*55 Material：AL6005-T5（Anodized ）
Wide End ClampKit Components:Wide End Clamp, Cross Module, Spring Washer M8,Hexagon Socket Bolt	Inter Clamp Kit Components：Inter Clamp,Cross Module Spring Washer M8,Hexagon Socket Bolt
C Clamp Kit Components:C Clamp, Cross Module,Spring Washer M8 Hexagon Socket Bolt	Pre-assemble Back Support Components:Square Tube；T Shaped JointC Clamp； Corrugated Gasket ,Hexagon Nut；  Hexagon Bolt Flat Washer；Spring Washer  Hexagon Socket Head Bolt,Pro-Corrugated T Anchor Plate
Pre-assembled Front Support Components:Square Tube；T Shaped Joint C Clamp；Corrugated Gasket Hexagon Nut；Hexagon Bolt ,Flat Washer；Spring Washer Hexagon Socket Head Bolt ,Pro-Corrugated T Anchor Plate	Corrugated U Anchor Plate Specification：L120 Material：AL6005-T5（Anodized ）

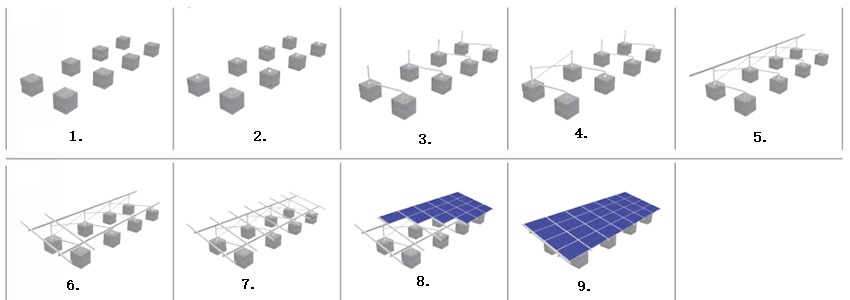

Installation Guide

1.Grout the bolt embedded on the concrete foundation based on project solution.

2.Fix the anchor plates with embedded bolts on the concrete foundation.

3.Install the Pre-assembled Support of Front and Back Support.

4.Install Back Side Support.

5.Install Rail

6.Install Beam.

7.The installation of Beam is done

8.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

9.Installation is done.

1).Delivery Terms:FOB, CNF, CIF,EXW are available.

For some countries, we can cooperate with DDP, such as Philippines, Malaysia, Thailand, Vietnam, Botswana and so on.

2).Terms of payment:Deposit before production by T/T, The balance shall be paid after inspection and before shipment.

3).Production time:Sample order normally take about 3-7days .and bulk orders usually take about 20-30 days.

4).Time of shipment:

For Southeast Asia:10-15days.

For Europe:around 30days

For Africa:around 20-30 days

For the Middle East :around 20-30 days

For South American countries:around 40-50 days

Production and transportation of Ground Mounting Solar Kit

1).Production:We have a lot of production equipment, for large orders, we can complete production faster than many competitors.

2).Transportation:Our city has international seaport by Xiamen and international airport  by Gaoqi, goods can be easily transported to all parts of the world.

Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For Concrete Foundation Ground Mounting Brackets, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!

Our Packaging

Jesfer packing design engineer team care the safety of workers, both for hand-carrying and forklift processing.The small accessories of Solar Ground Mounting System are packed with 3 standard kinds of paper cartons, weight range from 5-25kg per box, 0.5-1.5tons per pallet. Longer components of Jesfer Solar Ground Mounting Rack like solar rail, solar structure beams are loaded on pallets with 2 to 8 pieces per bundle. The sizes of cartons and pallets are always calculated according to 20ft and 40ft containers to ship by sea and by truck inland.Optionally, bulk bundles of longer components like solar rails to be loaded in containers can save some space and logistic freight.
