Concrete Flat Roof Mounting System

Our Flat Concrete Roof Mounting can both  install on the ground and flat roof.It is widely used for commercial roof & residential roof solar mounting system which is very fast installation and save labor cost.




  • SHIPPING PORTXIAMEN
  • PRODUCT ORGINXIAMEN CHINA
  • BRANDXHFSOLAR
  • SURFACEANODIZED
  • MAX WIND SPEED60m/s
  • TILT ANGLEAS PER ROOF
  • APPLICATIONROOF & GROUND
  • SNOW LOAD 1.4KN/m²
  • COLORSILVER
  • DELIVERY7-30 DAYS
  • SERVICE LIFE20-25 YEARS
  • WARRANTY10 YEARS
  • PAYMENT TT/LC
  • MATERIALAI6005 +SUS304 +STEEL

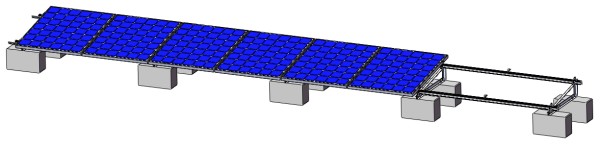

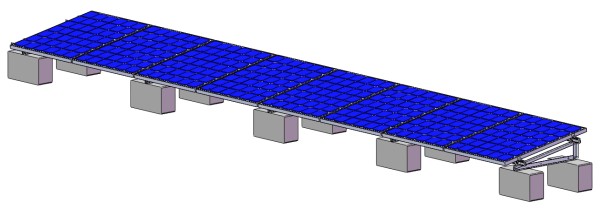

Solar flat roof mounting systemis a triangle mounting system with a fastnessconcrete foundation.

The triangle solar brackets are made of aluminum alloy, the fasten parts are stainless bolts and nuts in material.

All parts can be pre-fabricated into only one module. The installation is extremely labor-saving and low-cost, No need adjusting, no sawing in the field. Just need a cordless screw-deliver.

The tilt angle is 15 degree for flat roof solar mounting bracket, other fixed angle: 5 degree increments can be customized.
Orientation for glass PV module array for triangle support bracket is portrait.

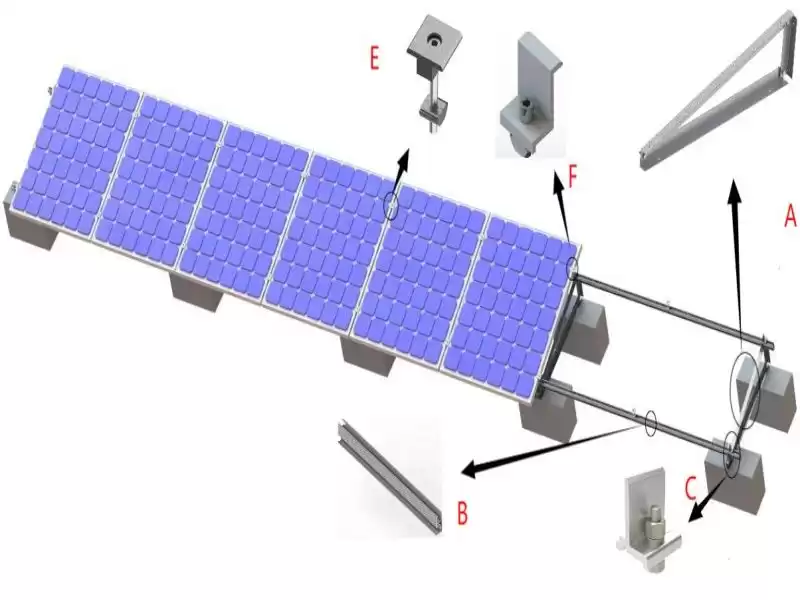

Ground and Roof Flat Concrete Roof Mounting System

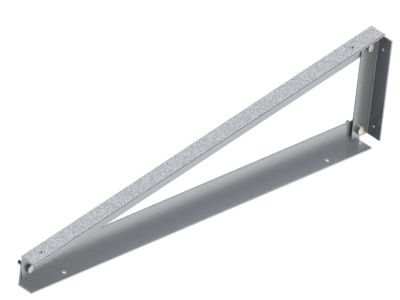

L bar tripod bracket AI6005-T5 & SUS304

A


XHF-FTR
L bar tripod bracket
AI6005-T5 & SUS304

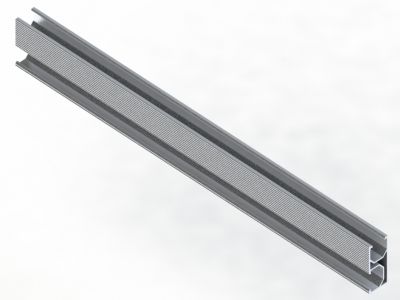

XHF-R02 Extruded rail profile AI6005-T5-T5

B


XHF-R02
Extruded rail profile
AI6005-T5-T5

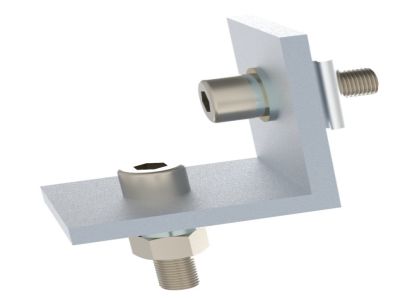

XHF-BR-03, rail clamp AI6005-T5 & SUS304

C


XHF-BR-03, rail clamp
AI6005-T5 & SUS304

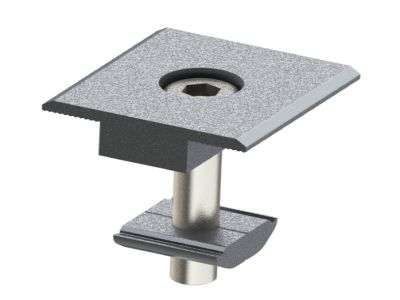

XHF-IC-40, mid clamp AI6005-T5 & SUS304

D


XHF-IC-40, mid clamp
AI6005-T5 & SUS304

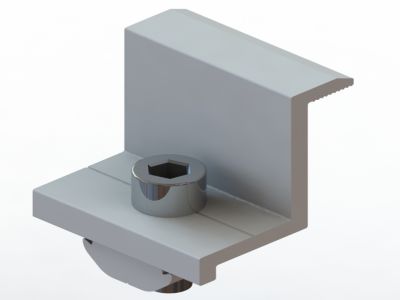

XHF-SC-40, end clamp AI6005-T5 & SUS304

E


XHF-SC-40, end clamp
AI6005-T5 & SUS304




Parameters
Strong point
Light Weight, Convenient and Durable
Application
Ground and Roof
Tilt Angle
Customized
Max Building Height
Up to 20m(~65ft).
Max Wind Speed
60 m/s
Snow Load
1.4 KN/m2
Material
Aluminum 6005-T5 & Stainless Steel 304
Warranty
10 years warranty; 25 years service life.


Flat Concrete Roof Mounting system is a triangle mounting system with a fastness concrete foundation.


Fast installation, low cost and labor saving;
Modular design and factory pre assembly;
Flexible layout, suitable for complex roofs
Applicable to large and small solar energy projects

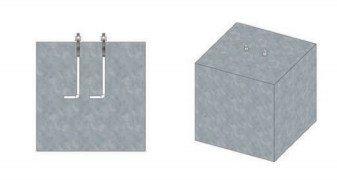

Step 1: Fix tripod bracket on concrete block or flat roof.

Step 2: Fix solar rail on tripod bracket, locking by rail clamp.




Step 3: Put solar panels on rail and fix them with mid clamp or end clamp until finish.


Finished

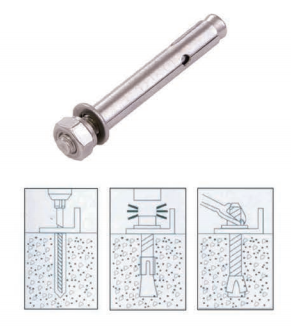

by expansion bolt Solution 2: by ground anchor

Solution 1: by expansion bolt Solution 2: by ground anchor
