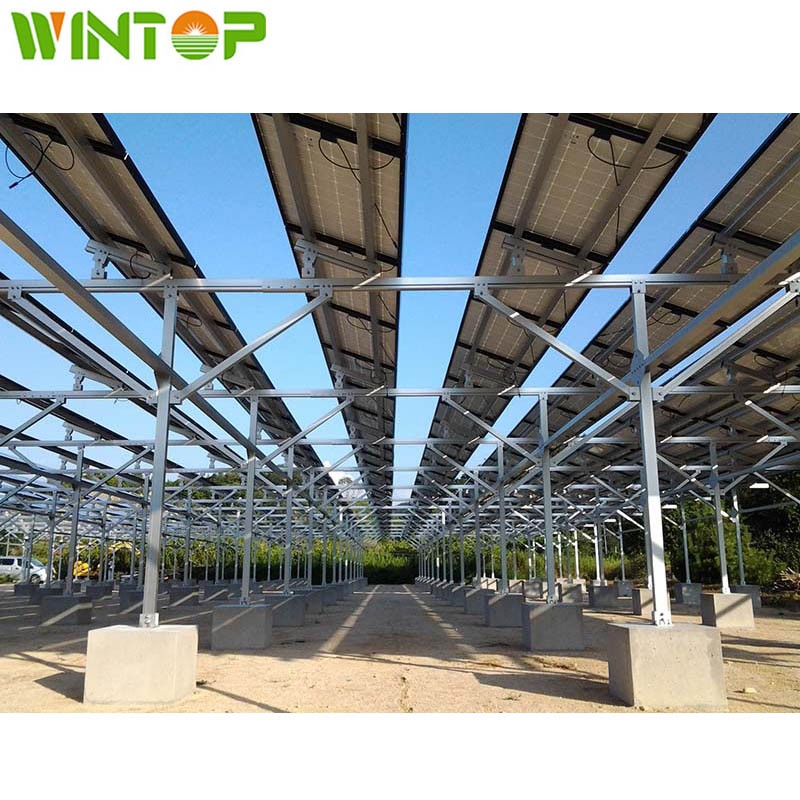

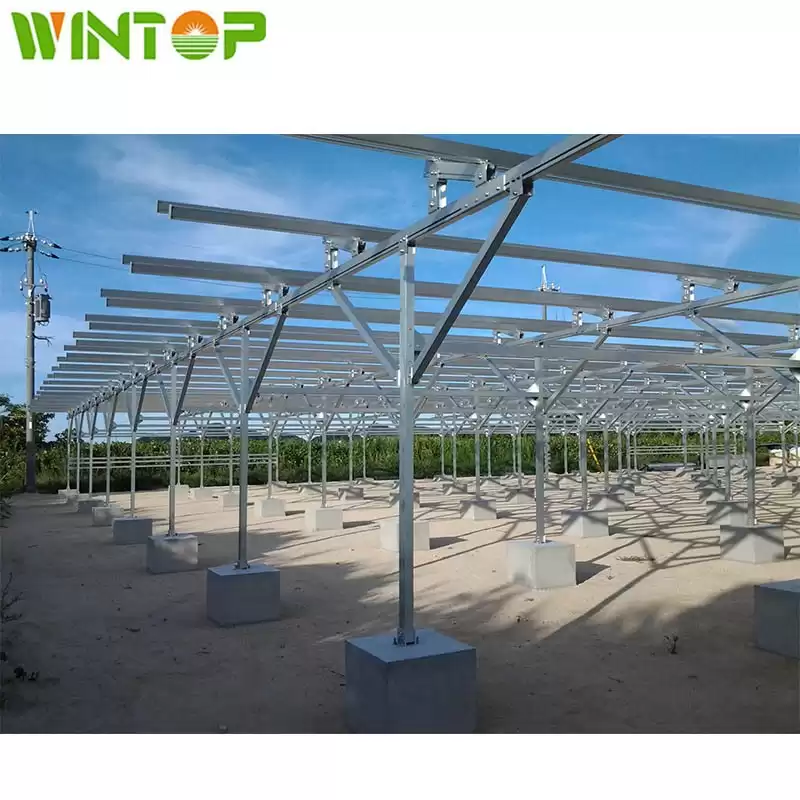

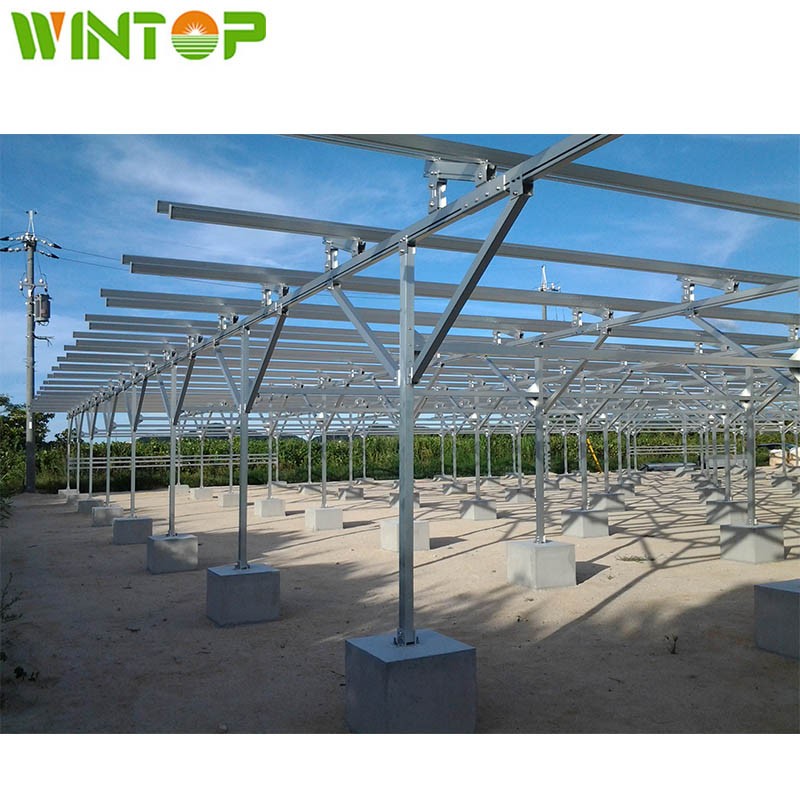

Concrete Foundation Solar Agriculture Greenhouse Mounting System
Product Description
Compared with the construction of centralized large-scale photovoltaic ground power stations, photovoltaic agricultural science and technology greenhouse projects have many advantages. First, the photovoltaic agricultural greenhouse uses the roof of the agricultural greenhouse, which does not occupy the ground and does not change the nature of land use, so it can save land resources; secondly, by setting up solar panels with different light transmittance on the agricultural greenhouse, It can meet the lighting needs of different crops. It can grow various high value-added crops such as organic agricultural products and valuable seedlings. It can also realize off-season planting and high-quality planting. Finally, the use of roof power generation can not only meet the electricity demand of agricultural greenhouses, but also Connect the remaining electricity to the grid to increase revenue.
Technical Parameters
|
Installation location
|
Ground
|
|
Installation foundation
|
Concrete foundation and ground screw foundation
|
|
Installation angle
|
Up to request
|
|
Wind load
|
60m/s (216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Distance from module lowest point to the ground
|
Up to request
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Light weight, easy transportation & installation and safe construction;
-
The surface is treated by oxidation, high corrosion resistance and good stability;
-
Suitable for various designs and solutions;
-
The maxiumum pre-assembly, save contruction time and labor cost;
-
Suitable for sandy soil;
-
More than 50% transmittance which is conducive to crop growth.

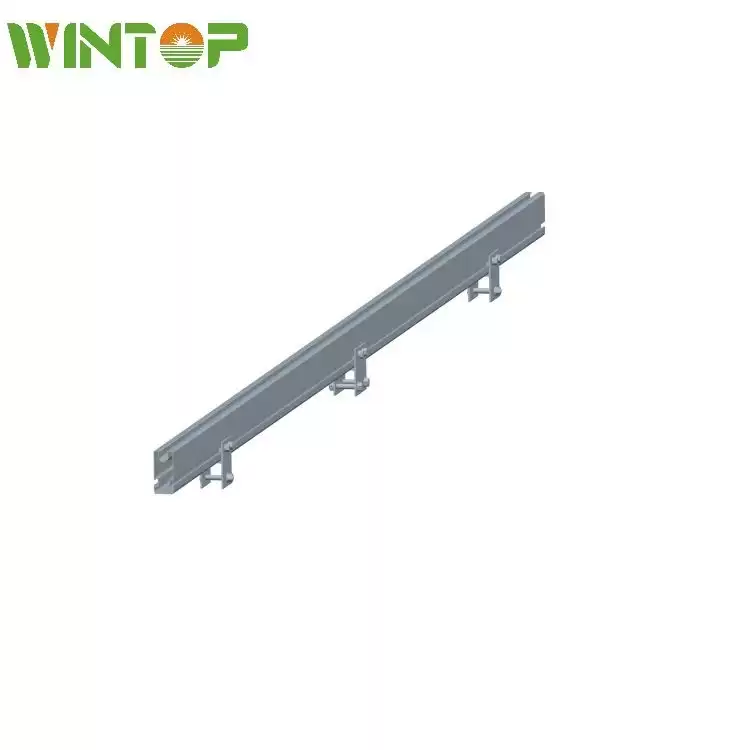

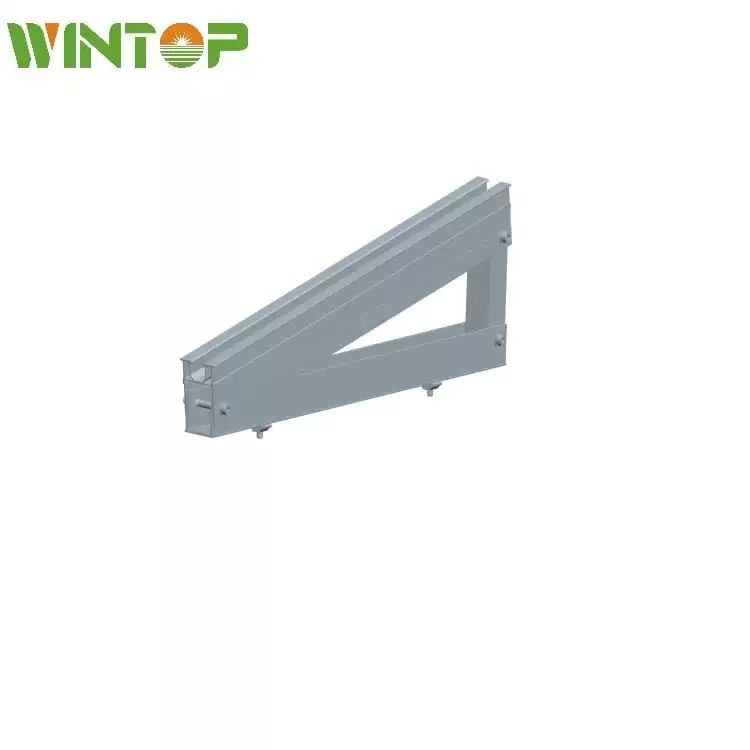

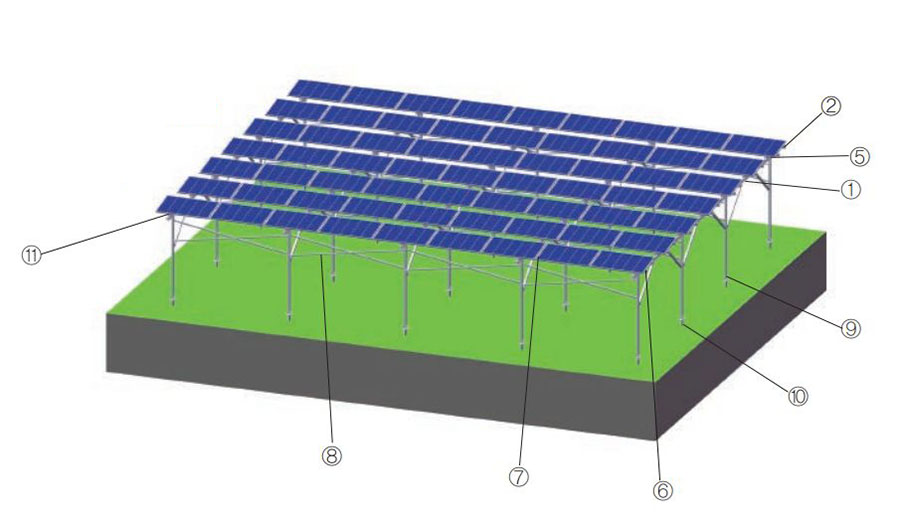

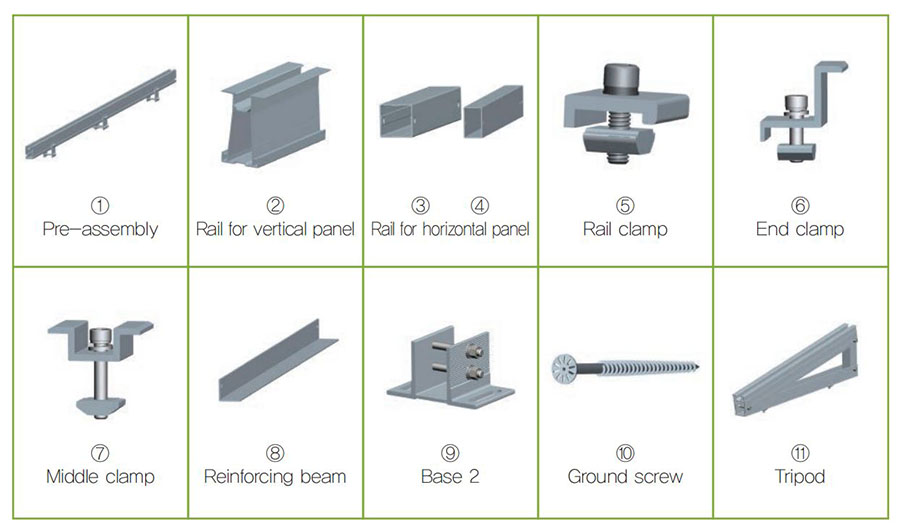

Components

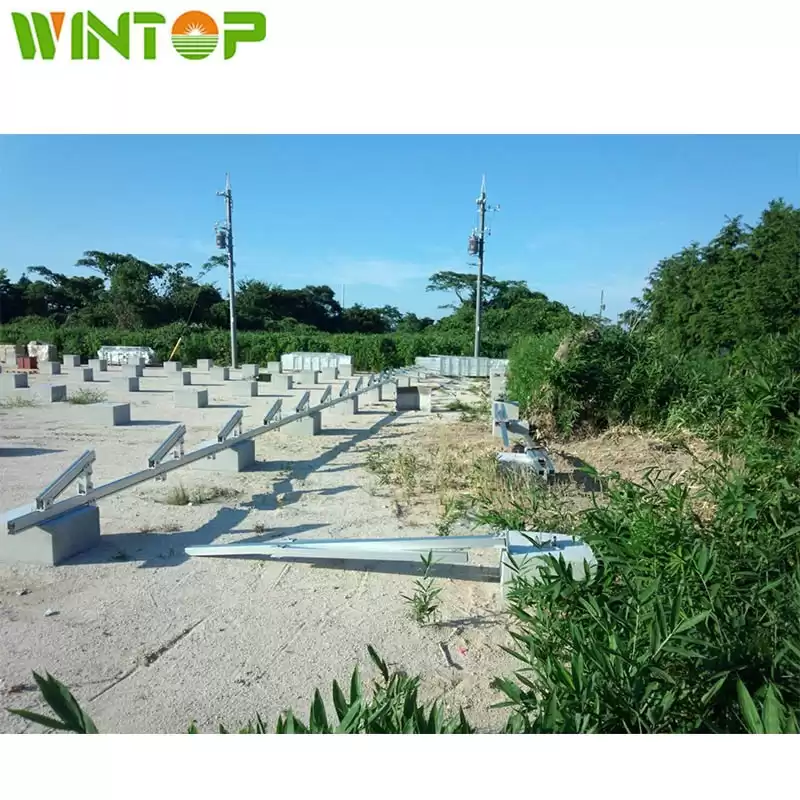

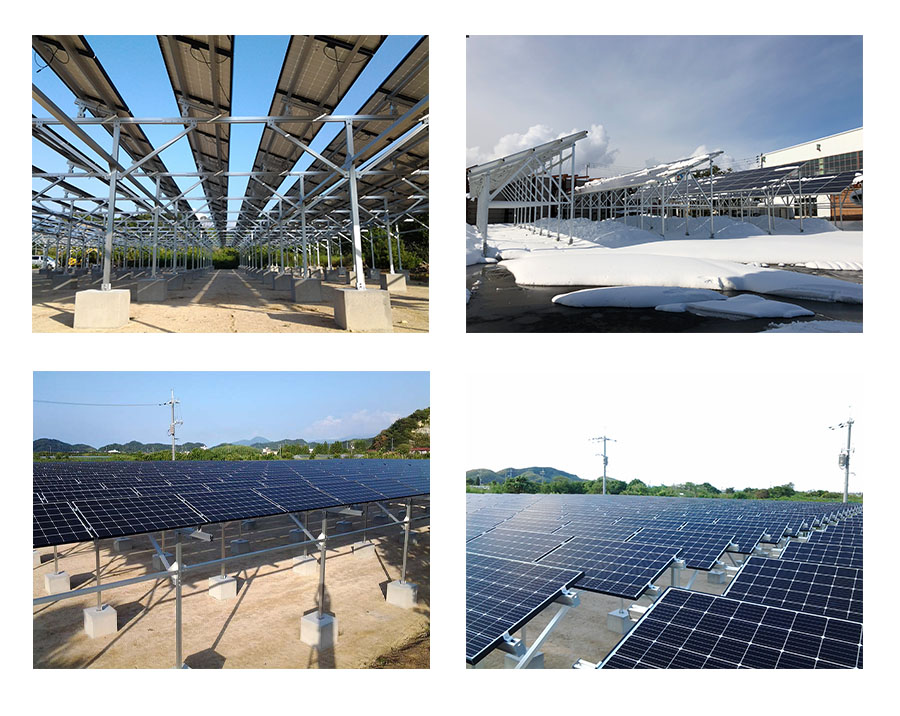

Project
Certificate
FAQ
(1) How many kinds of your structures?
At present,N shape,W shape,A shape,2V shape and T shape are offered.If you need more info about them,please feel free to send inquiry here.
(2) What’s your difference with other suppliers?
The biggest difference between us is that although we are small scale, we offer the best service that we can do for customers,such as, we will oxidized each sides of products.
(3) Why we cannot find your website on the internet?
Because this is a new web.If you turn more pages,I believe you will see it and we are upgrading our web too so that it could be listed on the first page.
