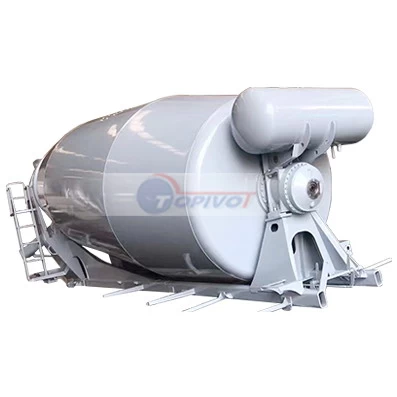

Concrete Mixer Upper Assembly 8 CBM
Overall parameters
|
Model
|
8m3 concrete mixer
|
Weight of mixer
|
16000kg
|
Dimension of upper parts
|
Customized
|
Drum specification
|
Geometric volume
|
13.4m3
|
|
Length of mixer upper parts
|
6200mm
|
|
Mixing volume
|
8m3
|
|
Drum rotations
|
0-16rmp
|
|
Feeding speed
|
>3.0m3/min
|
|
Diameter
|
2300mm
|
|
Mixing drum angle
|
15°
|
|
Quantity of roller
|
2pcs
|
|
Filling ratio
|
60%
|
|
Discharge speed
|
>2.0m3/min
|
Hydraulic system
|
Reducer
|
PMB6.5SP
|
|
Oil pump
|
Sauer90 75cc
|
|
Motor
|
Sauer90 75cc
|
|
Hydraulic circuit
|
Close loop
|
Water supply system
|
Water tank capacity
|
450L
|
|
Water pressure
|
3.8 bar
|
|
Water supply mode
|
Pneumatic
|
Control system
|
Control mode
|
Mechanical control
|
