Overview

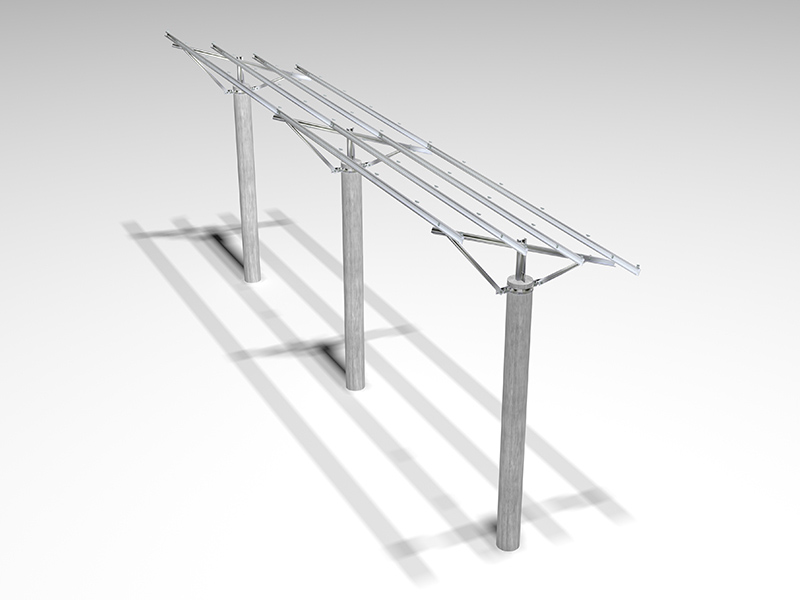

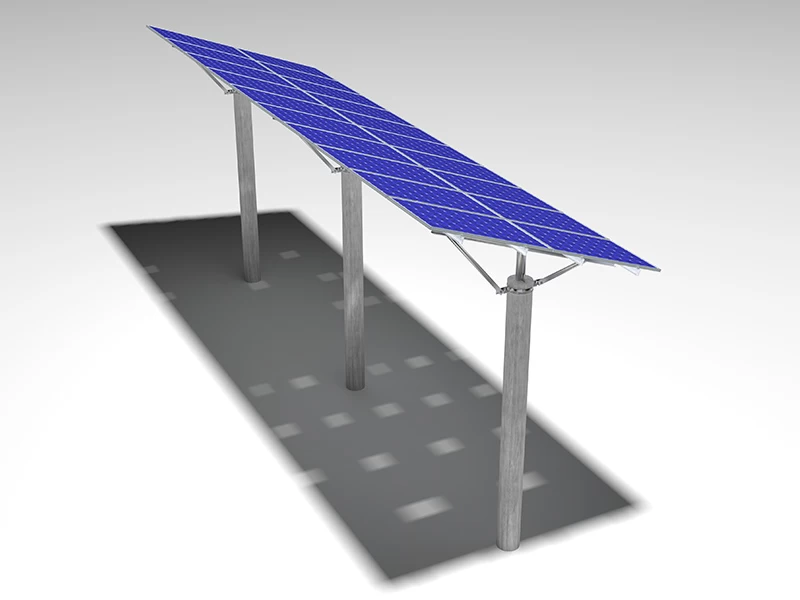

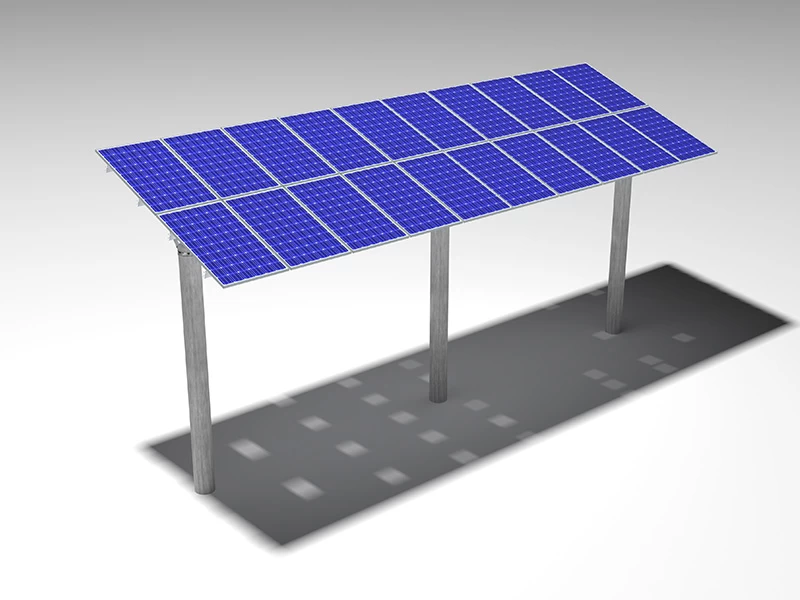

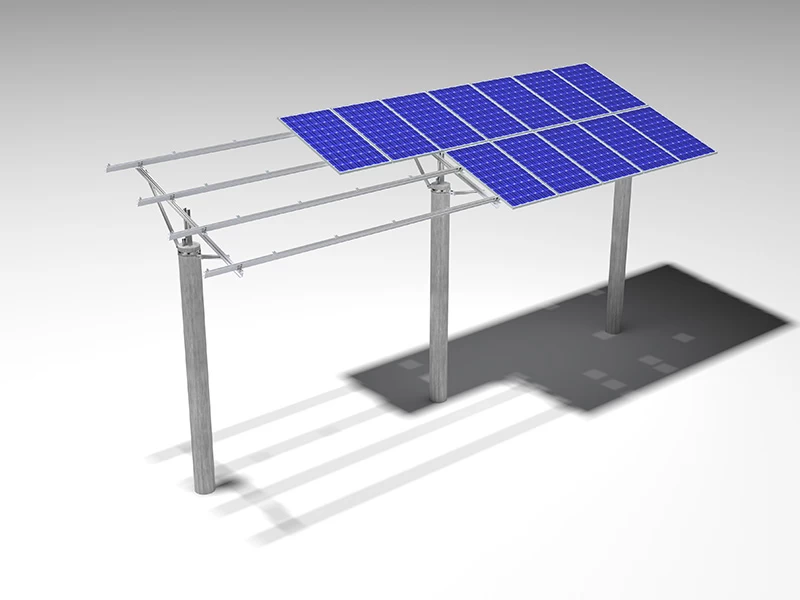

MRac Concrete Pile High Elevation Mounting System is applied to
fish Pond, flood area and sandy land solar PV projects. Main
components are made of hot-dip galvanized steel, with good
performance of structure strength, stability and anti-corrosion,
compatible with varied solar modules. Unique piles and structure
design save installation time and cost.
Features
1.Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.
2.Dual-Use of Land or Utilize Waste Land Improve the Economic
Benefit
Install solar projects above the fishpond, achieving the dual-use
of land to improve the economic benefit. This system can utilize
waste land like flood area or sandy area to save land resources.
3.Quick Modular Kit Fixation
Most of the components are designed as modular kit with
anodized aluminum to further ensure easy and fast construction
on site.
|
Technical Parameter
|
|
Installation Site
|
Ponds, Reservoirs
|
|
Foundation
|
Pre-stressed Concrete Pile
|
|
Tilt Angle
|
0-45°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.4KN/㎡
|
|
Ground Clearance
|
400-1200mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Steel Q235B(Hot-Dip Galvanized)
|
|
Fastener
|
SUS304 &Hot-Dip Galvanized &Zinc-Nickel Alloy Electroplated Stee
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
