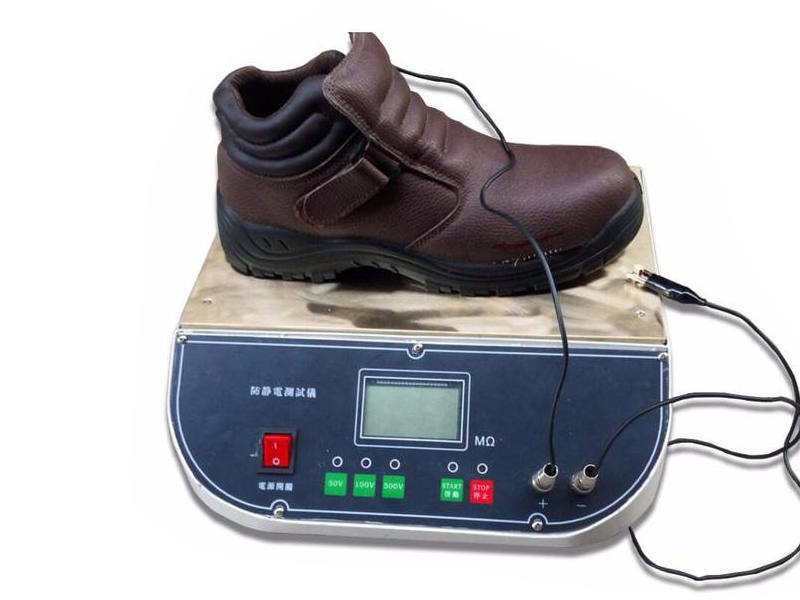

Conductive Footwear Electrical Resistance Tester
Conductive Footwear Electrical Resistance Tester is used to determine the electrical resistance of anti-static footwear under specified conditions.
Test Standards
ANS-Z41 section 3; CSA-Z195 section 5.6 ; GB/T20991 section 5.10
EN ISO 20344 section 5.10, EN344-1 section 5.7; AS/NZS 2210.2 section 5.10
ASTM F2412 section 8, ASTM F2413 section 5.4
Parameters
Model AT-F3024
Output voltage range DC 50V/100V/250V/500V
Measuring range 100KΩ-1,999MΩ
Test accuracy ±1%(<100 MΩ)
±2%(<100 MΩ<X<2,000MΩ)
Testing environment 0-40℃, humidity: 20%-90%RH
Test time 0.3-9,999s
If you are looking for more lab testing equipment, please feel free to contact .
