Conductive Graphene Paste for Lithium Battery，
supercapacitor,nickel hydrogen battery
Product Specification
This product is based on graphene high conductive oily battery slurry,compared with similar products, the technical advantages is that it does not included metal ions, which can be widely used in the conductive additives of battery slurry, increase to a high charging and discharging capacity of the battery.
1. Lithium ion battery and nickel metal hydride battery - as the high conductivity ingredient in the battery.
2. Supercapacitors - as a conductive agent in the electrode production of supercapacitors.
3. Lead-acid batteries, solar cells, semiconductors
4.Other conductive additives industry.
|
Ingredient
|
Content
|
|
graphene
|
5%wt
|
|
Graphene sheet diameter
|
1-2um
|
|
Graphene thickness
|
1-5nm
|
|
Conductivity improver
|
0.5wt%
|
|
Dispersant
|
0.5wt%
|
|
Solvent (oiliness)
|
94wt%
|
|
Viscosity
|
300-1000mPas
|
|
Colour
|
Black viscous liquid
|
|
Remark
|
Oily solvent is NMP
|

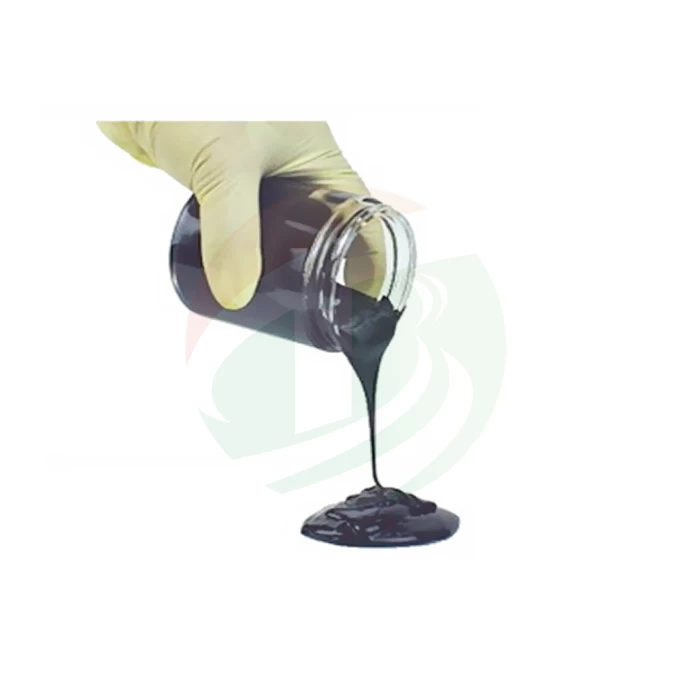

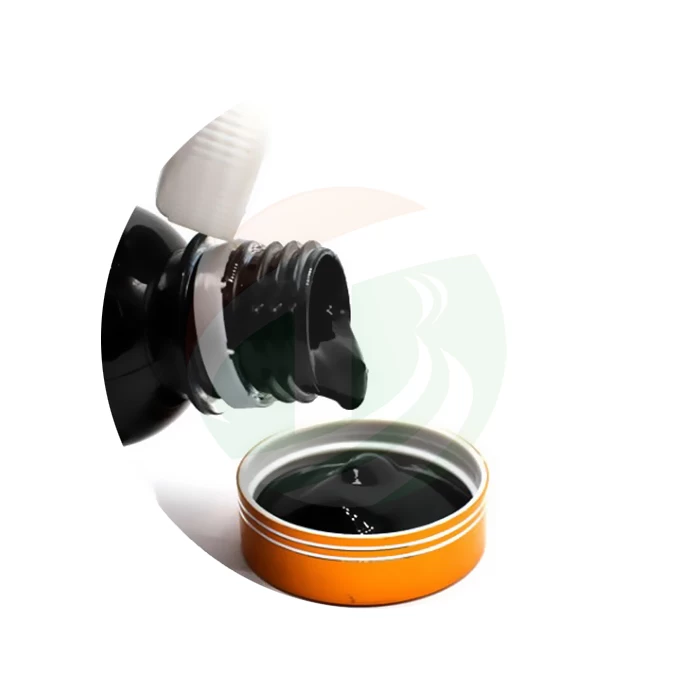

Product Images
Function contrast :

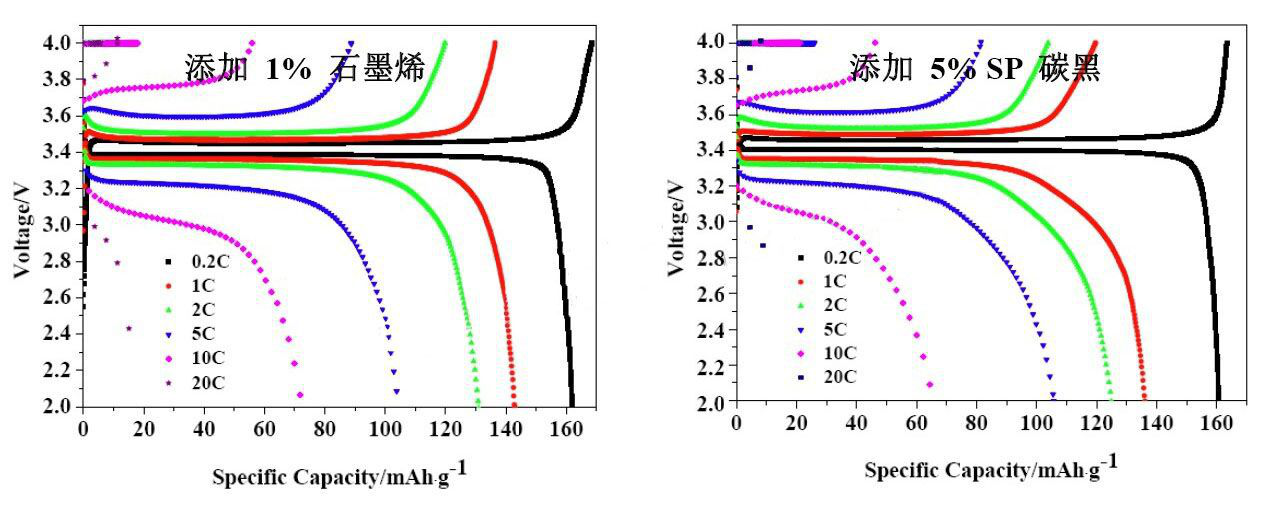

A comparison diagram of graphene and carbon black in lithium battery
Product Packing
