Congo beiben 2534 camions benne

Congo beiben 2534 camions benne , 6*4 driving system, weichai WP10.340E diesel engine , fast 9 shift transmission, 3800+1450 mm wheelbase, 12.00R20 tyre, beiben dump truck cargo box 20 CBM capacity.



Beiben 2534  camions benne

We are best beiben 2529 camions benne, 2534 camions benne, 2538 camions benne, 2542 camions benne manufacturer in china, supply the best quality and bottom price for north benz camions benne. More than 15 years experience in producing beiben 30 T camions benne, 40 T camions benne, 50 T camions benne . No 1 supplier for CONGO pointe noire customer for beiben camions bennes.

You can watch us on youtube: https://youtu.be/KyshwIJ7iYY,https://youtu.be/t4N_hlLYj18

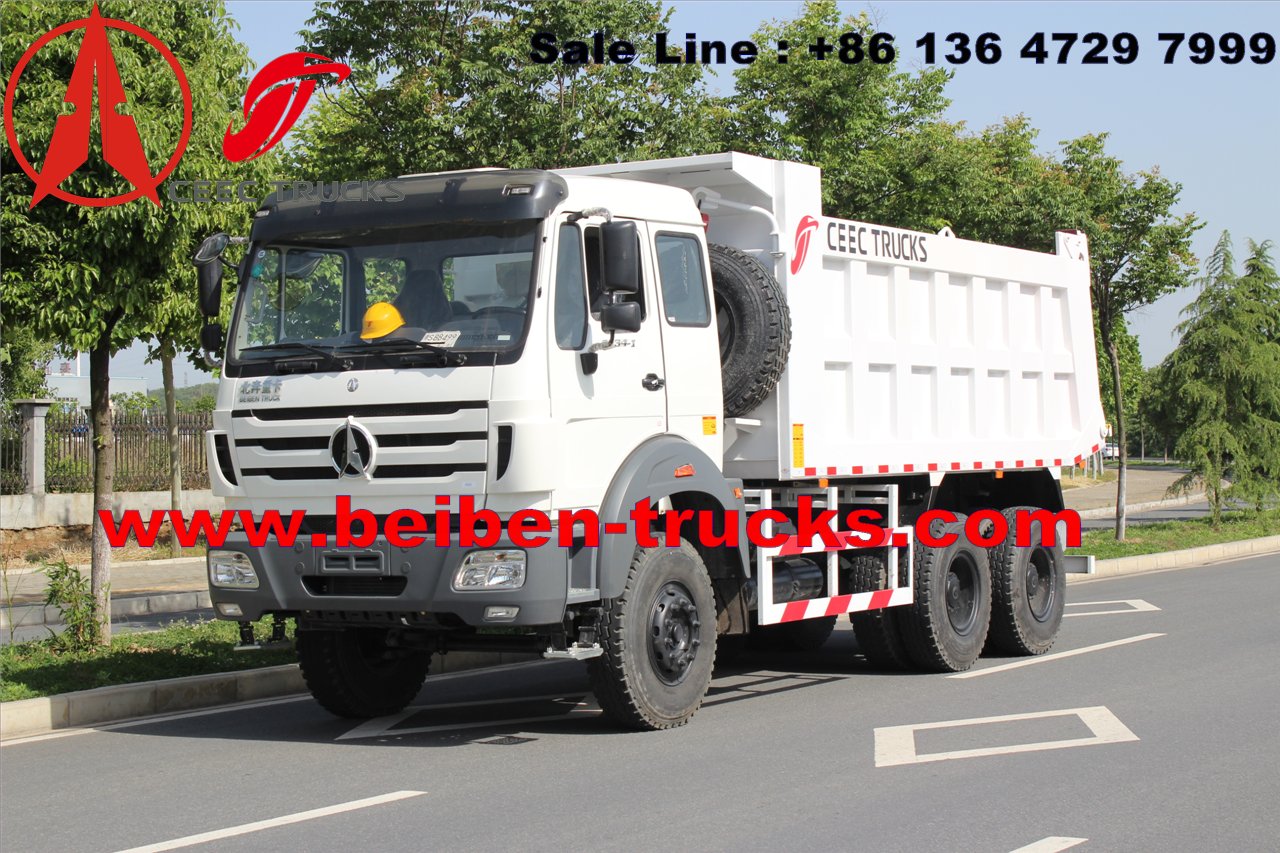

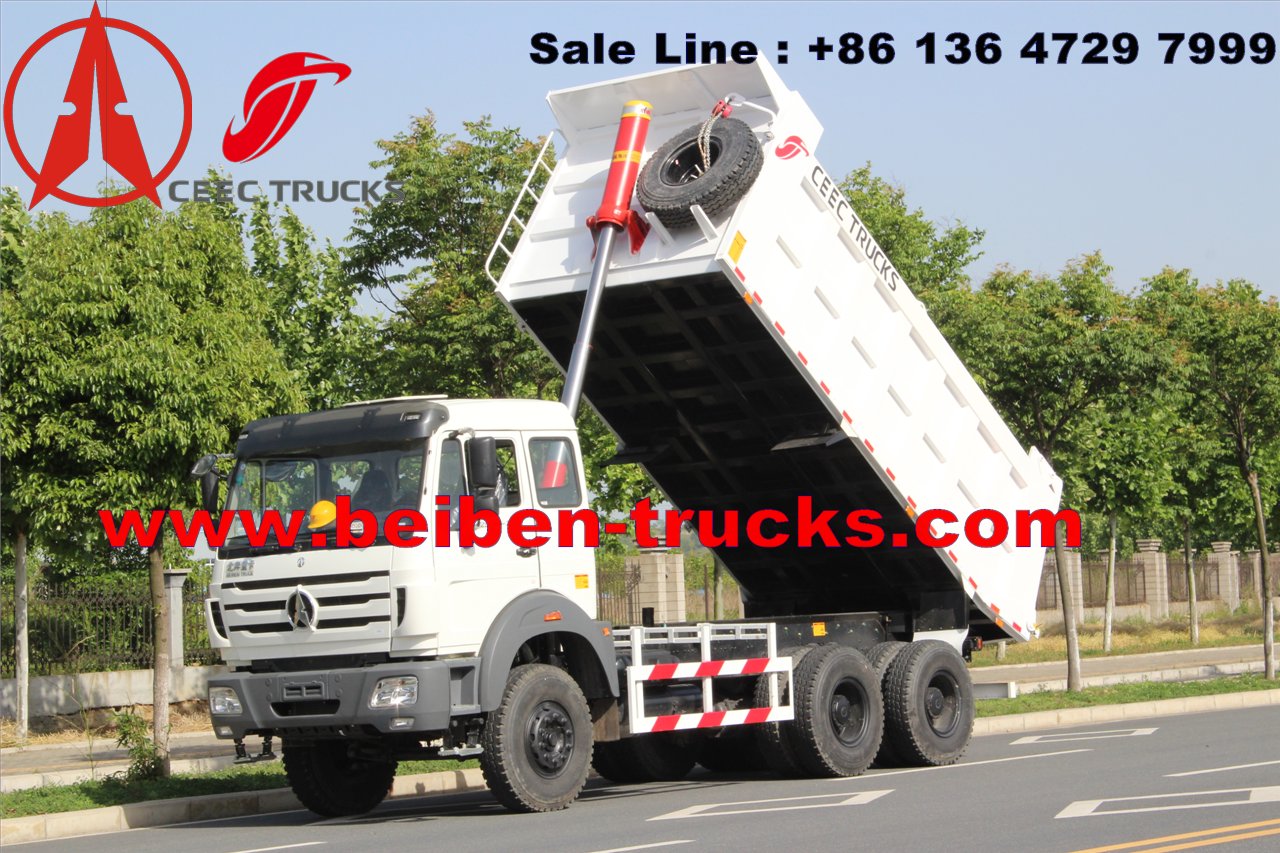

Beiben 2534 camions benne

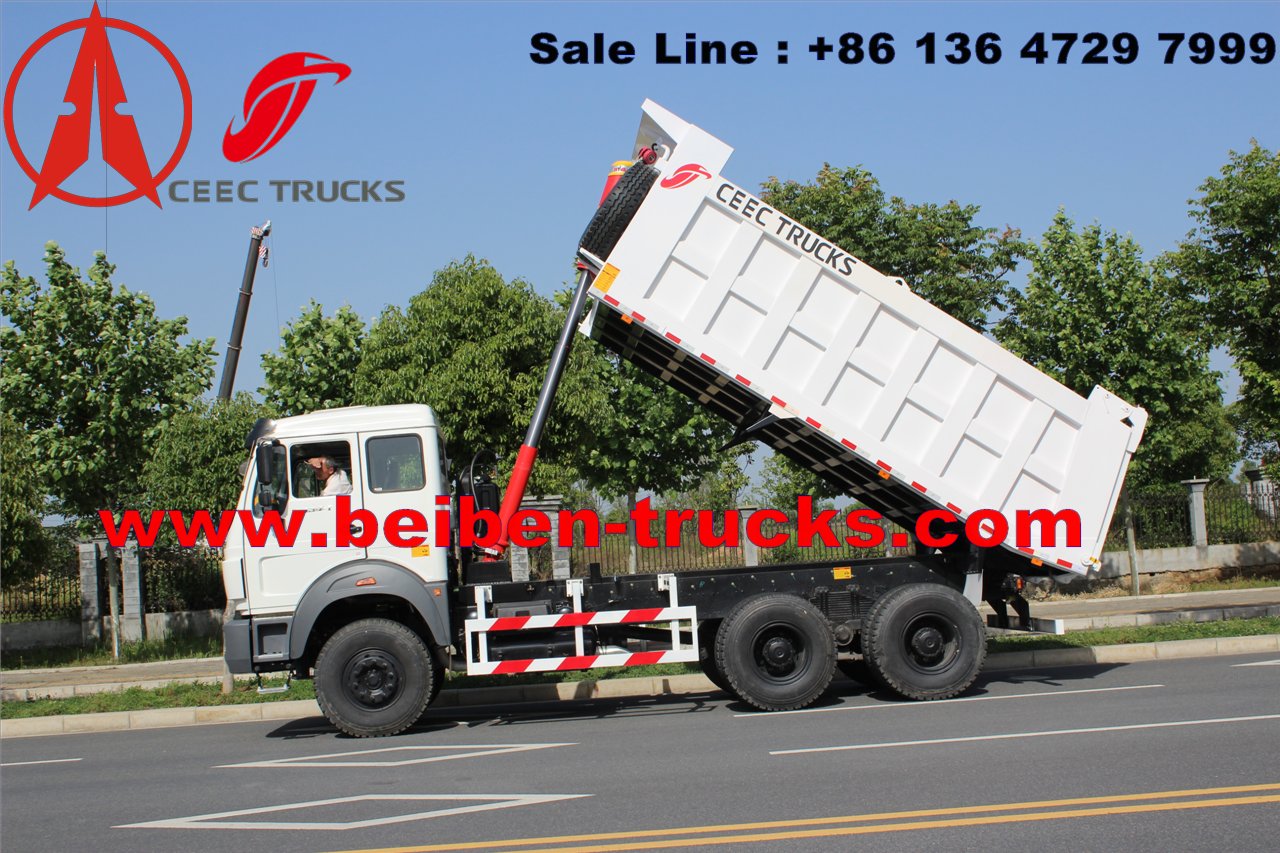

Beiben 6*4 driving system camions benne

Beiben 2534 camions benne





CAMION BENNE BEIBEN

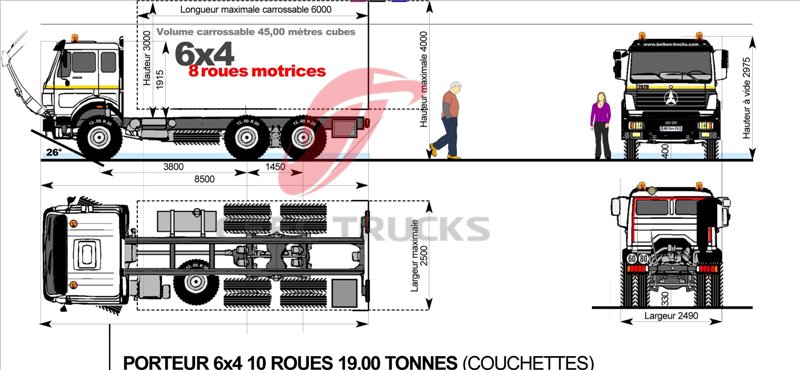

Wheel base  (mm)

3800+1450

Curb weight kg

12120

Upper body Dimension(Lx W x H)

5400×2300×1200  sand body

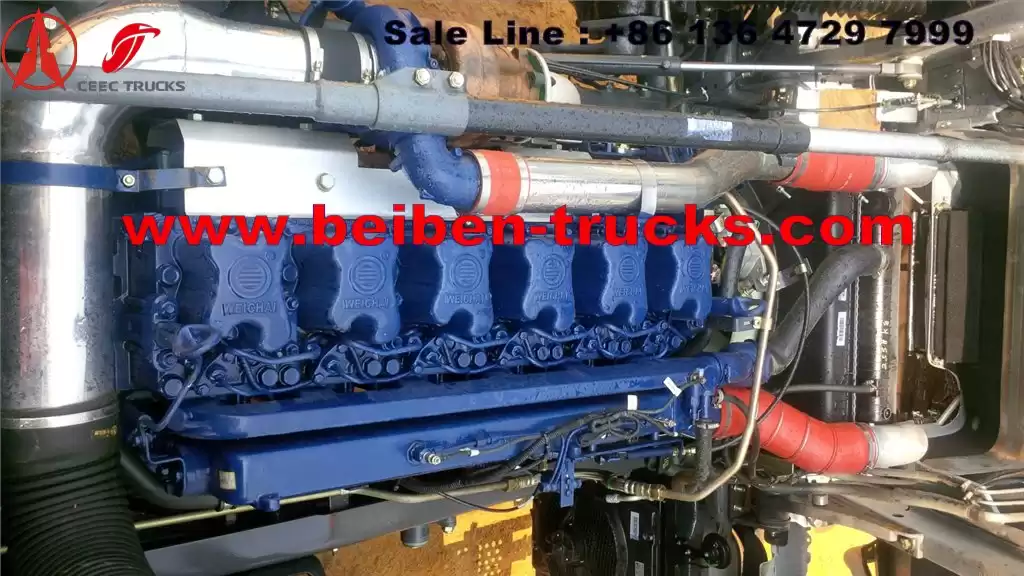

Engine



Model

WD10.340 ,water-cooled,four strokes,6 cylinders straight in line,turbocharged

Power, max   kw/rpm

206/2200

Max torque(Nm/rpm)

1160/1100-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF 5S-112GP (With 9 forward gears,1 reverse gear; With license from ZF Germany)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

Radial 12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.Can be tipped forwardly; Inner A/C

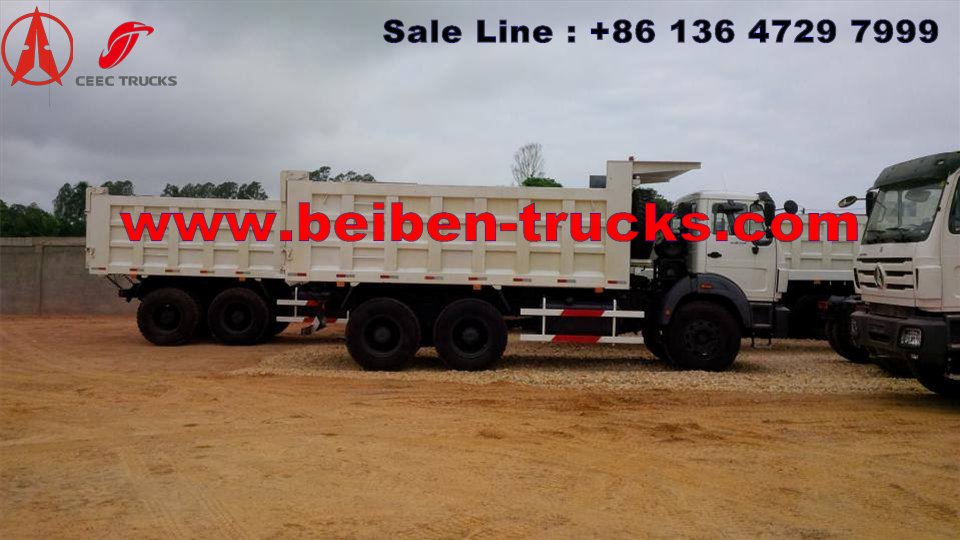

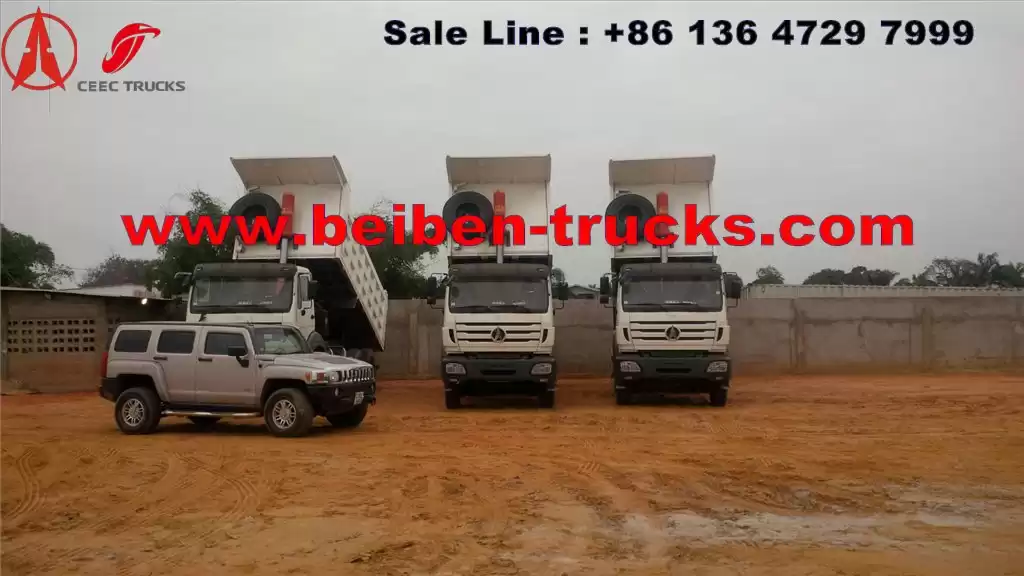

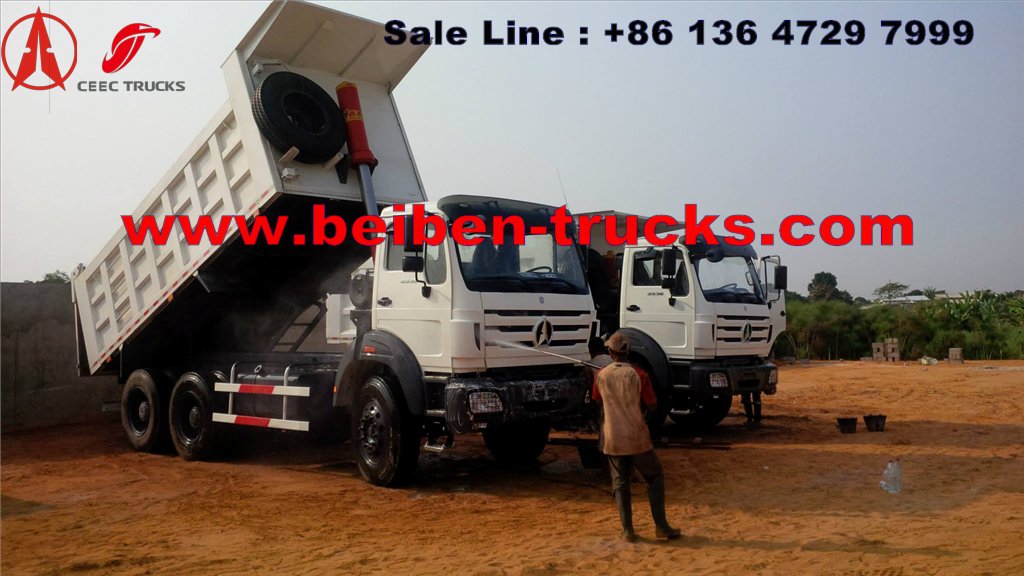

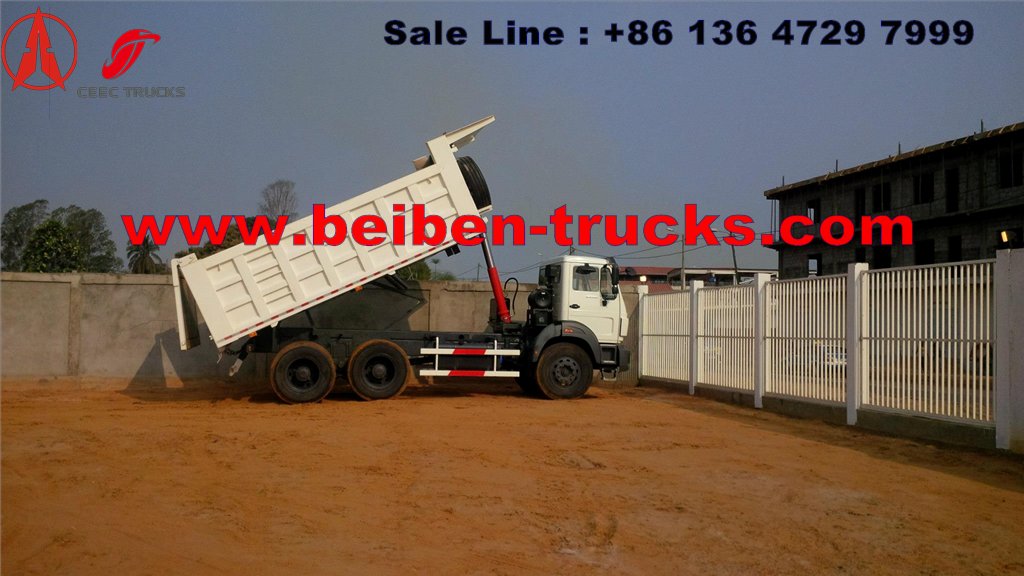

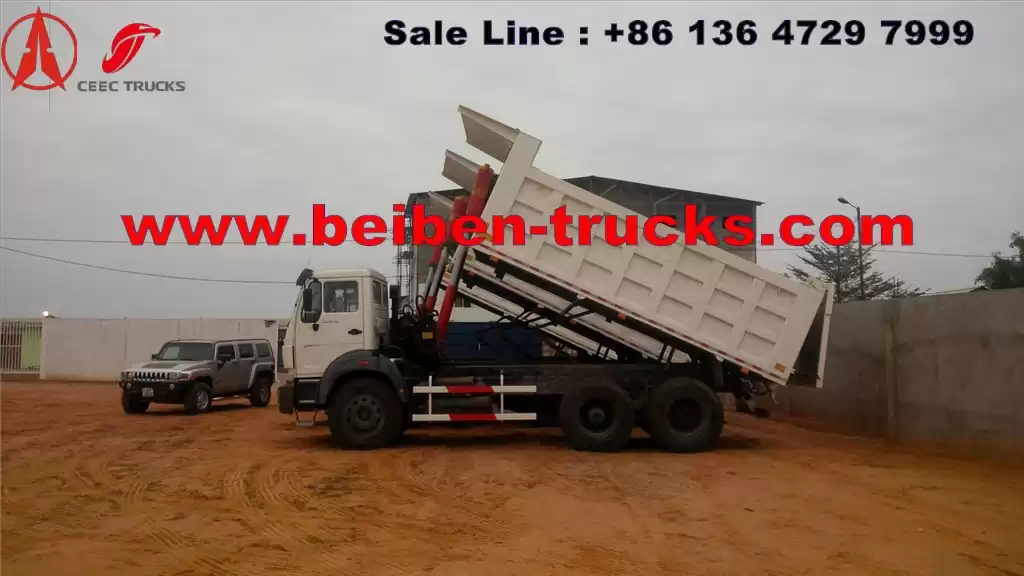

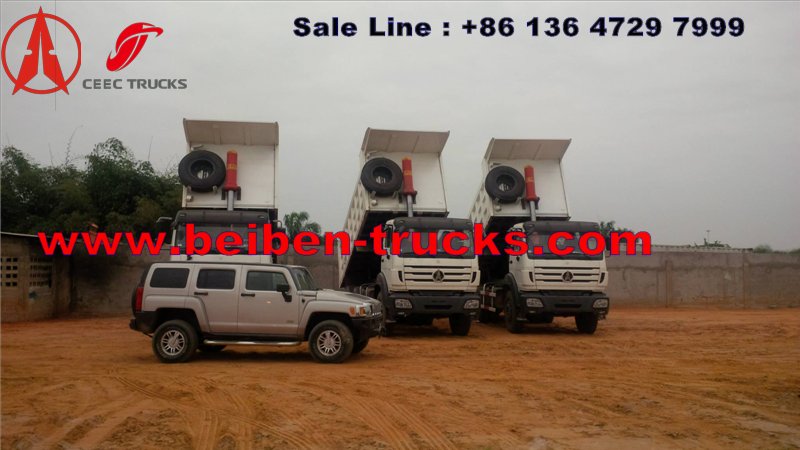

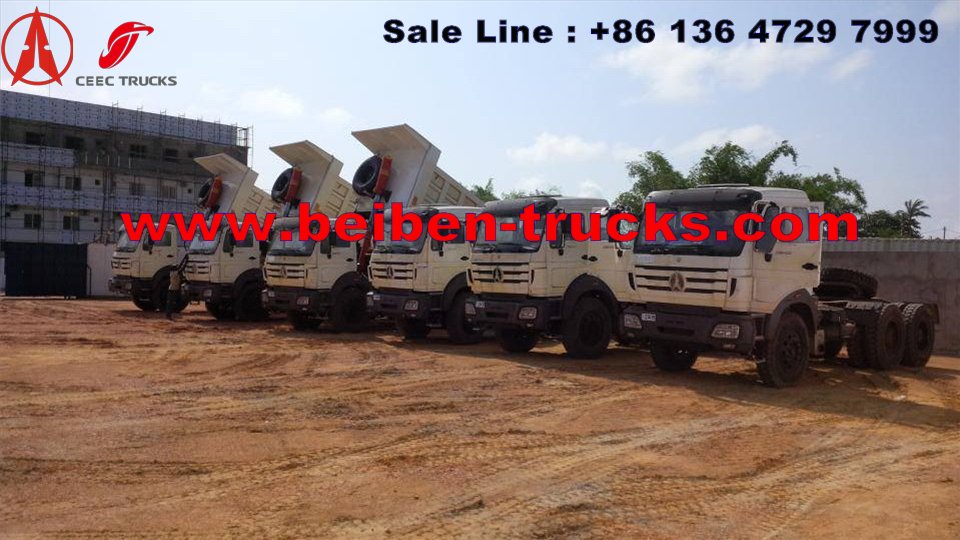

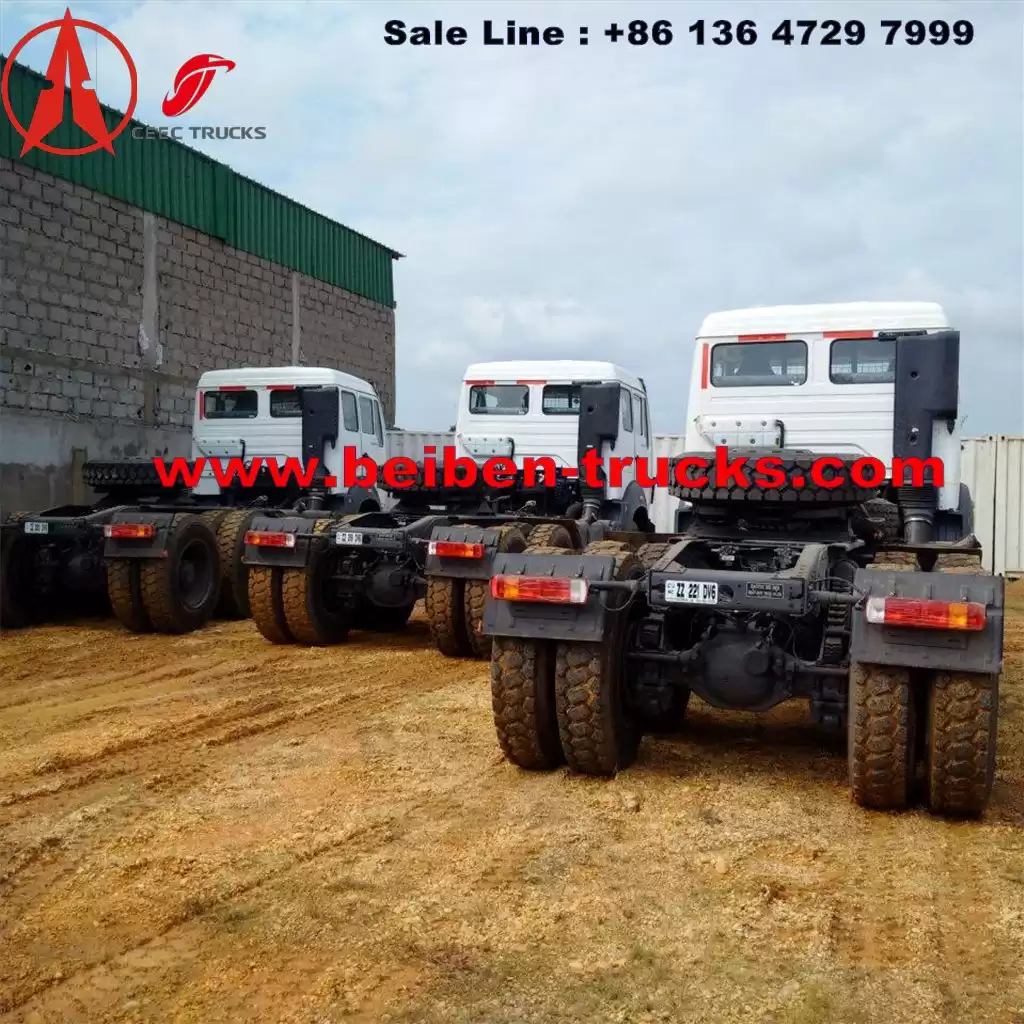

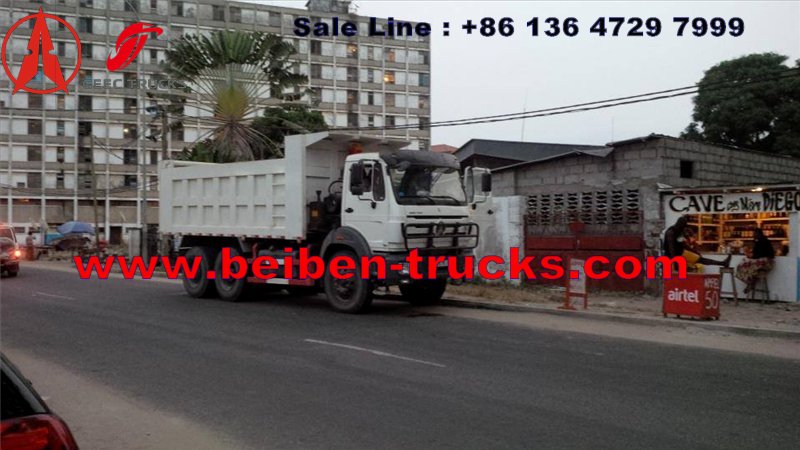

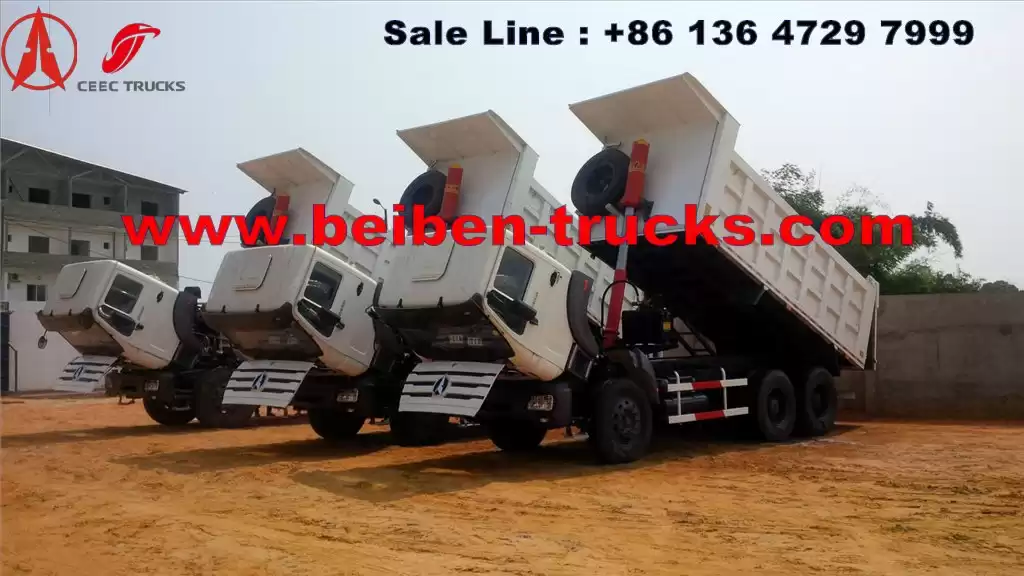

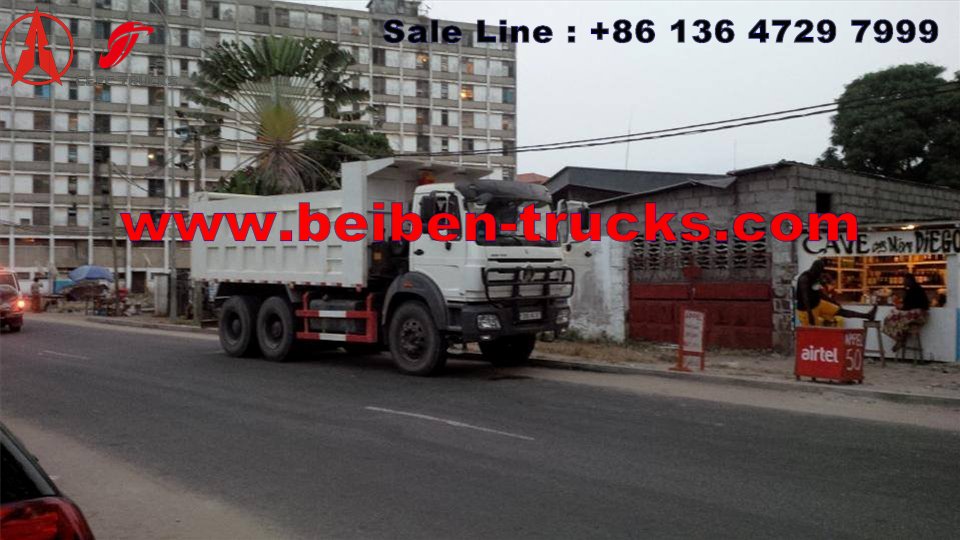

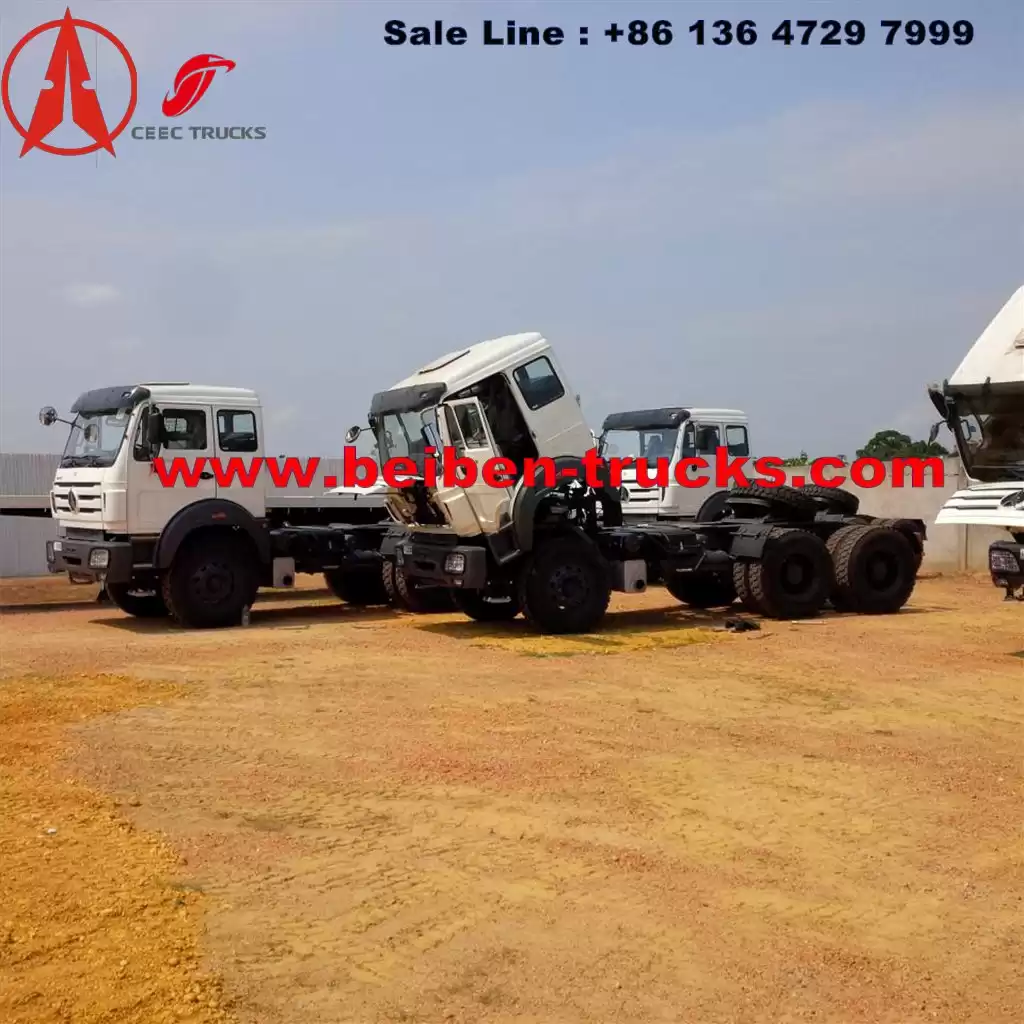

congo beiben camions benne

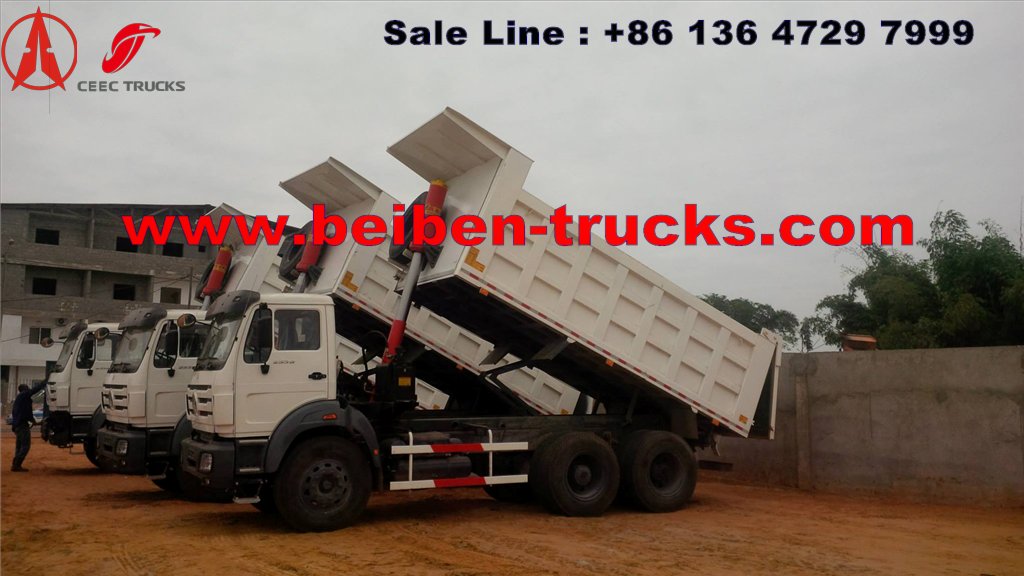

congo beiben camions benne

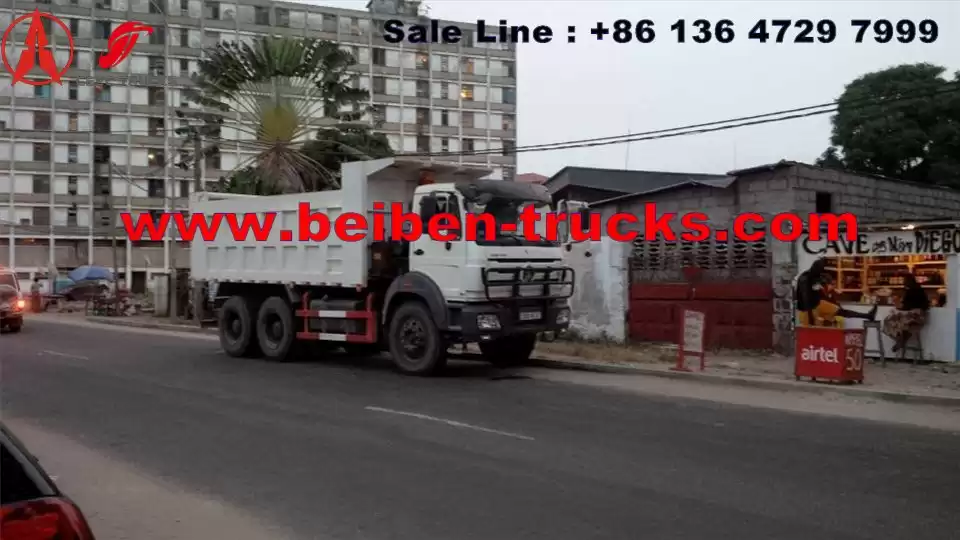

Best supplier of beiben 6*4 driving camions benne in CONGO, POINTE NOIRE SEAPORT.

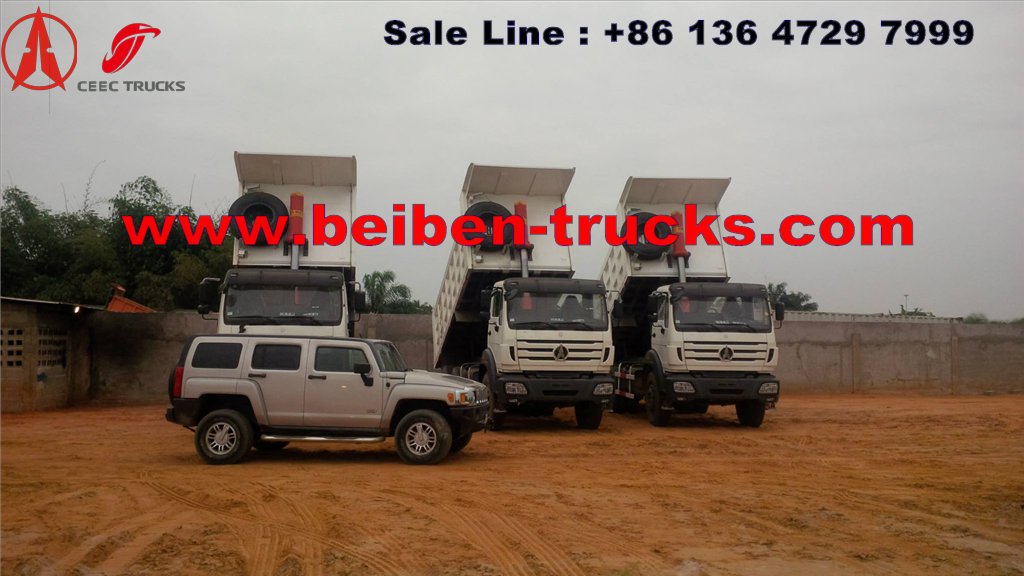

congo beiben camions benne

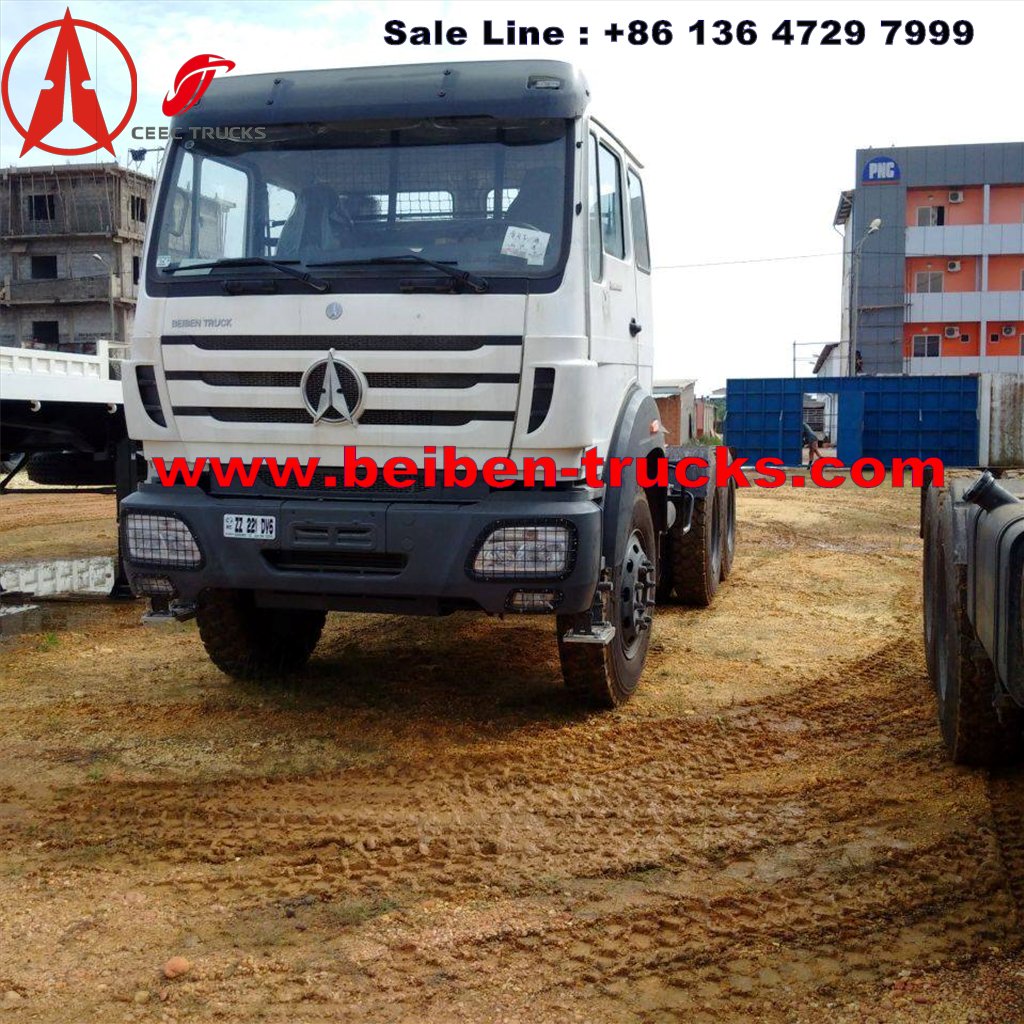

congo beiben camions benne

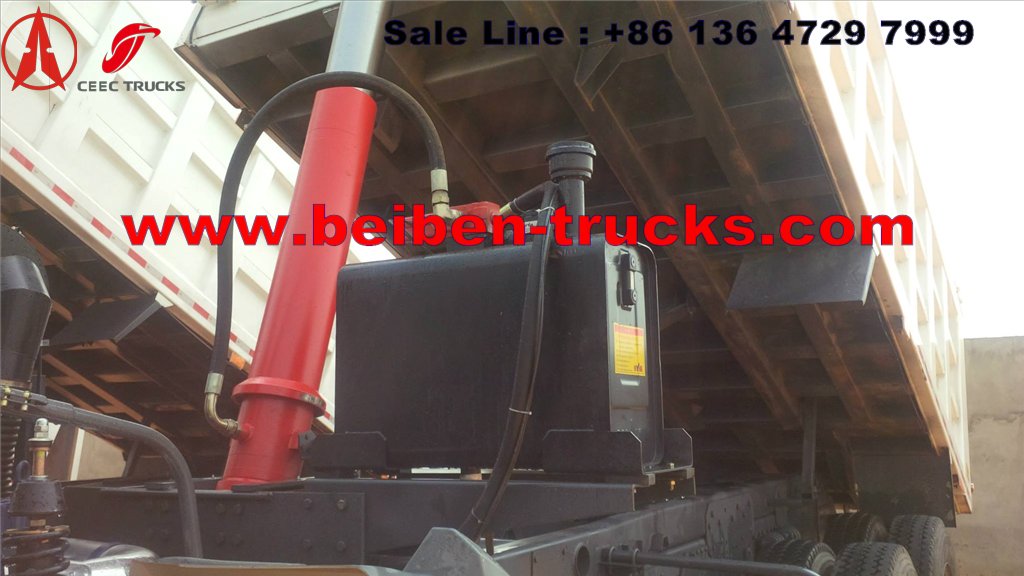

congo beiben camions benne
