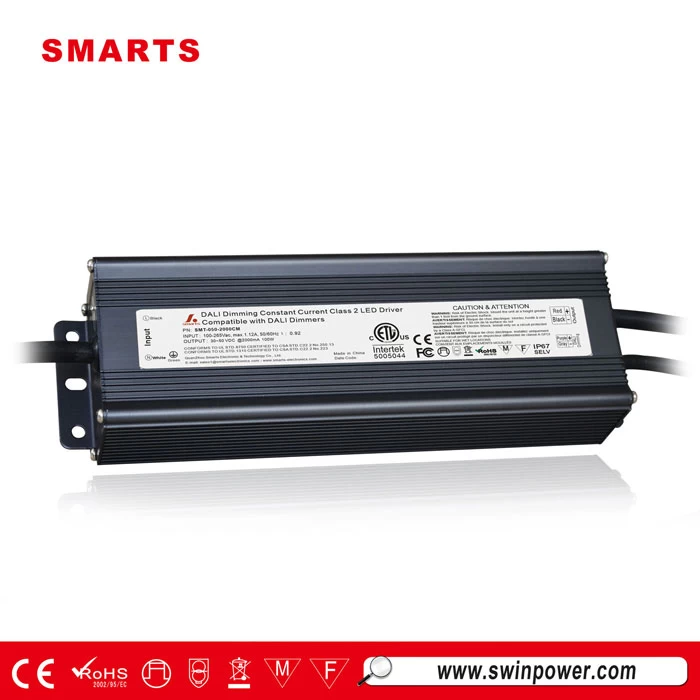

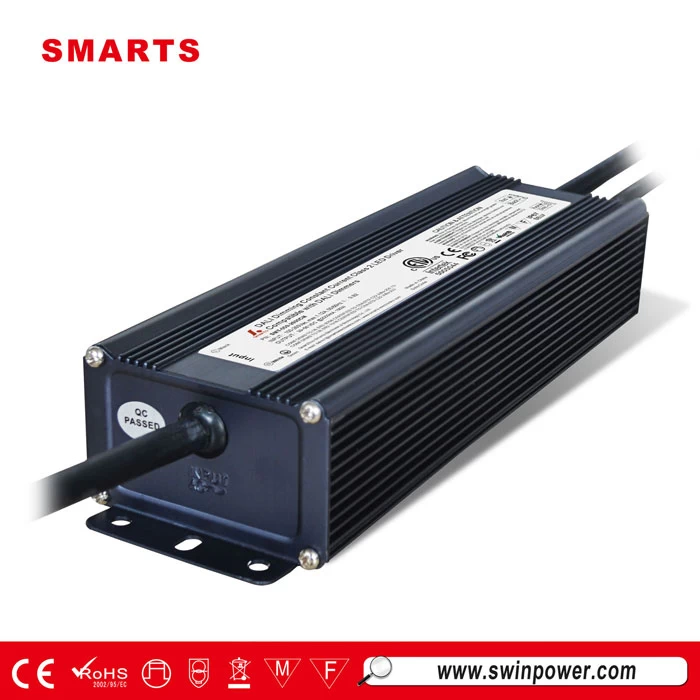

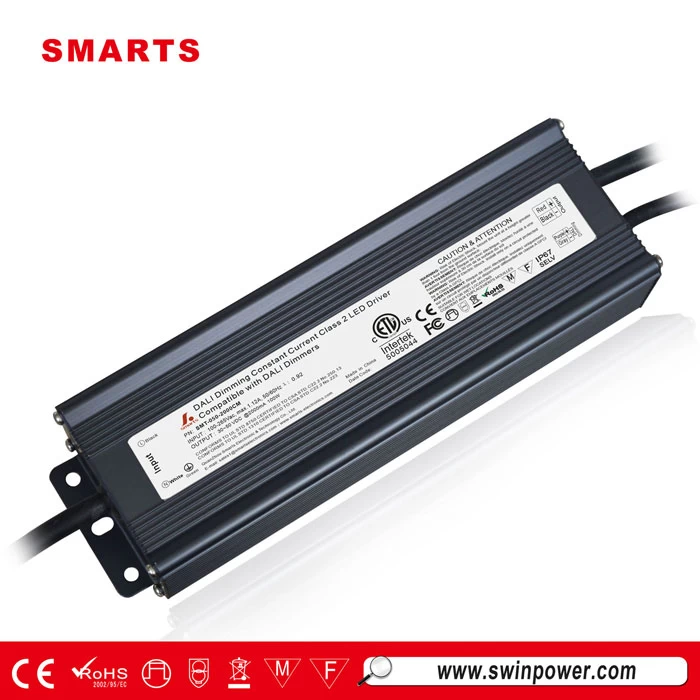

constant current led power supply 2000mA 100W Dali dimming control
100W Dali dimming control has high efficiency and low operation temperature,the wattage range is 30w-200w,it is 100% full-load burn-in test.
Specification
|
Model
|
SMT-100-1050CM
|
SMT-071-1400CM
|
SMT-060-1750CM
|
SMT-050-2000CM
|
SMT-042-2400CM
|
|
Output
|
DC Voltage
|
50~100V
|
40~71V
|
40~60V
|
30~50V
|
25~42V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～1050mA
|
0～1400mA
|
0～1750mA
|
0～2100mA
|
0~2400mA
|
|
Rated power
|
105W
|
98W
|
105W
|
100.8W
|
100w
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.95/100V, 220V
|
|
Full Load Efficiency（Typ.）
|
>89%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
>88%(110,220V)
|
|
AC
Current（Typ.）
|
0.960A(110,220V)
|
1.042A(110,220V)
|
1.031A(110,220V)
|
1.038A(110,220V)
|
1.037A(110,220V)
|
|
Leakage current
|
﹤0.75mA/110, 220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition
is removed
|
|
Over Current
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
230*69*45mm（L*W*H）
|
|
packing
|
355*215*215mm/10pcs/CTN 240*70*50 mm for inner box
|
|
Not
es
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Application
Our led drivers are widely used for:
-
1.Indoor LED illuminating lights
-
2.LED Neon, LED urban Decoration
-
3.LED Lighting Advertising,LED Display
-
4.Safety Protection Apparatus
-
5.Telecommunications, Networks
-
6.Vehicle Lights, Controller Panels
