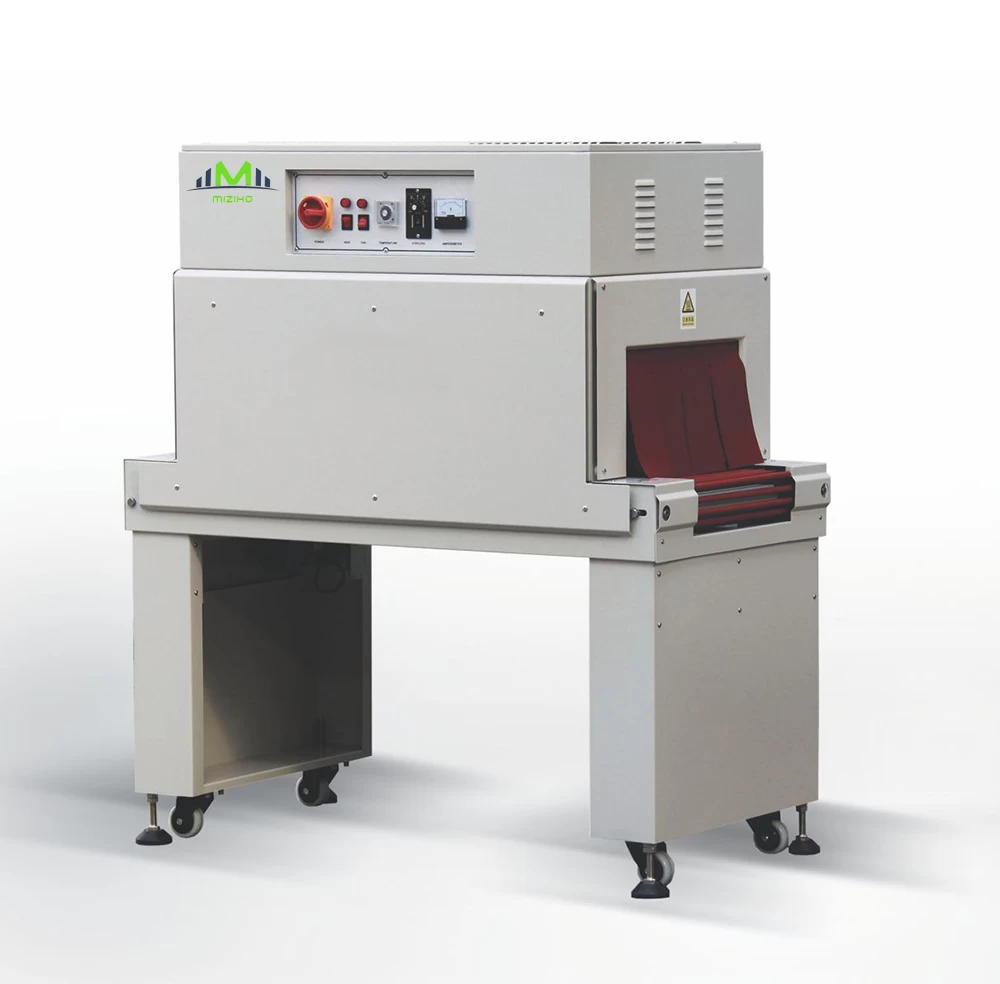

Constant temperature Shrink Tunnel wrapping machine

This Shrink Tunnel wrapping machine adopting advanced international technology is an economic shrink wrap machine with constant temperature, high efficiency, easy to operate, high-performance cost ratio. This Shrink Wrapper is suitable for products grouped and packed together as well as the pallet products. It‘s wildly used in toys, foods, towels, electric wire,tissue processing ect.



Constant temperature Shrink Tunnel wrapping machine

Customized And OEM Service Available

Shrinking Tunnel

Descriptions:

This Shrink packing machine adopts stainless steel heating elements with automatic cooling function which greatly extended the machine’s life span more than three times. Shrinking temperature and conveyor speed can be adjusted that assures stable performance. The packagingis good sealed, anti-dust and anti-moisture


MZH-6040 Technology Parameters

Model

MZH-6040

Mechanical Dimensions L*W*H(mm)

2800*900*1690

Drying path size L*W*H(mm)

2500*5600*400

Conveying speed (m/min)

0-15

Power Supply and Power

3PH 380V 50HZ 12KW


Features:

  • Especially For Thin and Small Items Up to Speed 40packs/min
  • Stainless Steel Heating Tube
  • 12 Months Warranty
  • Overseas After-sales Service Available
  • high temperature-resistance conveyor rollers
  • Generally applicable to PVC, POF, PET shrink wrap film
  • With automaticsealer or semi-auto sealer, the operation is more convenient.

 Main Equipment Configuration

Items

Detail









Heating system

Heater

Stainless steel heating pipe, long service life



Keep warm jacket

Made of high temperature resistant rock wool, the surface temperature is low while working, and the heat loss is

reduced.

Temperature

control

Adopt“AUTONICS”BrandTemperatureControllerand

Import Thermal Sensitive Response, Temperature 0—200℃

conveying

system

Motor

“ZD”Brand Motor, Reducer

Speed control

“TECO”Brand, Guarantee Smooth Transportation



Air handling system

Using hot air circulation technology, the high-power air motor cooperates with the preset air passage to produce uniform hot air circulation in the furnace. The

shrinkage effect is ideal and the loss of heat energy is reduced.





Control system

Power switch

“CHNT”

Contractor

“CHNT”

Emergency

switch



“CHNT”





Machine body

Out sheet

metal

Using ordinary carbon steel sheet after bending, surface

spraying treatment

Inner sheet

metal



Hydraulic Production of Galvanized Sheet Metal
