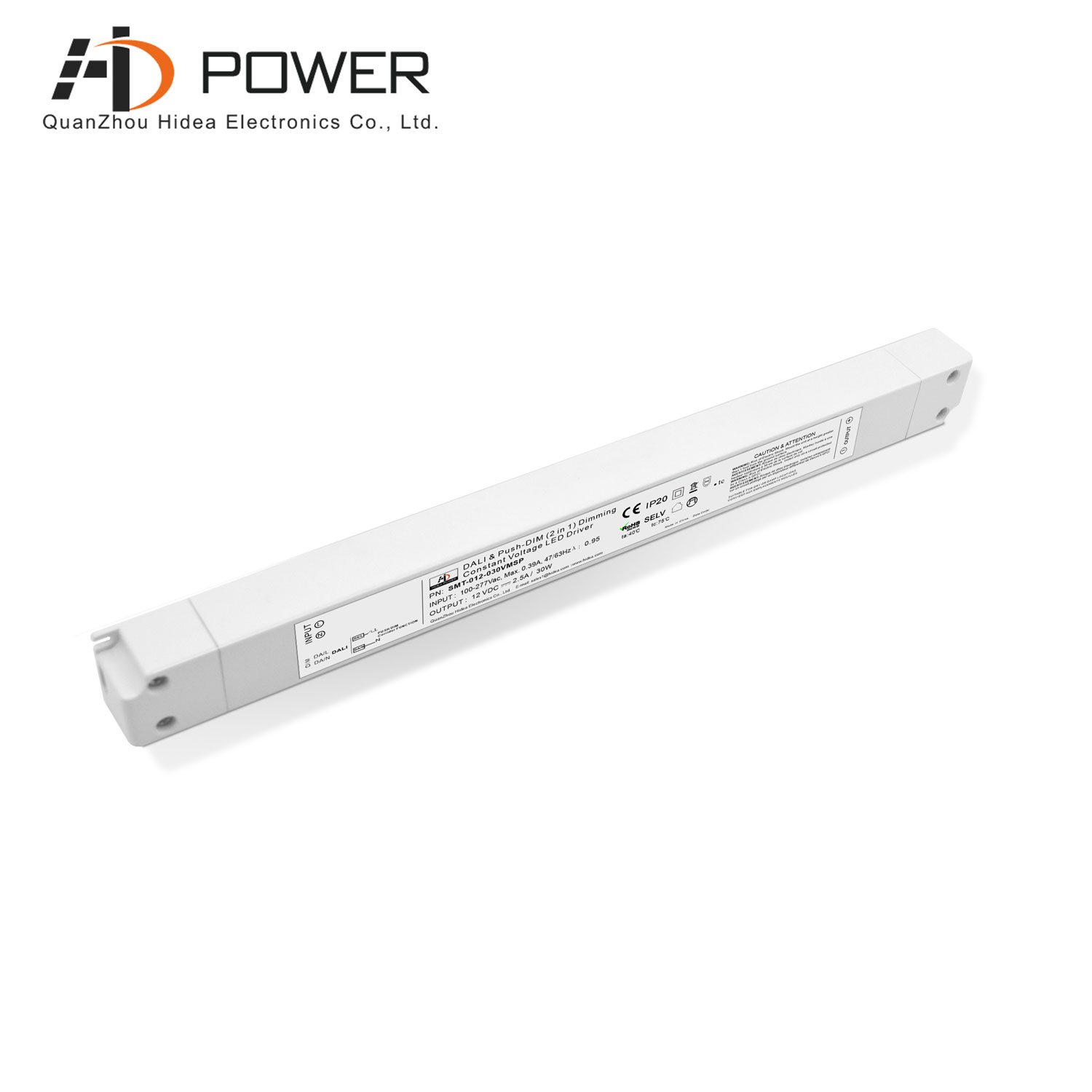

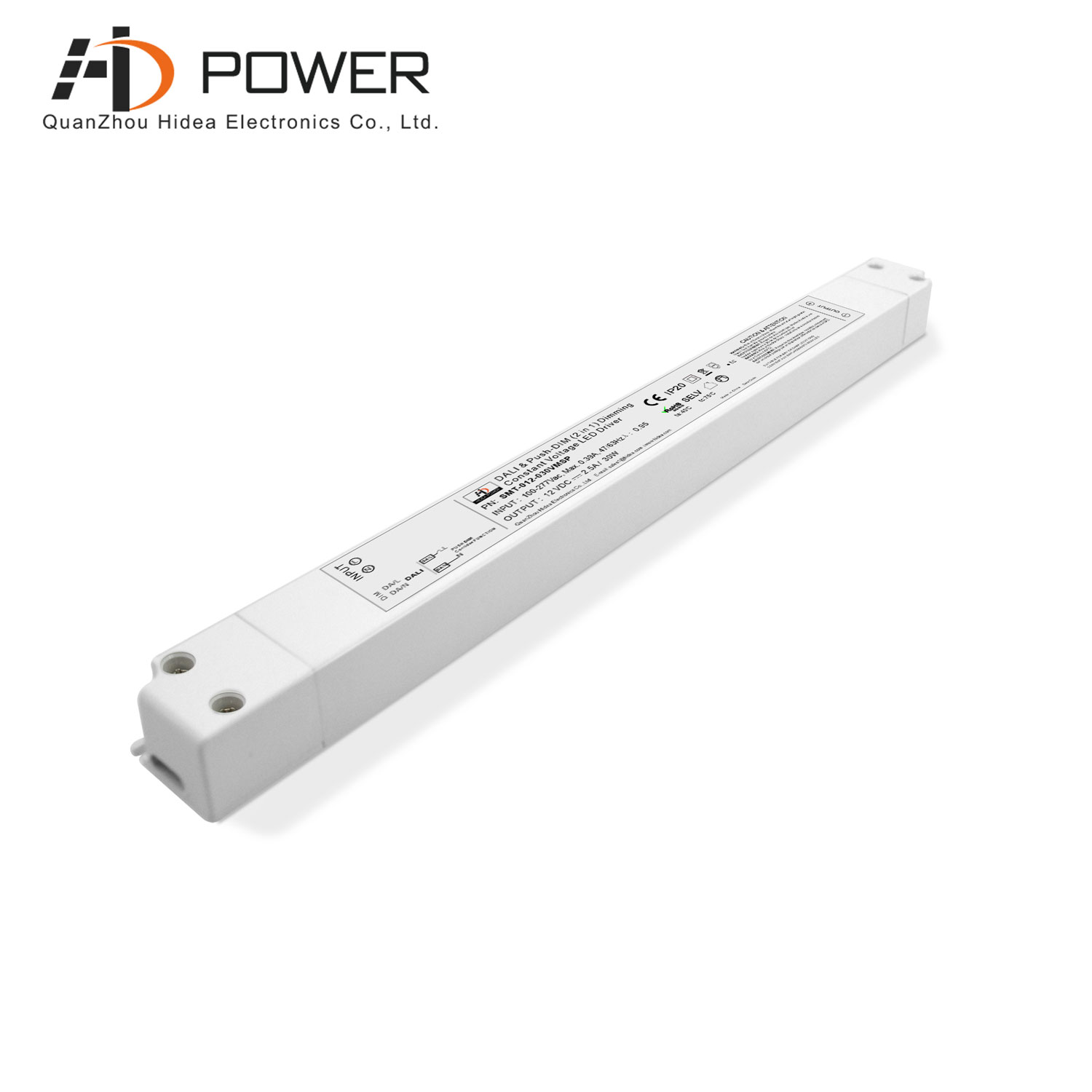

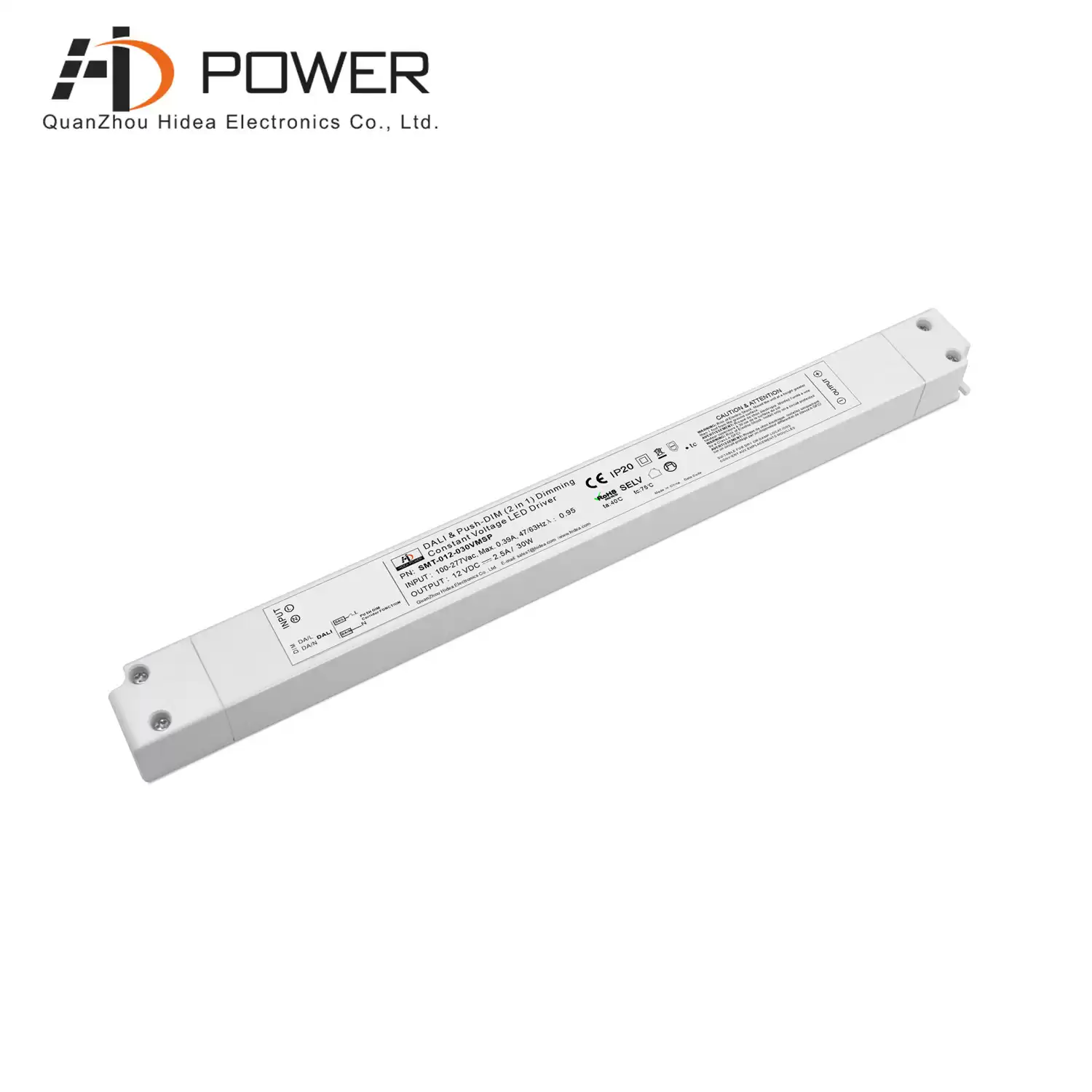

Constant voltage 12v 30w dali rgb dimming led driver ip20 for indoor

DALI & PUSH dimming 30W led driver is a constant voltage working mode, working efficiency up to >81%, plastic shell waterproof grade ip20, suitable for indoor lighting installation in small Spaces


  • Size260*30*18.5MM
  • Shape & SizeSlim Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)30W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeDALI Dimming
  • Weight200g
  • CertificationCE
  • Warranty7 Years

Constant voltage 12v 30w dali rgb dimming led driver ip20 for indoor

Dimming range 0-100% 30W LED driver, built-in dali interface, dimming mode in accordance with dali protocol IEC62386, suitable for intelligent led lighting projects, with a 7-year warranty

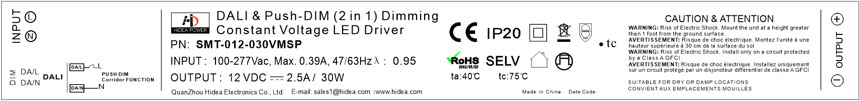

  Label

  Specification

model SMT-012-030VMSP SMT-024-030VMSP
Output DC Voltage 12VDC 24VDC
Voltage Tolerance ±0.5V ±0.5V
Rated current 2.5Amp 1.25Amp
Rated power 30W 30W
Voltage Regulation ±0.5%
Load Regulation ±2%
Input Voltage Range 100-277VAC
Frequency Range 47~63HZ
Power Factor(Typ.)@ full load 0.98@120VAC 0.98@120VAC
Efficiency(Typ.)@ full load(Typ.) >81% >81%
AC Current(Max.) 0.38A@100VAC
THD(Typ. ) @ full load 10%@120VAC 10%@120VAC
Inrush Current(Typ.) 4.64A (twidth=460us) @120VAC ;  33.2A (twidth=116us) @230VAC ;12.4A (twidth=430us) @277VAC ;
Leakage current <0.5mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% Hiccup mode ,recovers automatically after fault condition is removed
Protection Class II
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)
Withstand voltage I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)
Isolation resistance I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,11,  EN61547, light industry
Others Net Weight 0.20Kg
Dimension 260*30*18.5mm(L*W*H)
packing 330*275*130mm/50PCS/CTN    G.W.:11KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

led driver 12V
dimmable led driver

SMARTS led power supply




  Related Products

30w led driver price

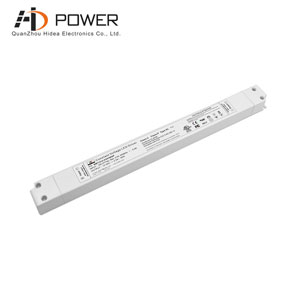

UL certified, plastic case ultra-thin size strip led driver suitable for indoor lighting
