Constant voltage 12v led light strip adapter driver 24v 36w

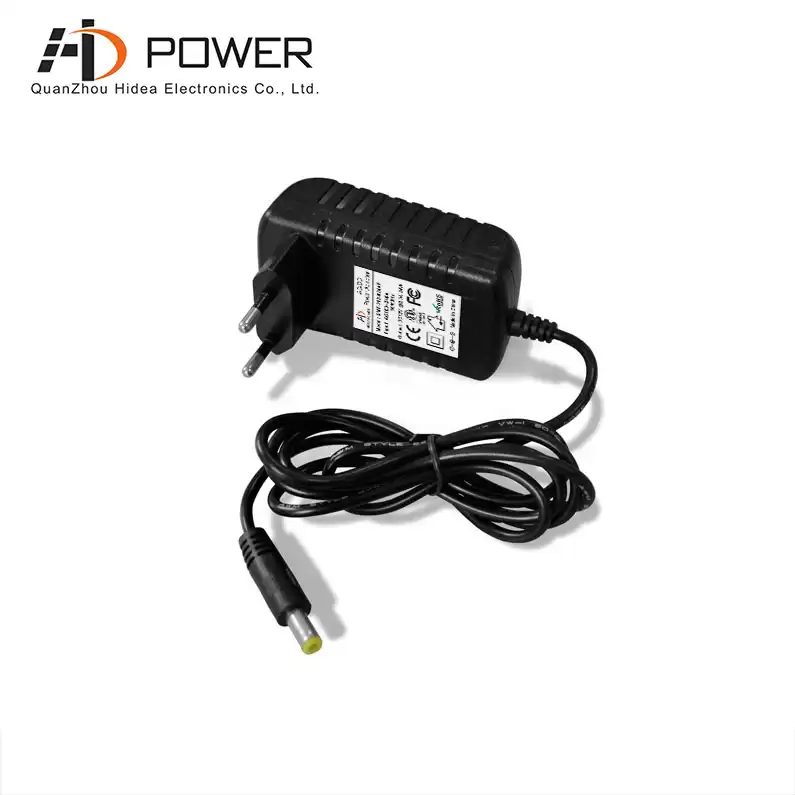

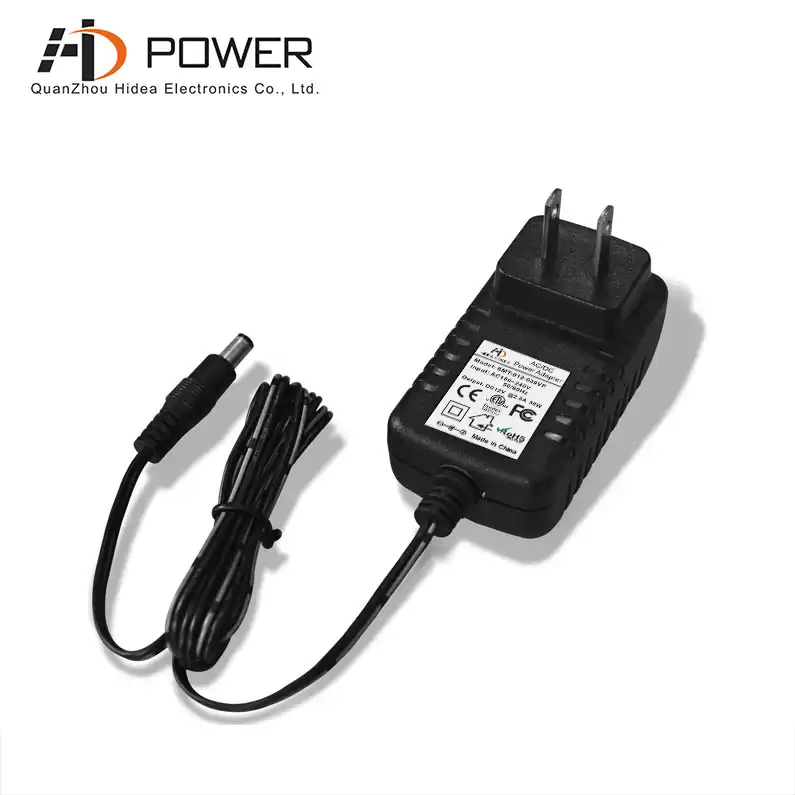

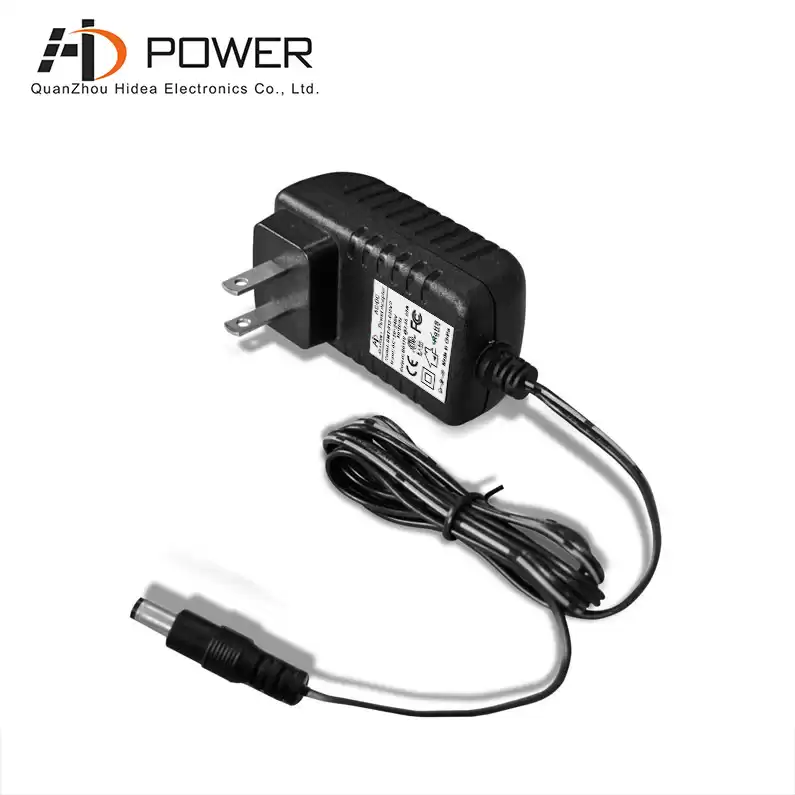

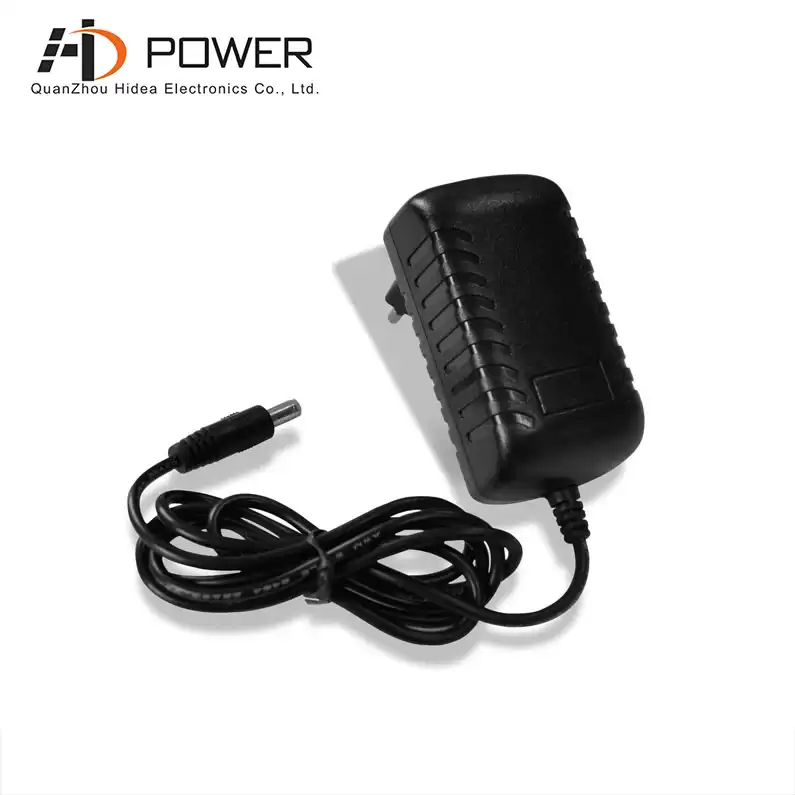

SMT-012-036VP is 36W 3A LED driver 12v black plastic case, small size, easy to carry input voltage is 100-2400vac，with two year warranty
Specification
|
model
|
SMT-012-036VP
|
SMT-024-036VP
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
3A
|
1.5A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
36W
|
36W
|
|
Input
|
Voltage Range
|
100-240V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
80%@120V, 80%@230V ,89%@277V
|
80%@120V,80%@230V
|
|
|
Full Load Efficiency(Typ.)
|
0.7
|
0.7
|
|
AC Current(Typ.)
|
500MA MAX.
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120VAC;
|
|
Ripple
|
<200mV
|
|
Over temperature
|
90℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦265VAC
|
|
Environment
|
Working TEMP.
|
0~+40℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-20~+60℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL60950-1,EN60950-1,GB4943-2001
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Hi-Pot
|
AC3000Vrms/50Hz,5mA max
|
|
Others
|
Weight
|
About 0.12Kg
|
|
Size
|
93.58*46.57*33.10mm (L*W*H)
|
|
packing
|
100PCS/CTN (L*W*H)
|

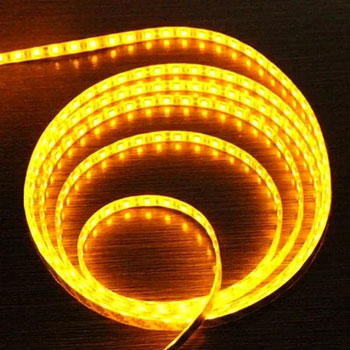

Compatible Light Type
Wall-mounted 36W LED power supply adapter 12v non dimming constant voltage working mode, can work well with klusdesign's 36W led strip
Related Products
|

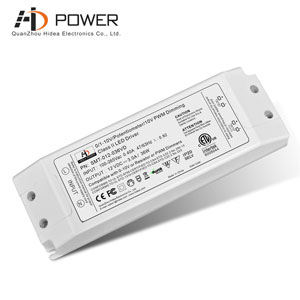

 0-10v dimming led driver has passed ETL certification,
ip20 plastic housing is suitable for indoor drying projects
Mode：SMT-012-030VD
Dimming Mode : 0-10V Dimming
Output Power : 30w
intput voltage：100-265Vac
Size：140*45*27mm （L*W*H）
|
