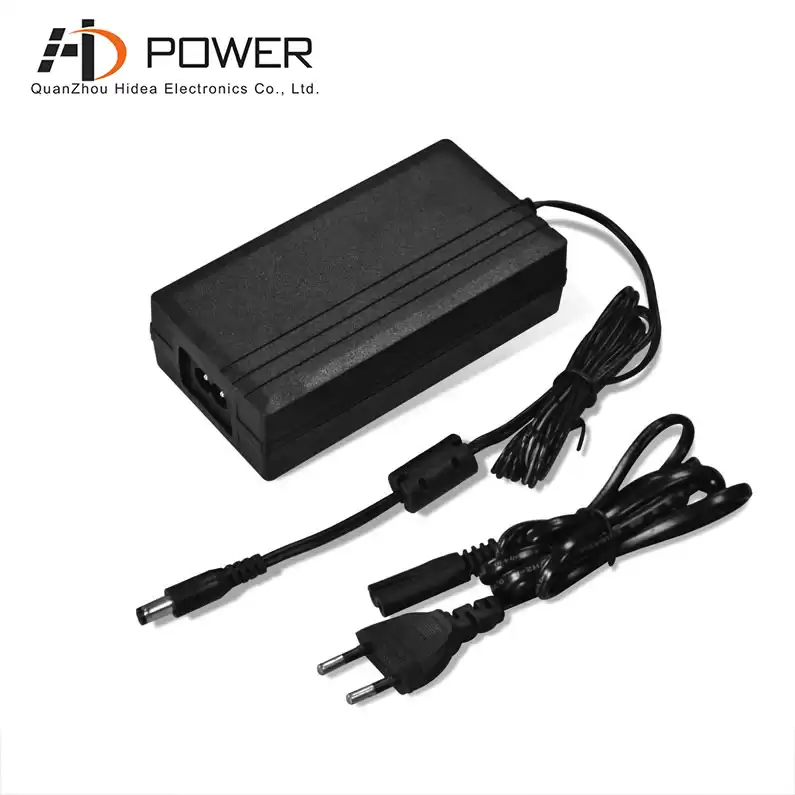

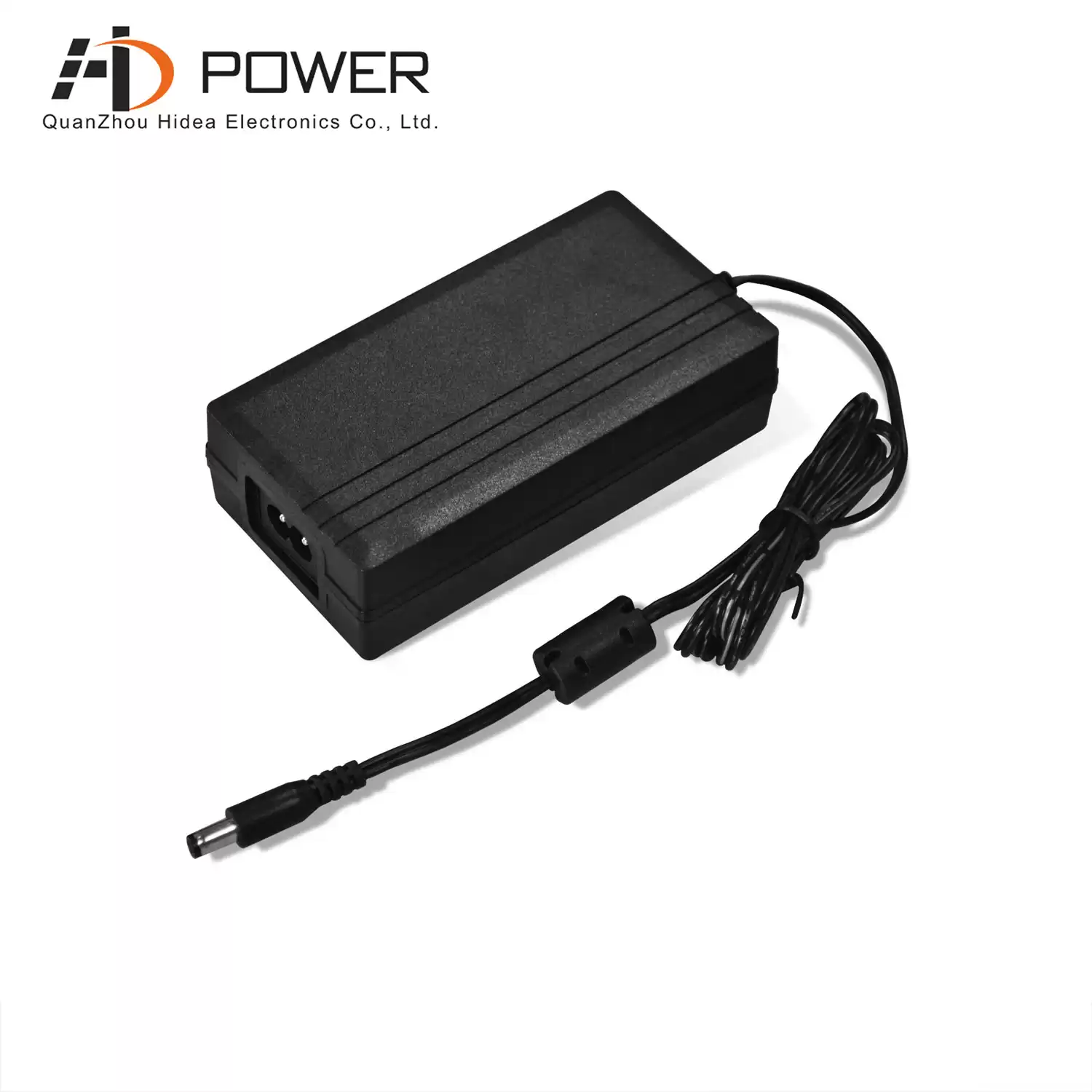

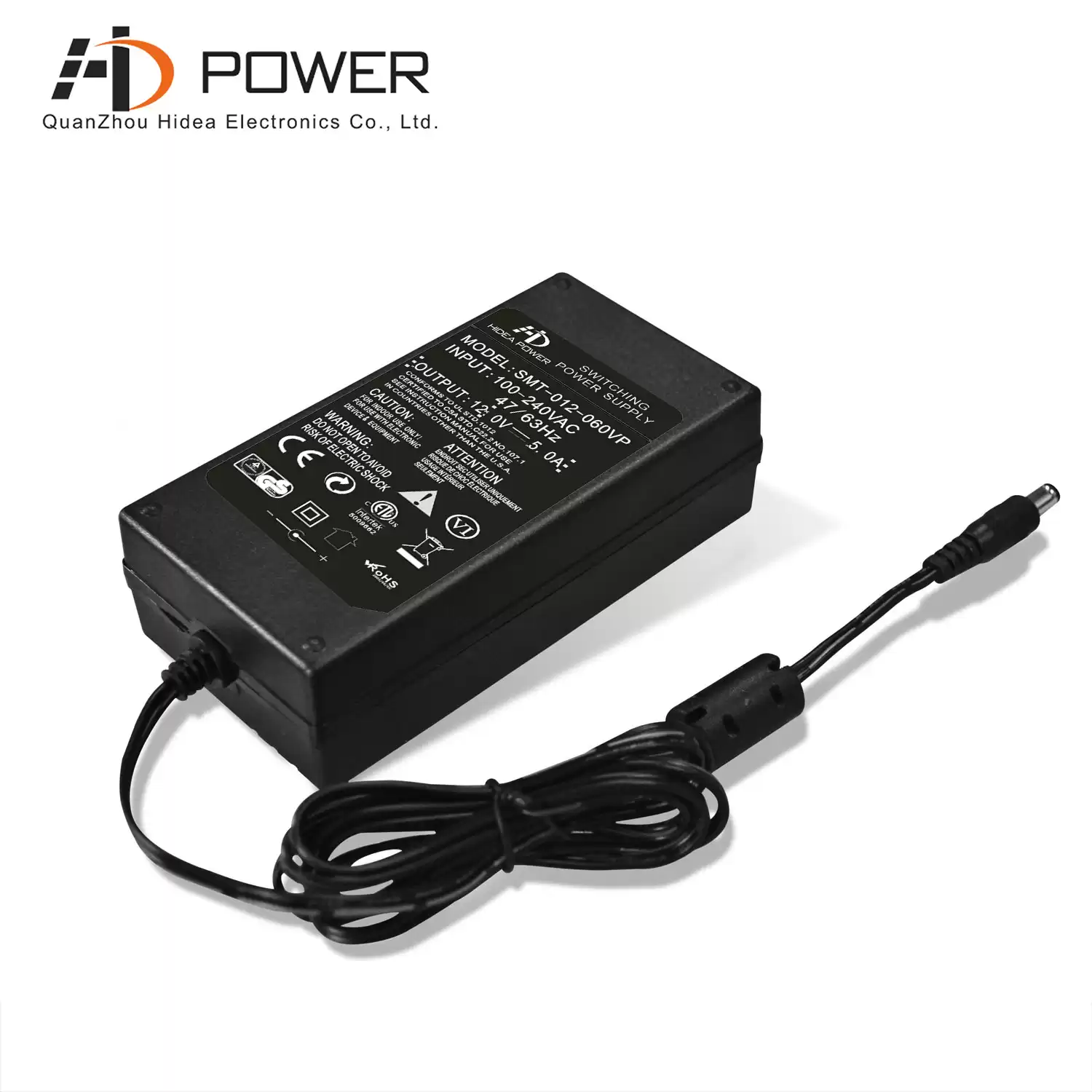

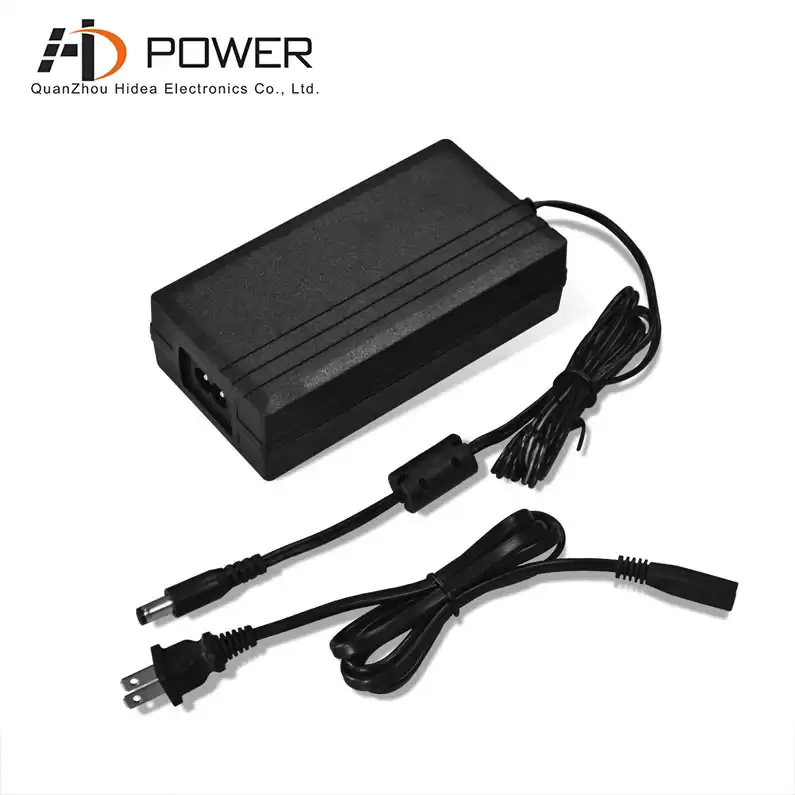

Hidea power 60W desktop power adapter has passed CE ETL certification, with European and North American standard plugs, mainly sold to North America, small size can save space
Specification
INPUT REQUIREMENTS:
1 Operating range: 90-264VAC
2 Rated Input Voltage: 100-240VAC
3 Input Frequency Range: 50/60Hz +/-3Hz
4 Input In-rush Current: 30A max
5 Input Current: 800mA max
OUTPUT REQUIREMENTS:
1 Output Voltage and Current
|
Output
|
Output Regulation(V)
|
No Load
|
Rating Load (A)
|
|
Voltage(V)
|
Minimum
|
Maximum
|
Current(A)
|
Continuous Current(A)
|
|
12V
|
11.4V
|
12.6V
|
0A
|
2.5A
|
2 Output Voltage Regulation
The total output voltage regulation shall be +/-5%, including the effects of line voltage variations, load current, ripple and noise, and the AC component of the load current.
3 Output Voltage Ripple
The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple, switching frequency ripple and noise measured with 20MHz width.
Ripple and Noise: 50/60Hz Ripple + Switching Ripple and Noise
|
Output
|
Ripple
|
|
0-2.5A
|
200mV
|
Ripple and Noise are measured at the end of output cables which are added a
0.1uF(104) Ceramic capacitor and a 22uF Electrolytic capacitor.

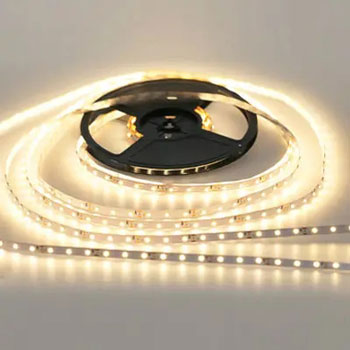

Compatible Light Type
This 60W 12V switching power adapter is specially designed to provide power for led light strips, the constant voltage working mode can make the light strip work stably, and the installation is simple and convenient
Related Products
|

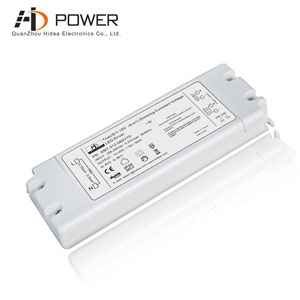

 5 in 1 dimming led driver is highly compatible, can achieve
