constant voltage ELV triac dimming led driver indoor led transformer 60w 12vdc

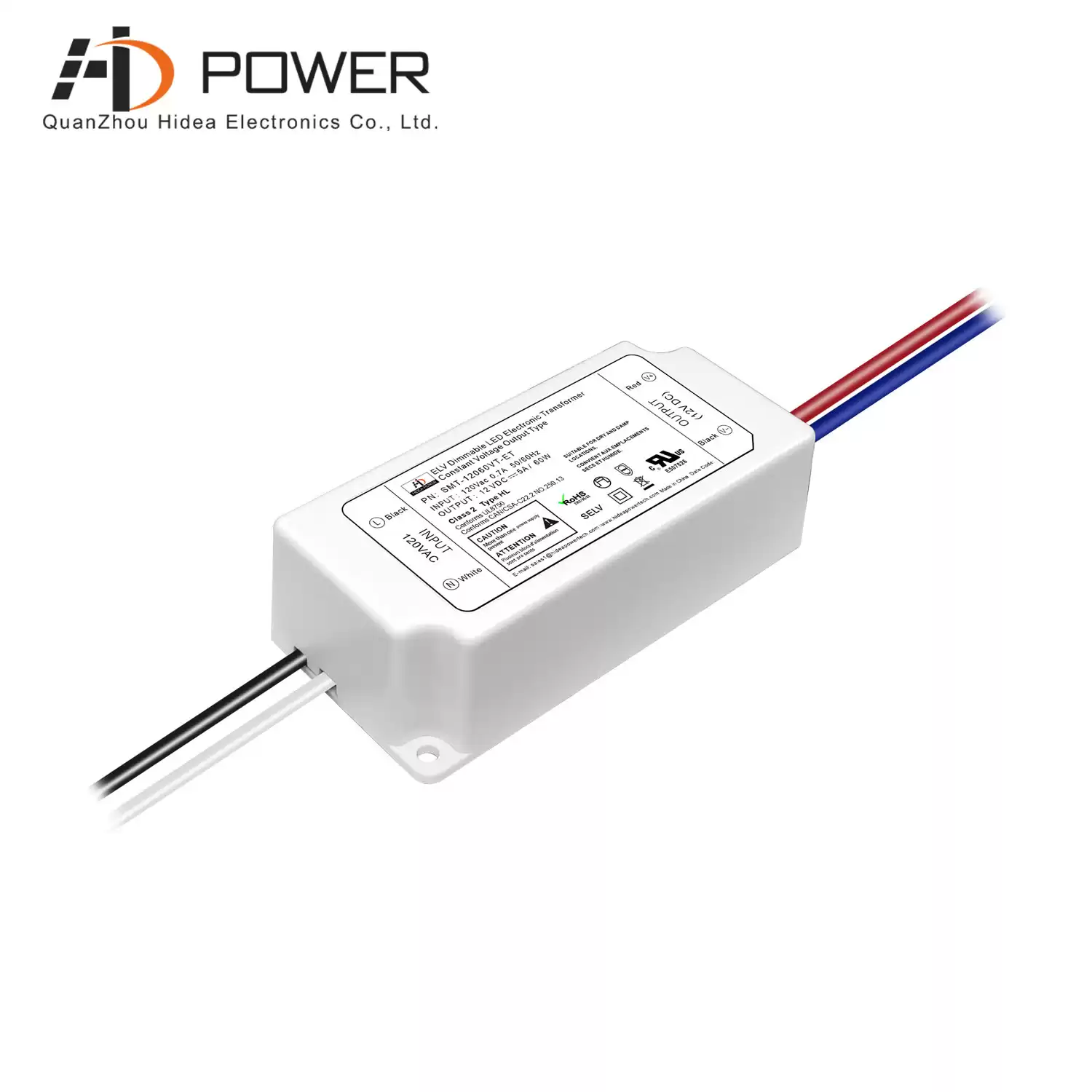

The SMT-12060VT-ET is a new triac/ELV dimmable electronic transformer 60W with a built-in mobile PFC, ultra-low load, capable of operating at 20-100% load and with a 3-year warranty
Specification
|
Model Number
|
SMT-1260VT-ET
|
SMT-2460VT-ET
|
|
OUTPUT
|
|
Rated Power
|
60W
|
60W
|
|
Rated Voltage
|
12V
|
24V
|
|
Rated Current
|
5.0A
|
2.5A
|
|
Voltage Tolerance
|
±1V
|
|
INPUT
|
|
Voltage Range
|
100-130VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.94@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Efficiency(Typ.)
|
88%@120VAC
|
|
AC Current(Typ.)
|
0.75A
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Reduce the output voltage and output power, auto-recovery or re-power on to recovery
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
3.31x1.57x0.98 inch (L*W*H)
|
|
Packing
|
|
