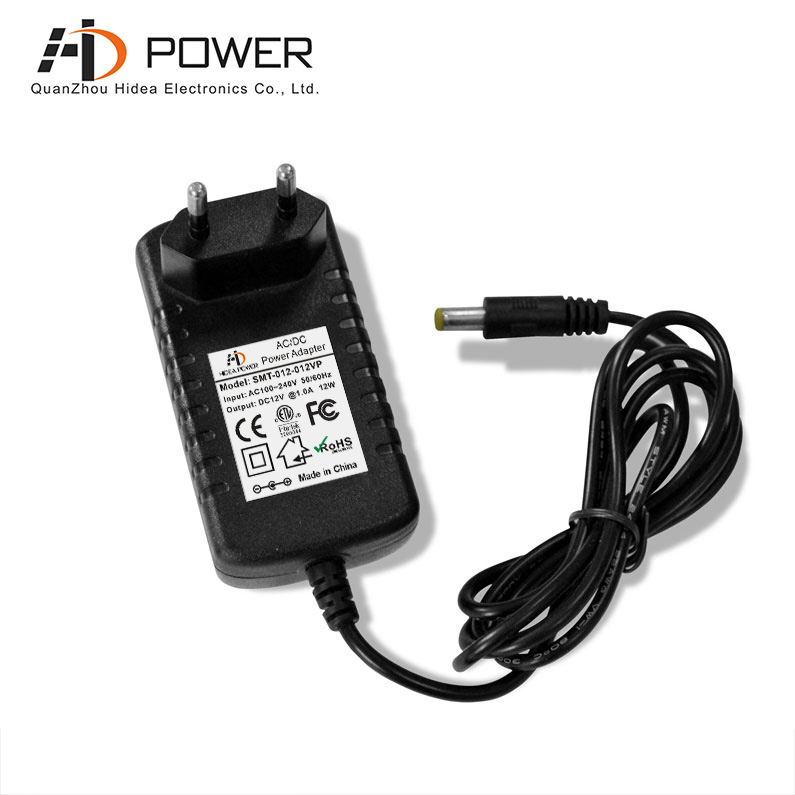

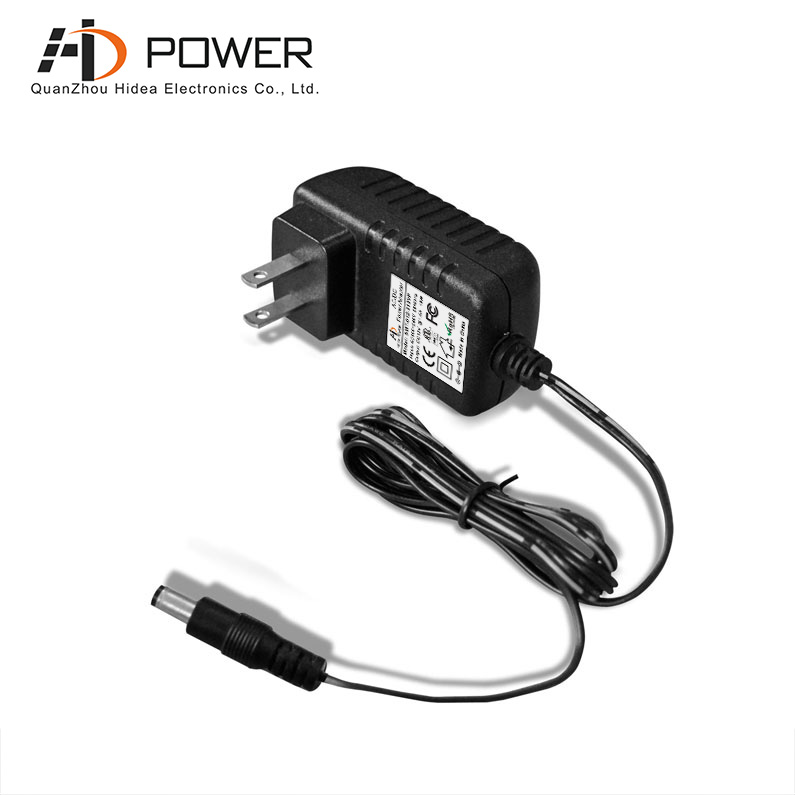

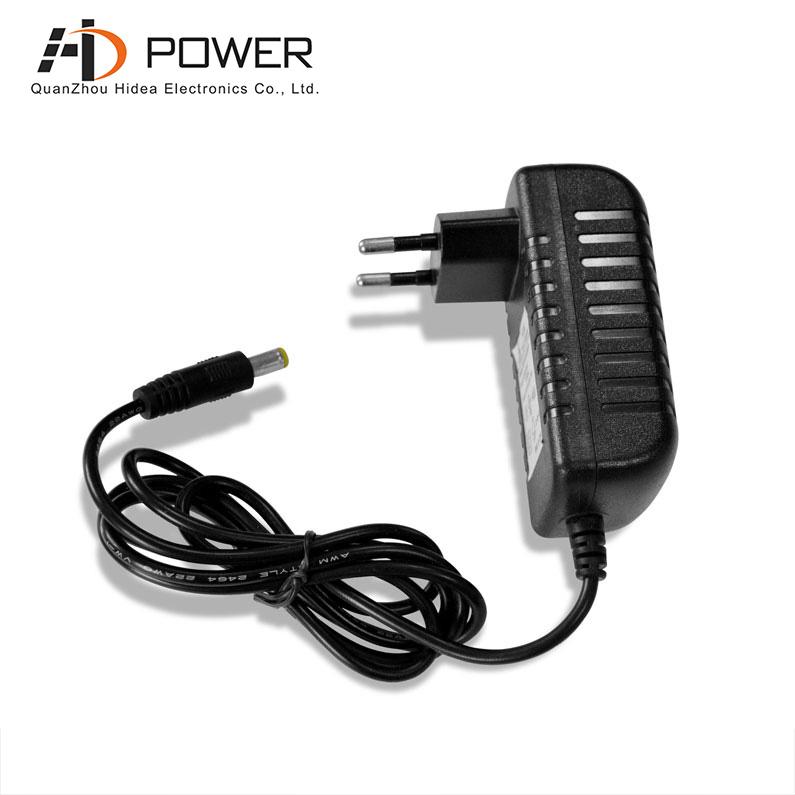

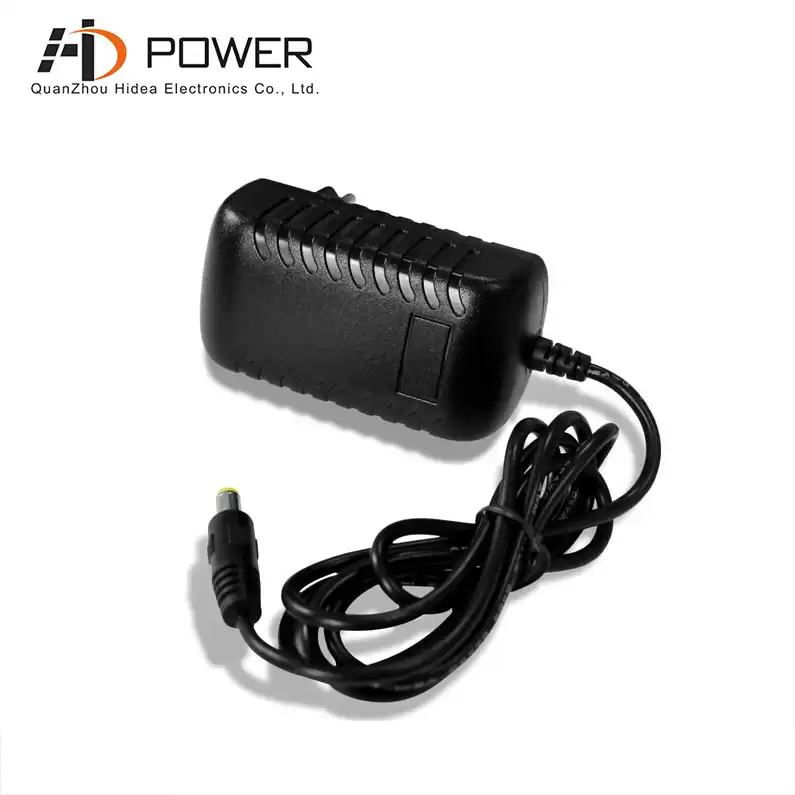

Constant voltage led strip driver power adapter 12v dc 12w transformer
Hidea power 12W led power adapter, input voltage is 100-240vac, CE ETL certification, mainly sold to Europe, waterproof level ip20
Specification
|
model
|
SMT-012-012VP
|
SMT-024-012VP
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
1A
|
0.5A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
12W
|
12W
|
|
Input
|
Voltage Range
|
100-240V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
80%@120V, 80%@230V ,89%@277V
|
80%@120V,80%@230V
|
|
|
Full Load Efficiency(Typ.)
|
0.7
|
0.7
|
|
AC Current(Typ.)
|
500MA MAX.
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120VAC;
|
|
Ripple
|
<200mV
|
|
Over temperature
|
90℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦265VAC
|
|
Environment
|
Working TEMP.
|
0~+40℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-20~+60℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL60950-1,EN60950-1,GB4943-2001
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Hi-Pot
|
AC3000Vrms/50Hz,5mA max
|
|
Others
|
Weight
|
About 0.12Kg
|
|
Size
|
75*42*30mm (L*W*H)
|
|
packing
|
100PCS/CTN (L*W*H)
|

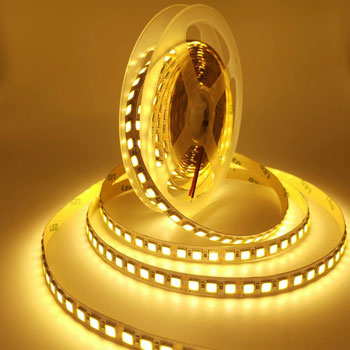

Compatible Light Type
Hidea power hot-selling led switching power adapter series power supply has wattage from 6W to 100w, which can be used by users to choose the appropriate power supply according to different needs
Related Products
|

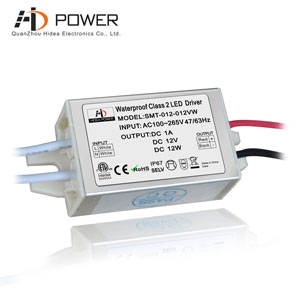

 Waterproof ip67 12W mini power supply working
