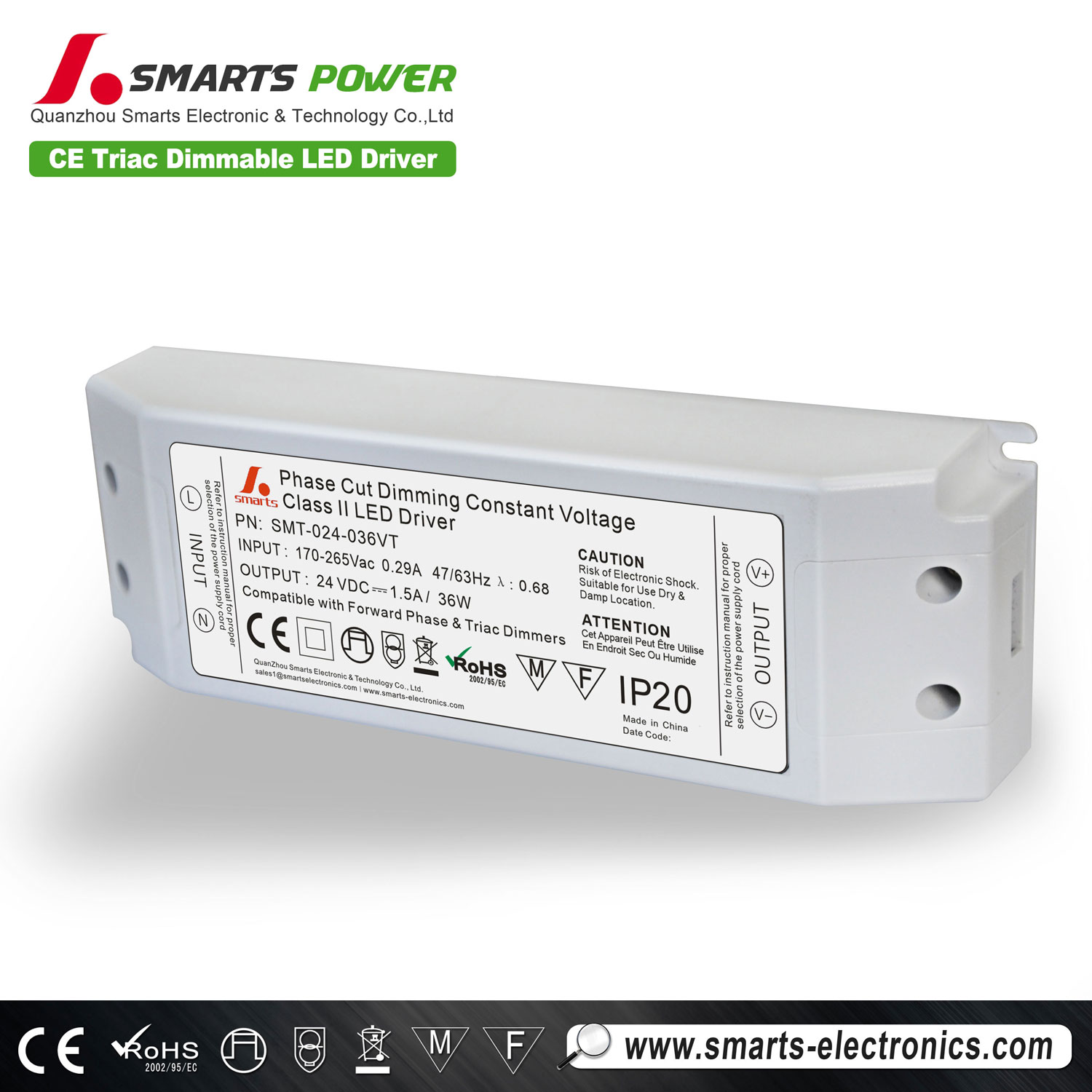

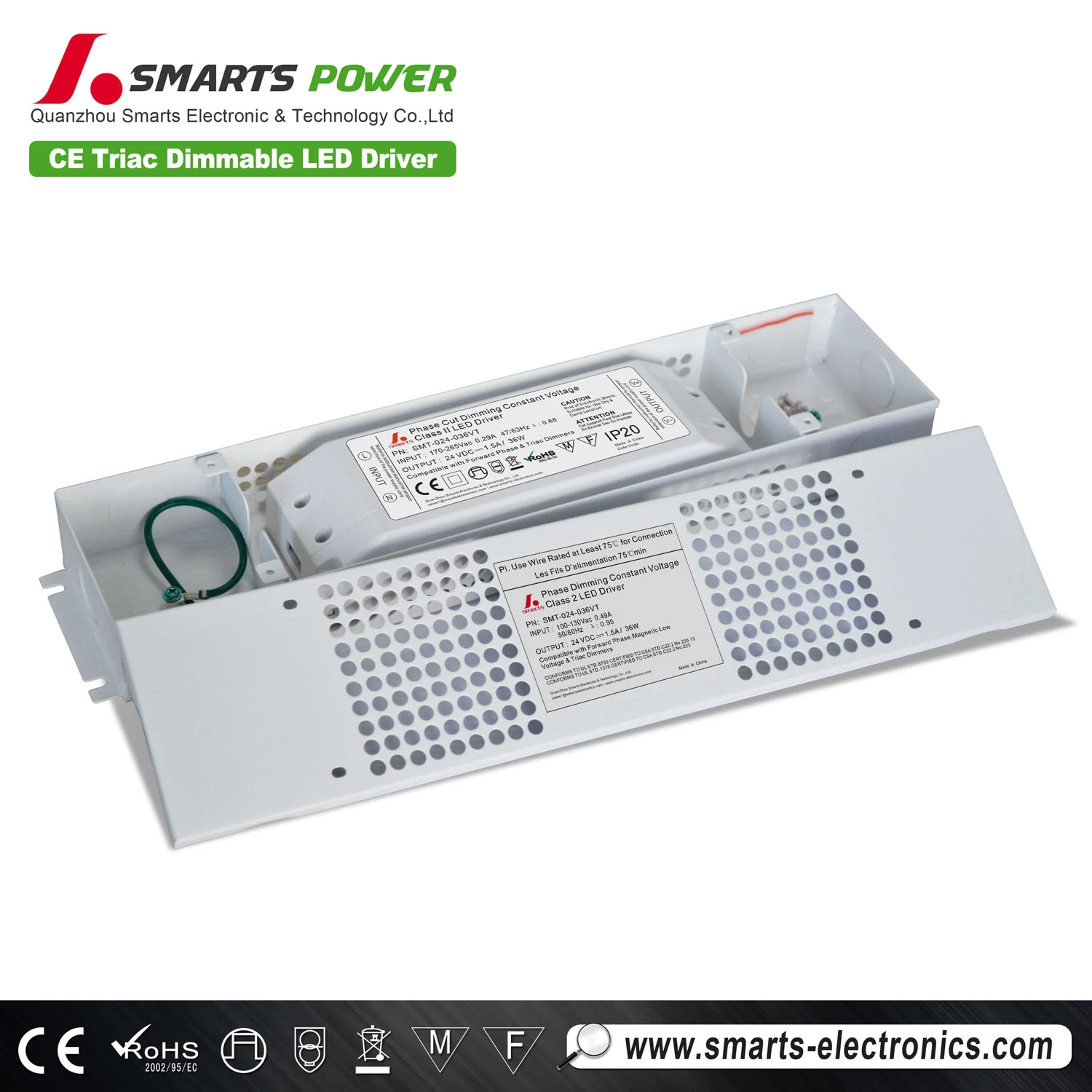

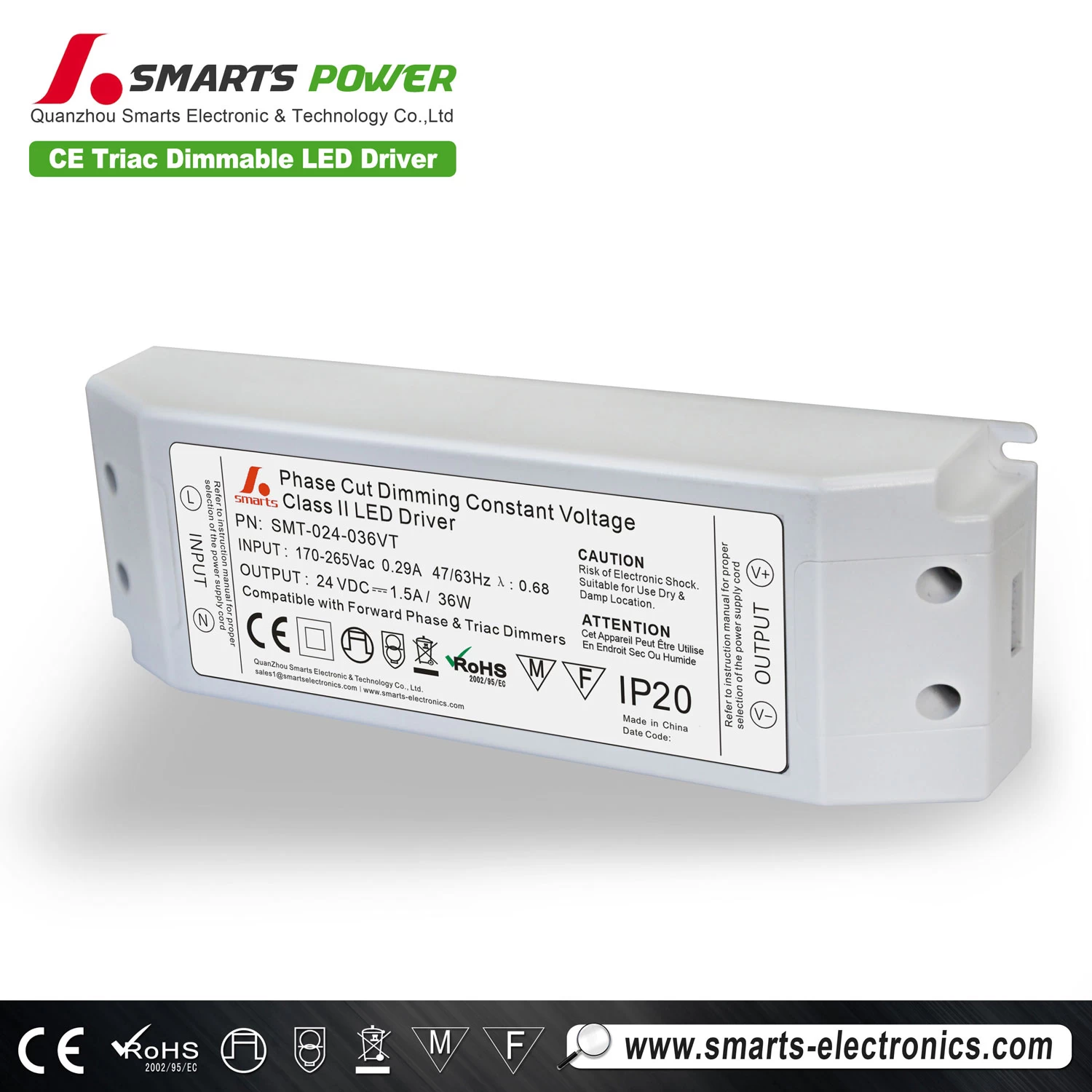

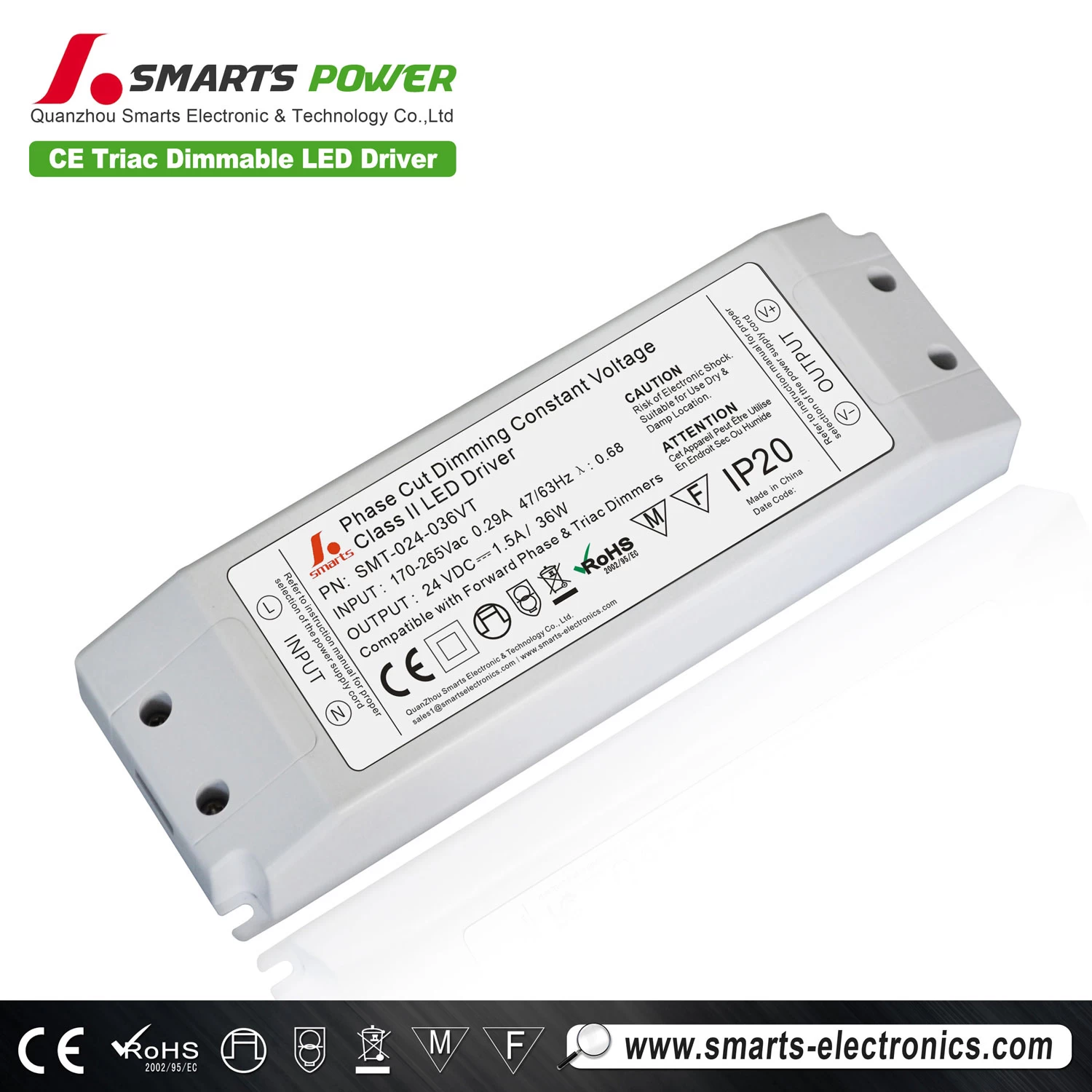

constant voltage transformer 24v 36w triac dimmable led power supply

Features:

• High efficiency,save energy ,protected environment.
• High stability and low ripple, increase light efficiency and decrease light attenuation.
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant voltage.
• Integrity protection,over loading, over voltage ,over current.
• 8Hrs and 100% full load burn-in test.

Environment :

• Working Temperature : -25 ~ +50°C
• Working Humidity : 20 ~ 90% RH non-condensing
• Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
• TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
• Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

• Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
• Withstand Voltage : I/P-O/P: 3000KVAC
• Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications:

• indoor LED illuminating lights, LED Neon
• LED urban Decoration,LED Lighting Advertising
• LED Display, Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels
