Accessories----construction hoist spare part safety device SAJ30-1.2
construction hoist safety device//construction hoist spare part//building lift safety device
Selling Units: Single item
Single package size: 31X32X31 CM
Single gross weight: 37.0 KG
Safety device model
|
SAJ30-1.2
|
Rated brake loading
|
30Kn
|
Rated brake speed
|
1.2m/s
|
Rated Start moving speed
|
As per your request
|
Weight of the device
|
35kg
|

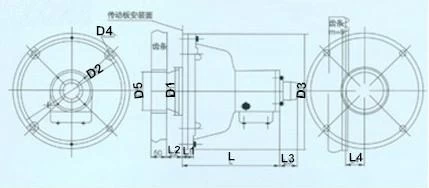

Outer diameter D1
|
150mm
|
Installing hole reference diameter D2
|
284mm
|
Installing flange outer diameter D3
|
310mm
|
Installing hole diameter D4
|
15mm
|
Gear reference circle diameter D5
|
120mm
|
Main length L
|
257mm
|
Installing flange thickness L1
|
27mm
|
Neck installing length L2
|
43mm
|
Rear length L3
|
0mm or 55mm(two types)
|
Length between the axis and gear reference line L4
|
60mm
|
