Technical data
Measuring range |
-30 to +500 °C |
Display range |
-40 to +600 °C |
Features |
Temperature controller with up to 2 microswitches; IP65 possible (type 608523) |
Accuracy class according to DIN EN 13190 |
Class 1.5 |
Probe outlet |
Vertical or horizontal |
Housing size |
60 mm, 80 mm, 100 mm made from CrNi (608540 made from polyamide, 80 mm only) |
Capillary/rigid thermowell |
Rigid thermowell or capillary (up to 10 m) |
Areas of application |
Monitoring of the oil temperature in industrial transformers, process technology |
Special features
• Class 1.5
• Display range -40 to +600 °C
• Temperature controller with actual value display as built-in or add-on device in a stainless
steel case
• With 1 or 2 miroswitches
• Case sizes Ø: 60 mm, 80 mm, and 100 mm
• Front panel: 72 mm × 72 mm and 96 mm × 96 mm
Brief description

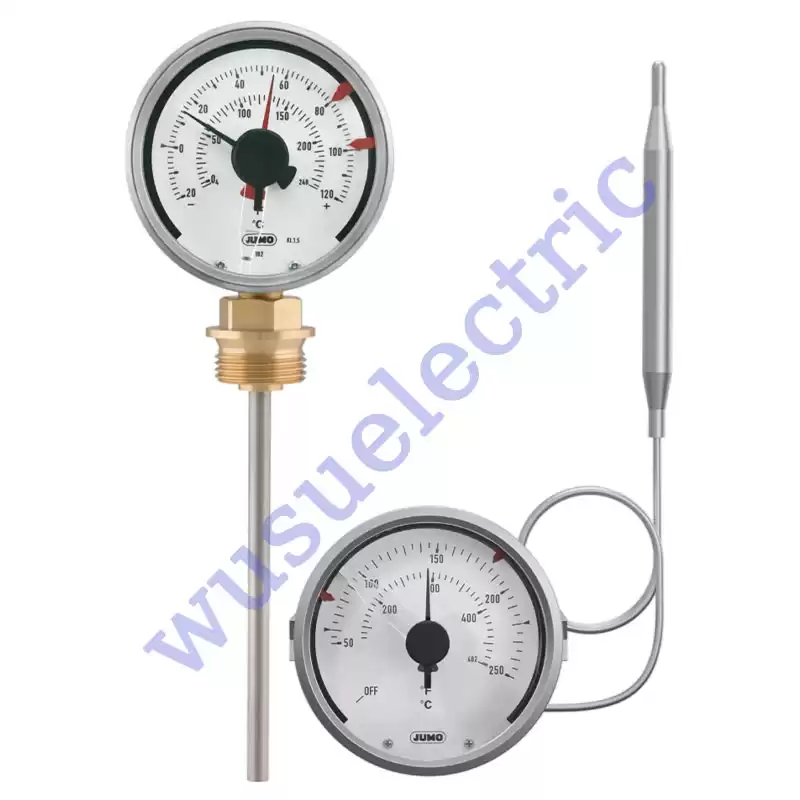

Contact dial thermometers are devices with an actual value display for temperature measure-
ment, control, and monitoring and can be used universally.
The temperature-dependent volume change in a measuring system filled with liquid or the tem-
perature-dependent pressure change in a measuring system filled with gas is converted to a ro-
tational movement of the actual value indicator by a bourdon tube; no transmission gear is
required. The microswitch is actuated by the rotational movement of the indicator shaft via a tap
system.

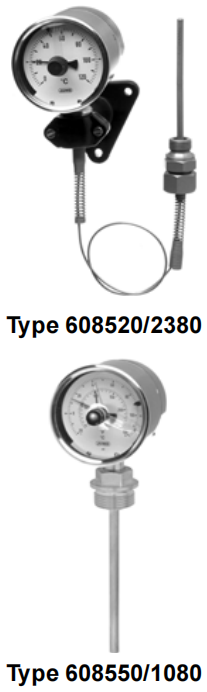

Contact dial thermometers in the series 608520/608550 are RoHS-compliant and cadmium-free
|
|
Stock versions
Type |
Display range °C |
Switching output |
Temperature probe, process connection |
Protection tube mm |
Part no. |
608550/0180-643-874-8-106-50-150-20/434-522 with drag indicator |
.-20 to +120 |
20 (1 contact) |
TF 05 d = 8 mm TA 24, G 1“, CuZn |
150 |
00455918 |
608550/0180-643-874-8-106-50-150-21/434-522 with drag indicator |
20 (1 contact) |
00455919 |
