Continuous Laboratory Film Battery Coating Machine
for Battery Electrode
Product Specification
The TOB-TBJ-180C continuous lab coating machine is a combination assembly of high precision modular coating station mechanism, and can be used for continuous coating proofing or small production research. The machine is specially used for the continuous coating process of lithium ion battery cathode and anode coating. It is suitable for small scale coating in universities and enterprises. It can also be used in ceramic film, crystal film, special nanometer film, etc. The fuselage is made of stainless steel, beautiful, durable, surface spray treatment, easy to operate and so on.
|
Model
|
Desktop Roll to Roll Continuous Coating Machine TOB-TBJ-180c
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
400W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Suitable material thickness
|
Aluminum foil : 0.01-0.03mm
Copper foil : 0.006-0.020mm
|
|
Max electrode width
|
50-150mm
|
|
Coating speed
|
0-2m/min, adjustable
|
|
Max baking temperature
|
100℃ ,PID control mode
|
|
Coating thickness
|
0.01mm-2mm
|
|
Coating thickness accuracy
|
0.01mm
|
|
Dimension
|
1800* 350 * 580 mm
|
|
Weight
|
About 130kg
|

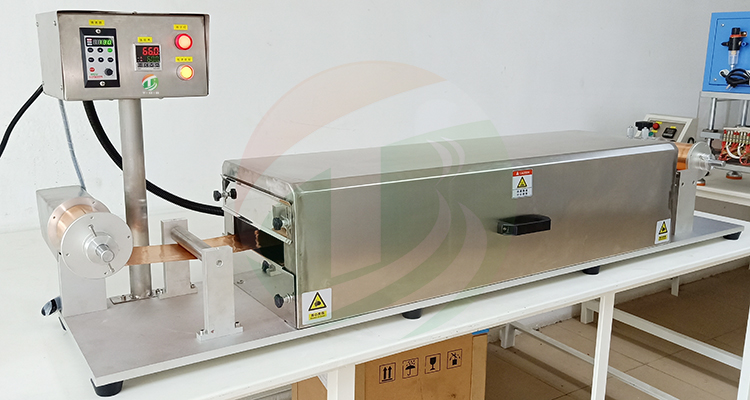

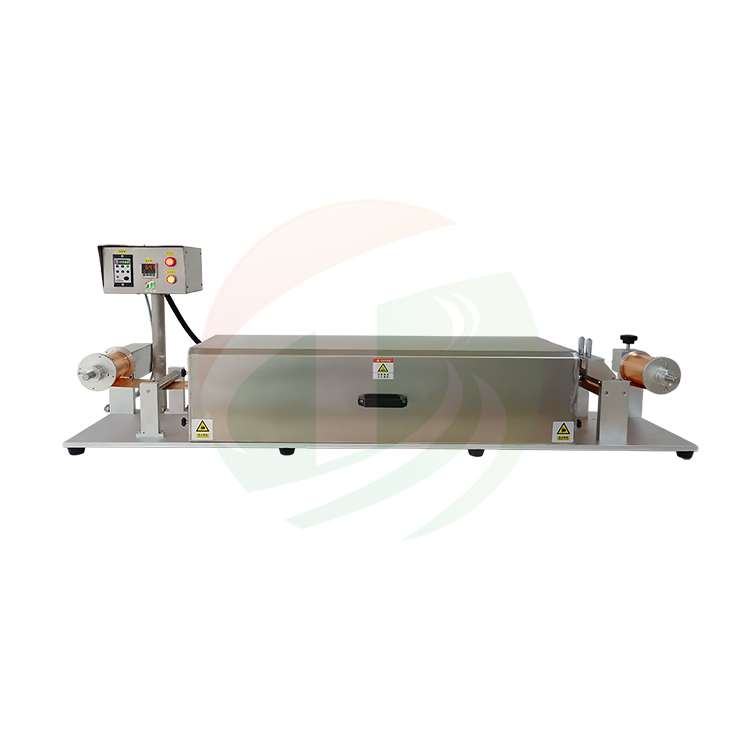

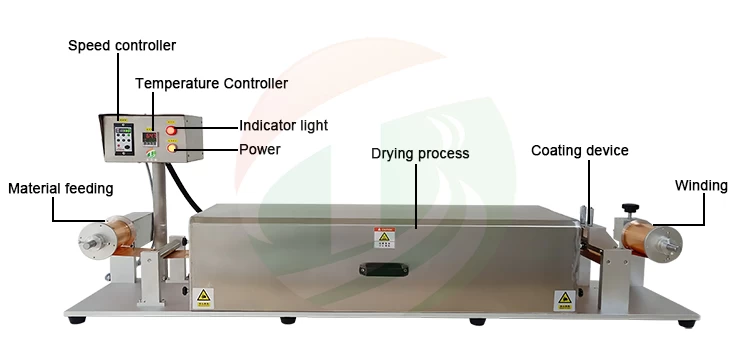

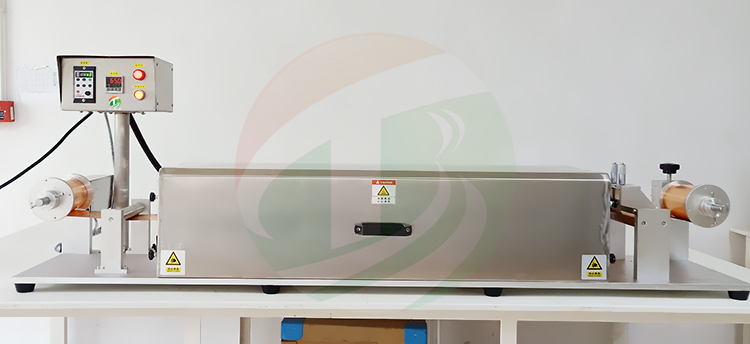

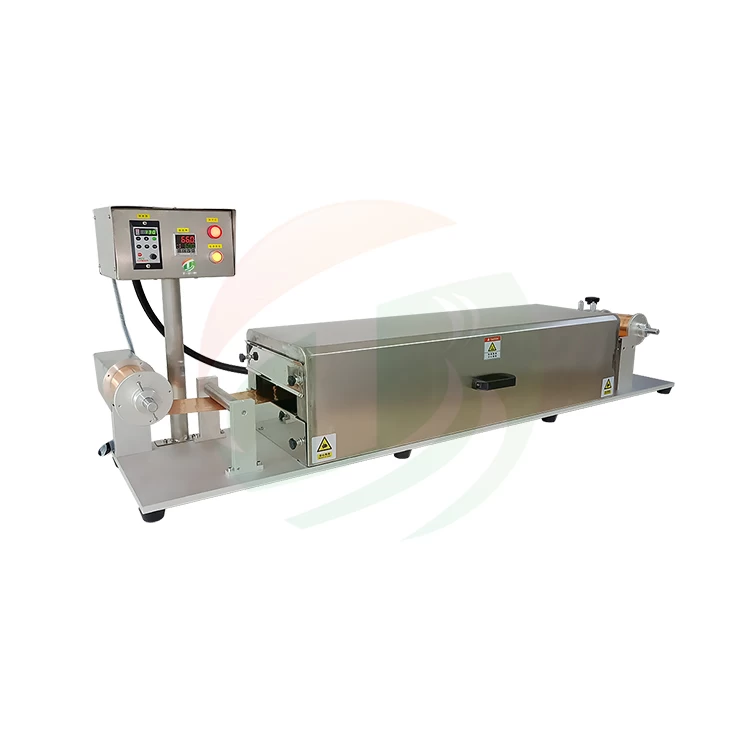

Product Image
Product Packing
