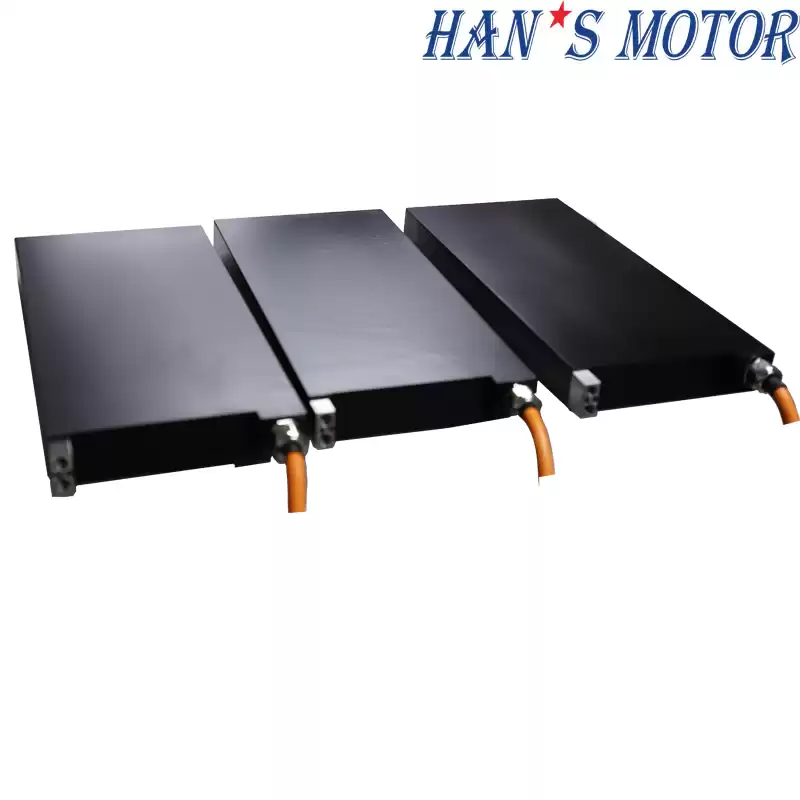

Product name：Continuous thrust 3015N iron core linear motor with water cooling type
Specifications
Mover Spec.：LSMF610603E-P-H-WC
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
|
Continuous Force (Tmax）
|
Fc
|
N
|
3015
|
Peak Force
|
Fp
|
N
|
6000
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
94.3
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
1403
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
15.6
|
Peak Current (1S)
|
Ip
|
Arms
|
33.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
193.3
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
64.4
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
2.8
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
25.0
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
48.0
|
Minimum flow of cold water
|
Wmin
|
L/min
|
6.5
|
Temperature difference between inlet and outlet
|
△T
|
℃
|
7.0
|
Pressure drop (stator loop series)
|
△P
|
Bar
|
3.0
|
Magnetic Attraction
|
Fa
|
kN
|
17.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
2.7
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
1.9
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
3.3
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
1.6
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
1.0
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
2.2
|
Mover Mass
|
Mp
|
Kg
|
26.0
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
12.0
|

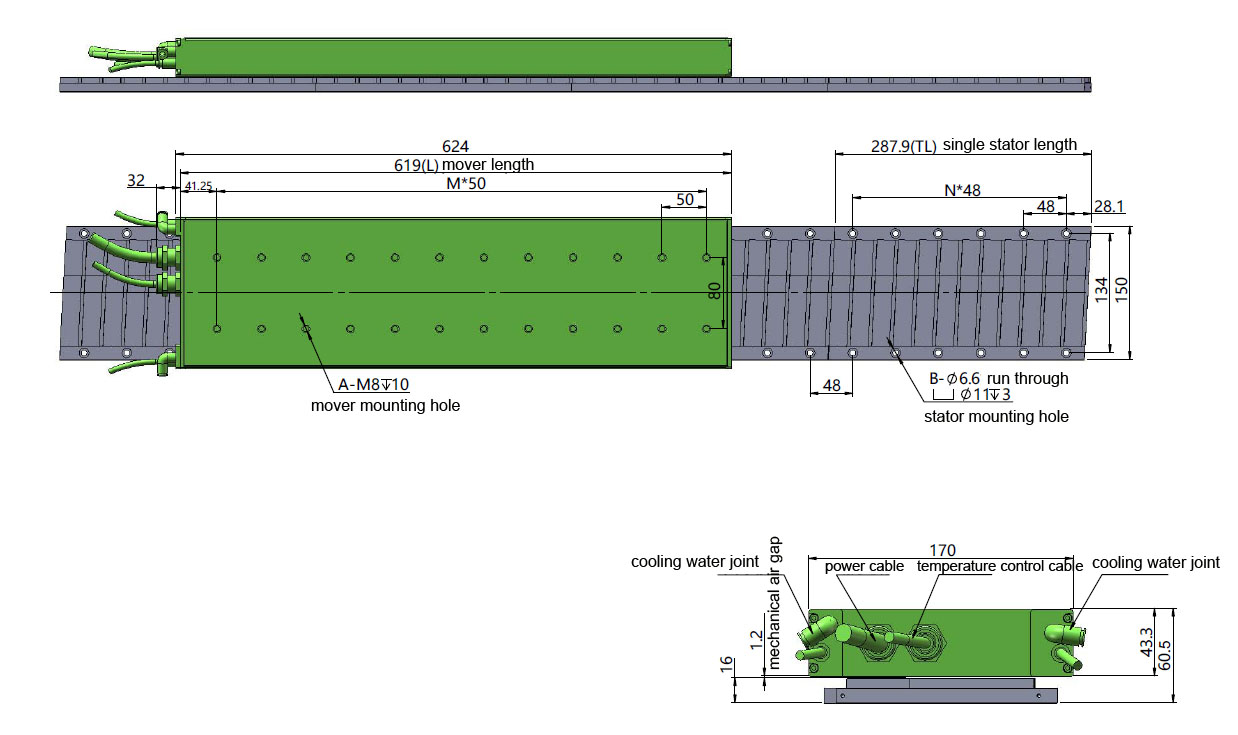

Dimension
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
LSMF610603E-P-H-WC
|
619
|
11
|
24
|
Remarks: 1. Standard cable length is 5m, maximum outer diameter(d) of motor cable is d= 13.5mm, minimum bending radius within chain is 101.3mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
LSMF3203A
|
287.9
|
5
|
12
|
LSMF3204A
|
143.9
|
2
|
6
|
Suitable for any mover of this series.

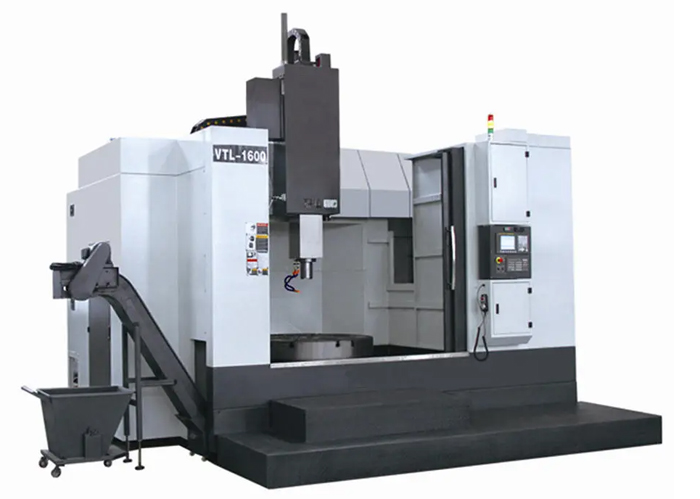

Application Case：Machine Tool
Water-cooling linear motor with its high acceleration, high spped, high prcision etc, widely applied to high precision cnc machine tool.
