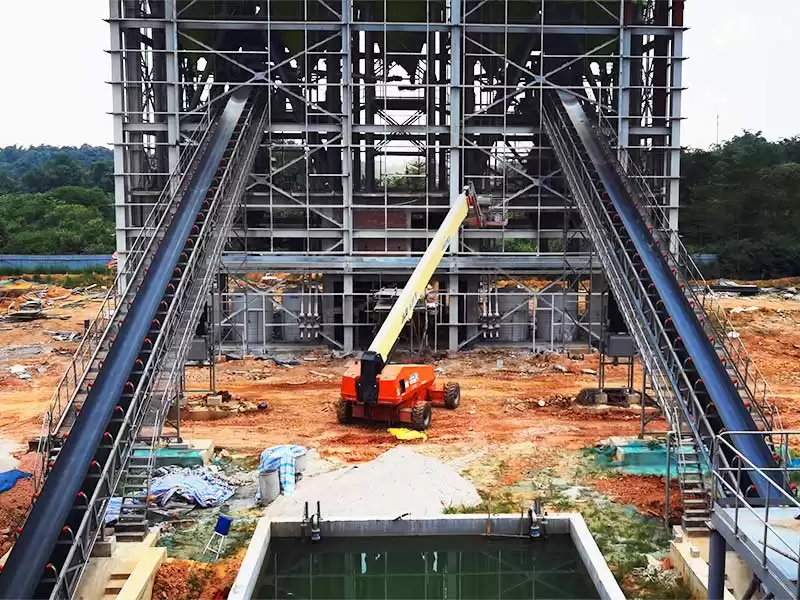

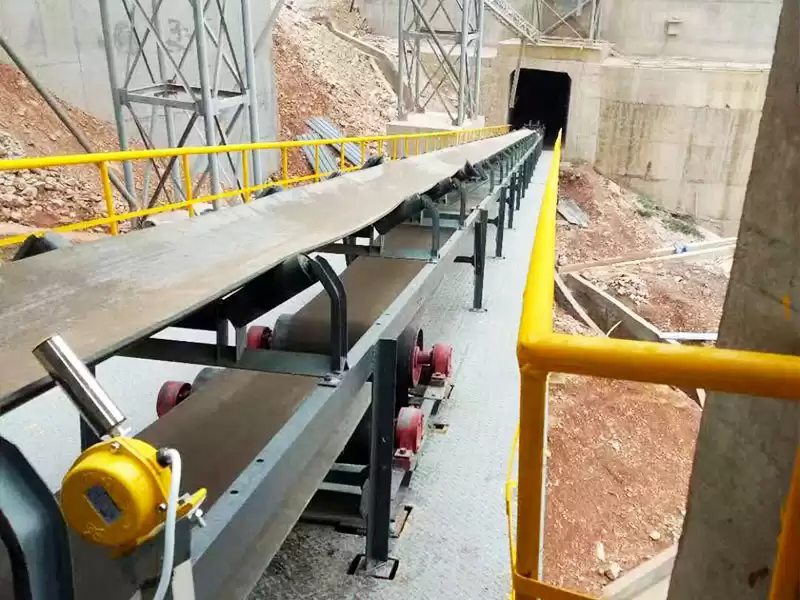

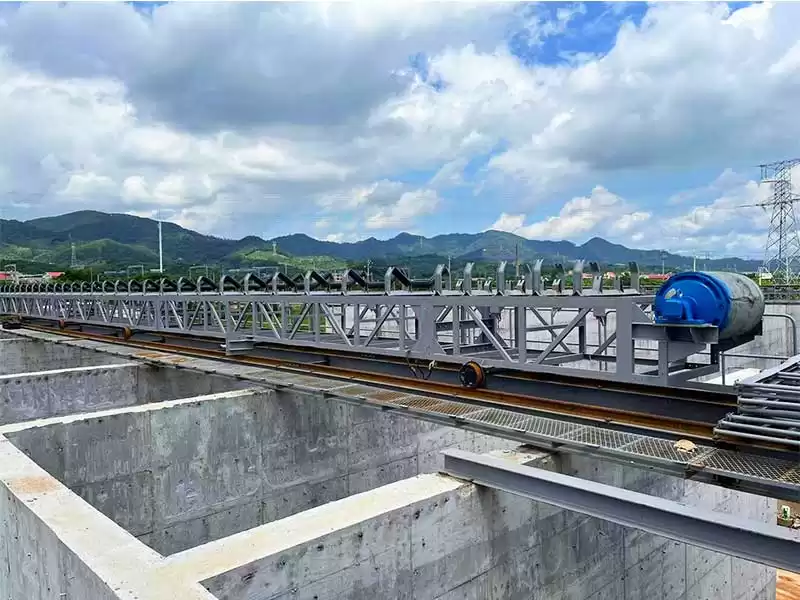

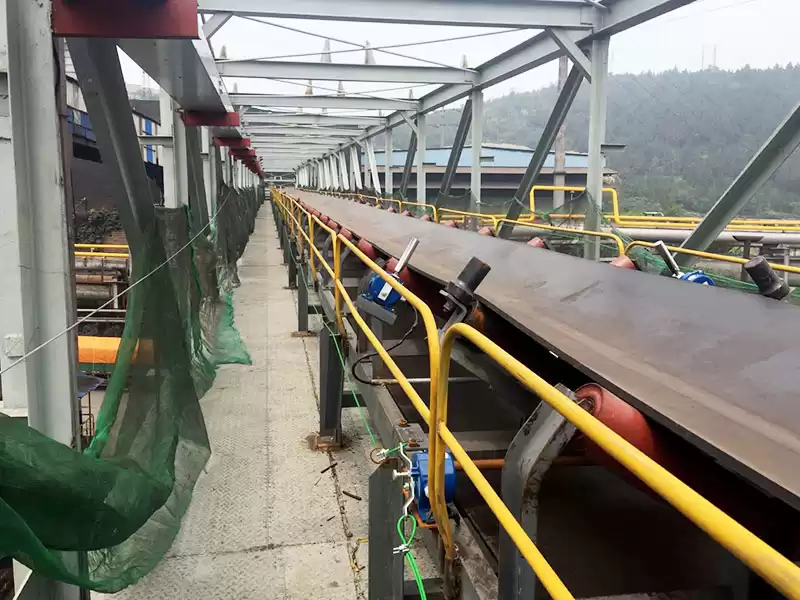

CAFU Machinery's conventional fixed belt conveyor currently supplies the following types: TD75,DTlI,DTlI(A) and so on.
They are widely used for conveying all kinds of bulk materials with the bulk density of 0.5~2.7t/m3, and the applicable ambient temperature is -20~+40℃.
Generally speaking, when the material temperature does not exceed 70℃, there is no need to choose a special conveyor belt.
When the material temperature exceeds 120℃, it is not suitable to choose the belt conveyor.
When conveying materials containing acid and alkali or oil substances, it is necessary to use oil-resistant or acid- and alkali-resistant special rubber belts and take appropriate protective measures.
Product Features
Simple structure, easy to install:
The main components include segmented frame, conveyor belt, drive unit, rollers, tensioner. All are bolted together, pre-assembled at the factory and require no welding on site.
Large capacity and high efficiency:
Capable of continuously conveying material to meet the material transfer requirements of mass production.
Long conveying distance, can achieve longer distance material transport, reduce the number of transfer and intermediate links.
Stable running speed, can work for a long time.
Low operating cost:
Simple structure and good generality of components, relatively low maintenance cost. Low energy consumption due to relatively low running resistance.
Easy to operate, safe and reliable
Equipped with control system with high degree of automation, including conveyor emergency stop control, running speed control, bearing temperature control system, tension control system, belt breakage catcher and so on.
Main Technical Parameters of High Quality Fixed Belt Conveyor
| Conveying capacity in m3/h for horizontal conveying |
| B (mm) |
V (m/s) |
| 0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
2.5 |
3.15 |
4 |
4.5 |
| 500 |
69 |
87 |
108 |
139 |
174 |
217 |
274 |
|
|
| 600 |
127 |
159 |
198 |
254 |
318 |
397 |
501 |
|
|
| 800 |
198 |
248 |
310 |
397 |
496 |
620 |
781 |
|
|
| 1000 |
324 |
405 |
507 |
649 |
811 |
1014 |
1278 |
1622 |
|
| 1200 |
475 |
593 |
742 |
951 |
1188 |
1486 |
1872 |
2377 |
2674 |
| 1400 |
661 |
825 |
1032 |
1321 |
1652 |
2065 |
2602 |
3304 |
3718 |
| 1600 |
874 |
1093 |
1366 |
1749 |
2186 |
2783 |
3444 |
4373 |
4920 |
| 1800 |
1118 |
1398 |
1747 |
2236 |
2970 |
3494 |
4403 |
5591 |
6291 |
| 2000 |
1388 |
1735 |
2169 |
2776 |
3470 |
4338 |
5466 |
6941 |
7808 |
| 2200 |
|
|
|
|
|
|
6843 |
8690 |
9776 |
CAFU offers comprehensive solutions for industrial belt conveyor design, manufacture and installation, providing high-quality products to a diverse range of customers. Our technical team is committed to innovation, ensuring that our conveyors are consistently equipped with the latest technology.
