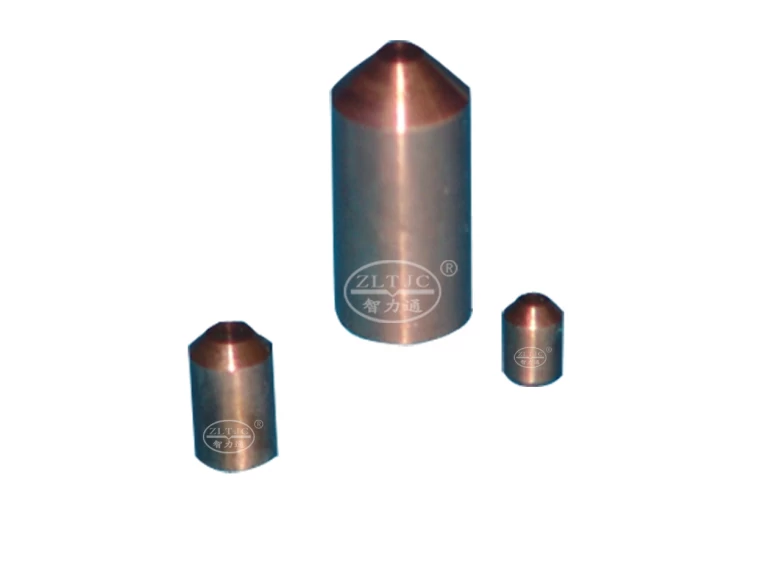

Copper Block

ZLT-JH, Copper Block conform to IEC 60695

Facebook Twitter Pinterest LinkedIn 分享
Copper Block


Model: ZLT-JH


Specification:


   Item No.  Material   Standard
  Copper Block                    ZLT-JH1     Diameter : 5.5mm ±0.01mm  Weight: 1.76g ±0.01g before drilling                              Material : high conductivity electrolytic copper C11000  IEC 60695-11-4 Figure 1
 Copper block                ZLT-JH2  Diameter: 9.00mm±0.01mm  Weight: 10.00g ±0.05g before drilling                             Material: high conductivity electrolytic copper C11000  IEC 60695-11-3 Figure 1
 Copper Block                ZLT-JH3  Diameter: 4.00±0.01mm X 6.00mm±0.03mm                                            Weight: 0.58g ±0.01g before drilling  Material : high conductivity electrolyti copper C11000  IEC 60695-11-5 Figure A1
 Copper Block                ZLT-JH4  Diameter : 9.00mm±0.01mm   Weight: 10.00g ±0.05g before drilling                                 Material: high conductivity electrolytic copper C11000  IEC 60695-11-2 Figure A7
