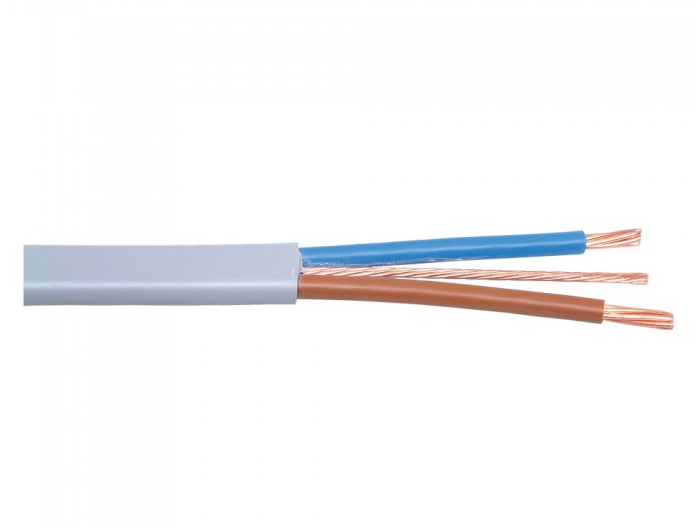

Flat cable Also known as FTE (flat twin and earth) the live and neutral conductors are individually insulated, and the Circuit Protective Conductor (CPC) or earth, is bare. Not suitable for unprotected use outside as the outer sheath materials are vulnerable to attack by UV although protective paint can provide some UV protection.

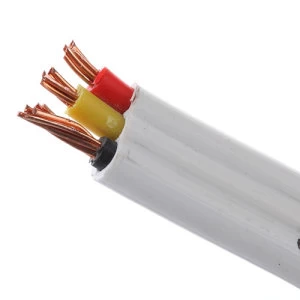

Copper core PVC insulated and Jacket Twin and Earth Flat Cable
Standard metric twin and earth cable sizes are:
1mm² 1.5mm² & 2.5mm² which have solid (non-stranded) conductors
4mm², 6mm², 10mm², 16mm² and higher have stranded conductors
1.5mm² is used typically for domestic wiring circuits and 2.5mm² twin and earth is used in domestic power circuits
LSF, LSOH, OHLS Twin and Earth Cable
Low Smoke and Fume cable, Low Smoke Zero Halogen cable or Zero Halogen Low Smoke cable are designed to minimise the release of toxic fumes when subjected to fire or burning. In an emergency situation escape is improved by the reduced smoke
Application:
In dry and damp rooms, locations and store rooms where subjects to fire and explosions hazards, but not for undergrounding laying. For permanent installation clear from or in and under plaster.
Feature:
1. Conductor : Solid or stranded plain annealed copper
2. Applicable Standard : BS6004
3. Operating temperature: Max. Rated conductor operating temperature is 70oC
4. Rated voltage: 300/500V
5.Sheath color: white, grey,etc.,
Construction:
1.Conductor: Solid or stranded Plain annealed copper
2. Insulation:PVC (Polyvinyl-Chloride)
3 .Sheath/Jacket: PVC (Polyvinyl-Chloride)
