THHN/THWN cables excellent resistance to hydrocarbons, good chemical stability, excellent oil resistance, liquefied gas and gas corrosion, effectively improving the reliability and service life of the wire (the aging performance test proves that the BVN wire is more than the original The life of PVC-type wires used is at least doubled, ie 40 years or more.

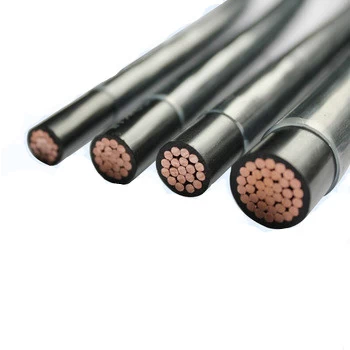

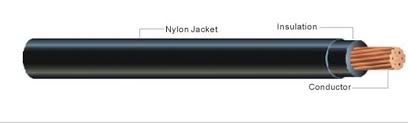

Copper conductor PVC Insulation Nylon Sheath THHN/ THWN Cables
1). Rated Voltage: 600V
2). Application: electric equipment, household, and electrical appliance.
3). Rated Temperature:
THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry
THWN-2: 75°C Oil, 90°C Wet, 90°C Dry
TWN 75: - Oil, 75°C Wet, - Dry
4). Standards: UL83
5). Type size: 18AWG, 16AWG, 14AWG, 12AWG, 10AWG, 8AWG, 6AWG, 4AWG, 3AWG, 2AWG, 1AWG, 1/0AWG, 2/0AWG, 3/0AWG, 4/0AWG
6). Package: roll or drum

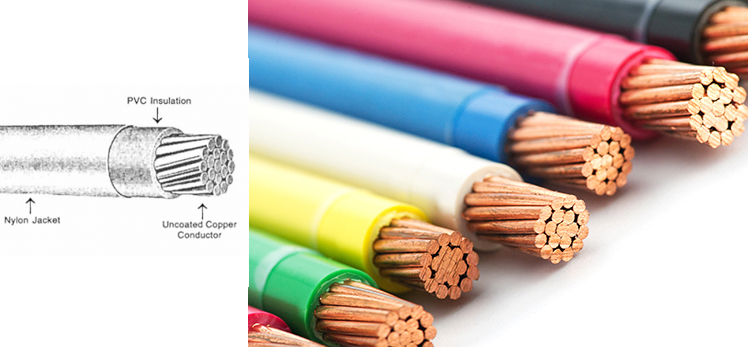

Available colors: Black, White, Blue, Red, Yellow, Green, Orange and according to customer's request.
