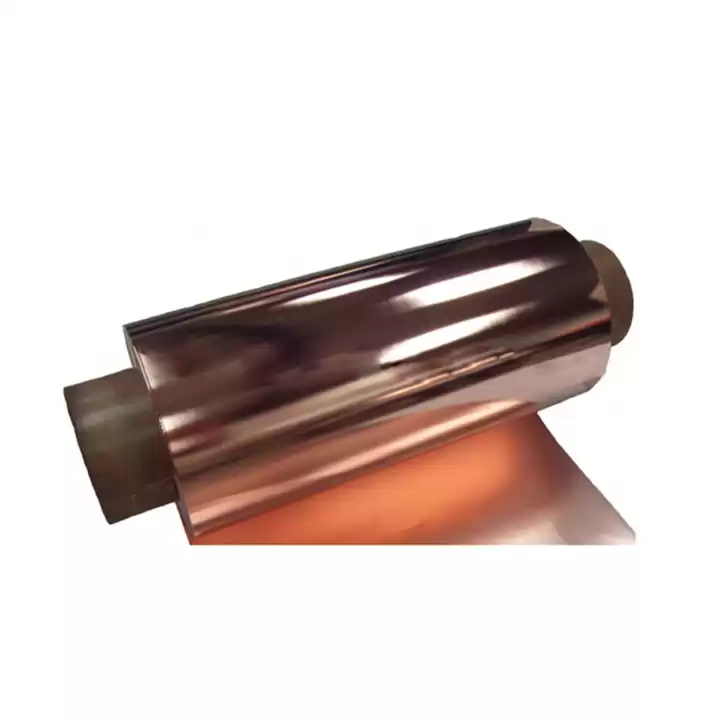

Lithium Ion Battery 12micron Copper Foil
Width:150mm Lenght: 383m Thicness:12um
Mode:TMAX-C12
|
Copper foil for battery anode substrate
|
|
Item
|
Data
|
|
width (mm)
|
150
|
|
Thickness (um)
|
12
|
|
areal density (g/m2)
|
105-110
|
|
Purity(%) More than 99.9%
|
Cu ≥99.9%
|
|
Fe < 0.0010%
|
|
Bi < 0.00020%
|
|
Pb < 0.0005%
|
|
Tensile strength (MPa)
|
≥305
|
|
Normal elongation(%)
|
3.0
|
|
High temperature Tensile strength180℃(MPa)
|
≥153
|
|
High temperature elongation180℃(%)
|
2.5
|
|
Anti oxidization(180℃ Heating 1h)
|
No oxidation of points on the surface,The color does
not change,Copper foil without fracture
|
|
Surface roughness(um)Rz
|
Drum side(um)
|
Less than 0.35
|
|
Matte side(um)
|
Less than 4.0
|
|
Surface tension(dyne/cm)
|
Drum side
|
68
|
|
Matte side
|
68
|
|
Coating performance
|
Cu foil with uniform tension on both sides,
slurry coating uniformity
|
