The Control Cable products can be produced according to the standard GB9330-1988, and Control Cables are suitable for the connection of controlling electrical equipments and instrument meters, monitoring and controlling return circuit, protecting and measuring in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.

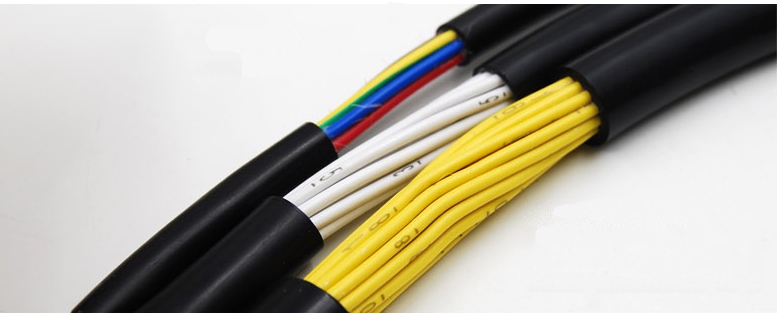

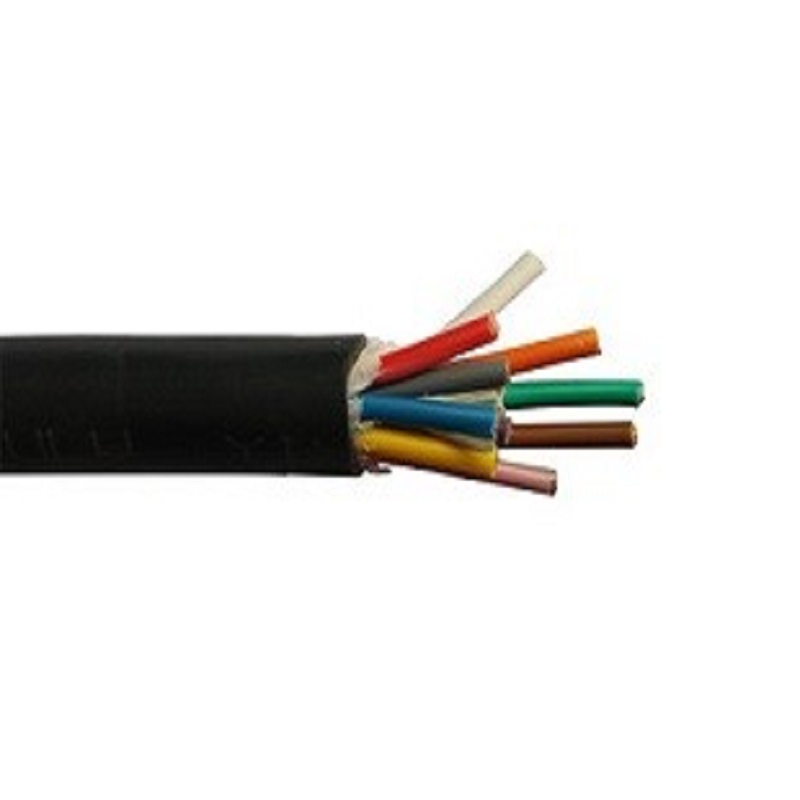

Low Voltage Pvc Flexible Copper Wire Multi Core 2.5mm Electric Control Cable
Application of control cable :
Laid indoors, and in tunnels, pipelines(include cable duct), and can not bear external mechanical forces.
Characteristics of control cable :
-
Rated voltage: 450/750V
-
Standard applied: IEC 60227, BS 6004, VDE 0281, JB/T8734
-
Max. working temperature: 70 °C ,can be 90 °C ,105 °C and 125 °C as per requirement
-
Insulation: PVC,LSOH material
-
Number of cores: multi-core for this type of cable
-
Cross sectional area: 2*0.75mm2 to 61*2.5mm2 available
-
Cable color: red,black,green and yellow and so on
-
Packing: 100M/roll, as per customer's requirements
-
Quality certificate: CCC,CE, IEC.Company certificate: ISO9001,ISO14001,OHSAS18001
-
OEM and customize can be available
