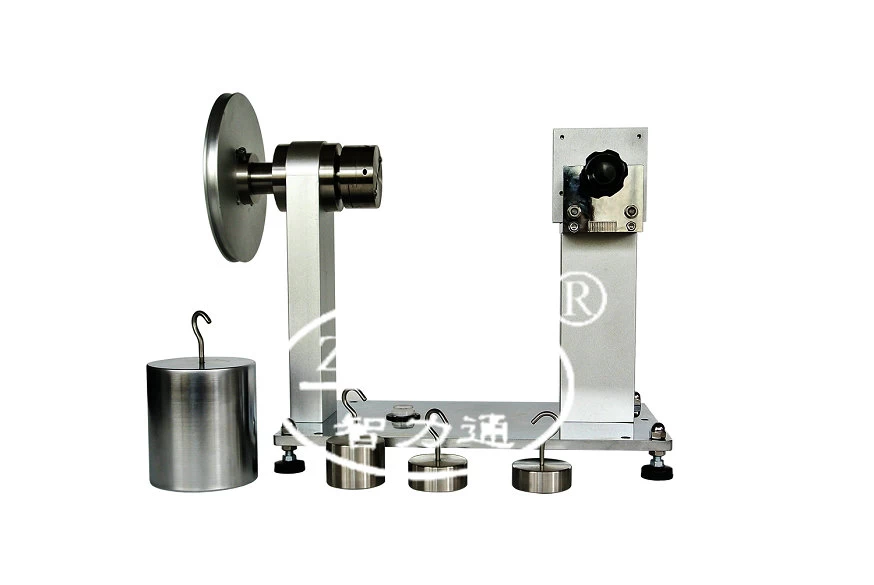

Cord Anchorage Torque Test Apparatus
Product details: Model ZLT-LJ4
To torque test of plugs and connectors provided with a flexible cable,rated current 13A to 400A, torques 0.6 N.m to 11 N.m, according to IEC62196 clause 25.3 and table 19.
Standard Outfit:
1 hollow shaft, with drill chuck, rope wheel and crank handle,
1 idler pulley, radius 0,1 m,
1 set of load weights 6 N-7 N-12 N-15 N-23N-110 N to produce the torques 0,6 N.m-0,7N.m-1,2 N.m-1,5N.m-2,3N.m-11,0N.m
