Core Insert Die Punch Pin

We as a manufacture are specialized in all kinds of precision core pins cavity pin inserts pins, provide best price, good quality and on-time delivery. Click here for inquiry!



Core Insert Die Punch Pin


Product Detail:

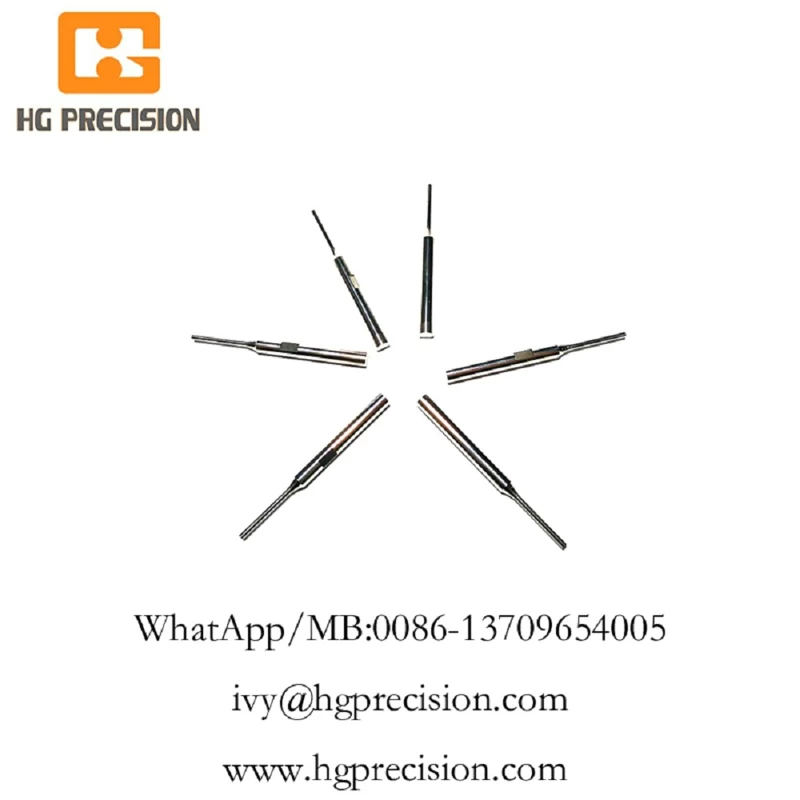

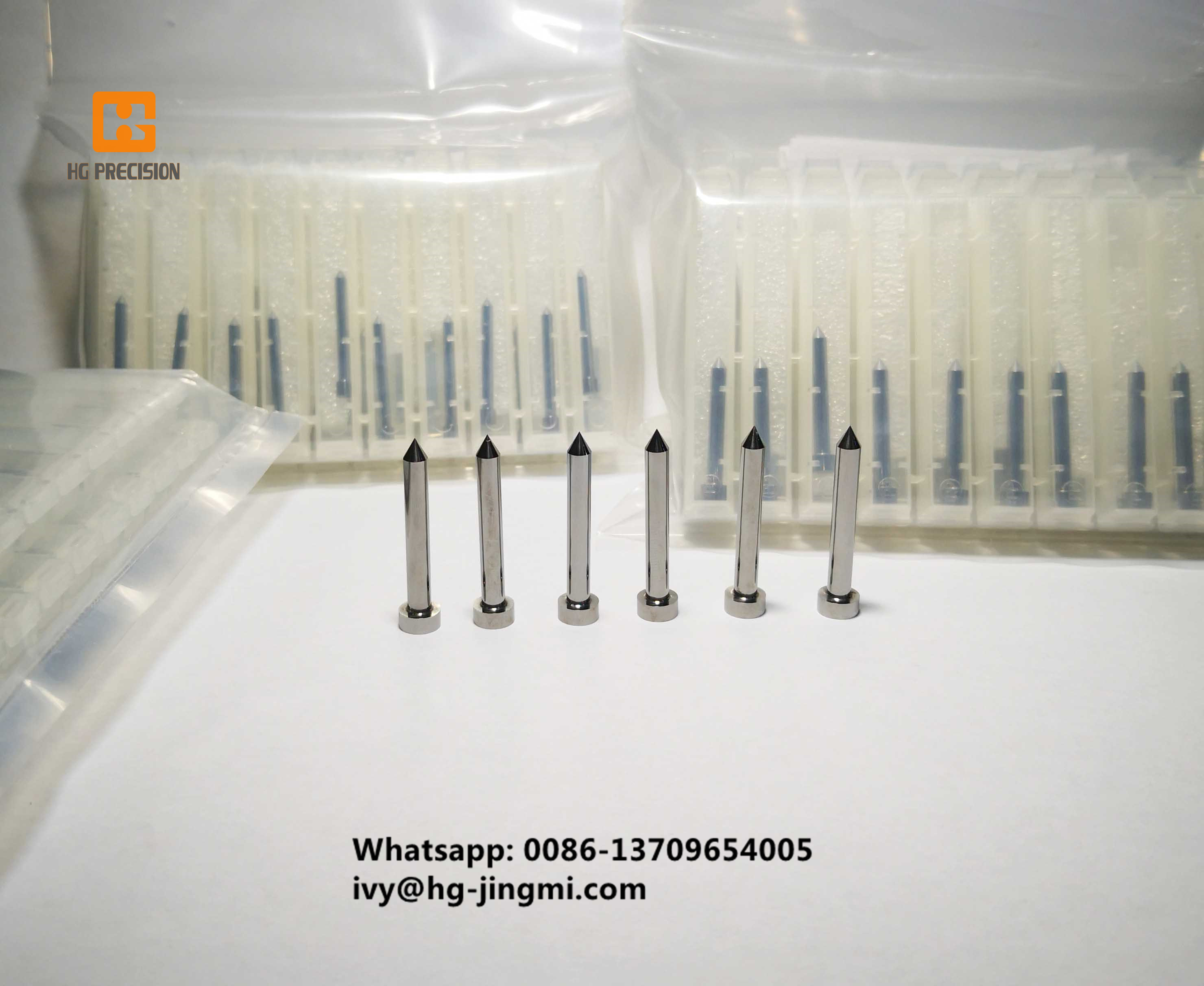

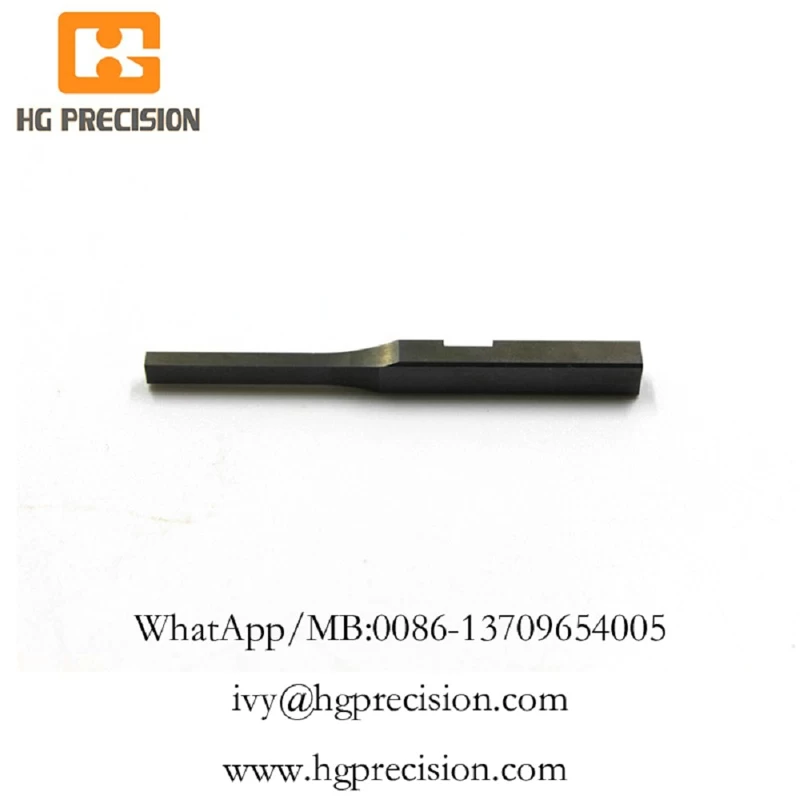

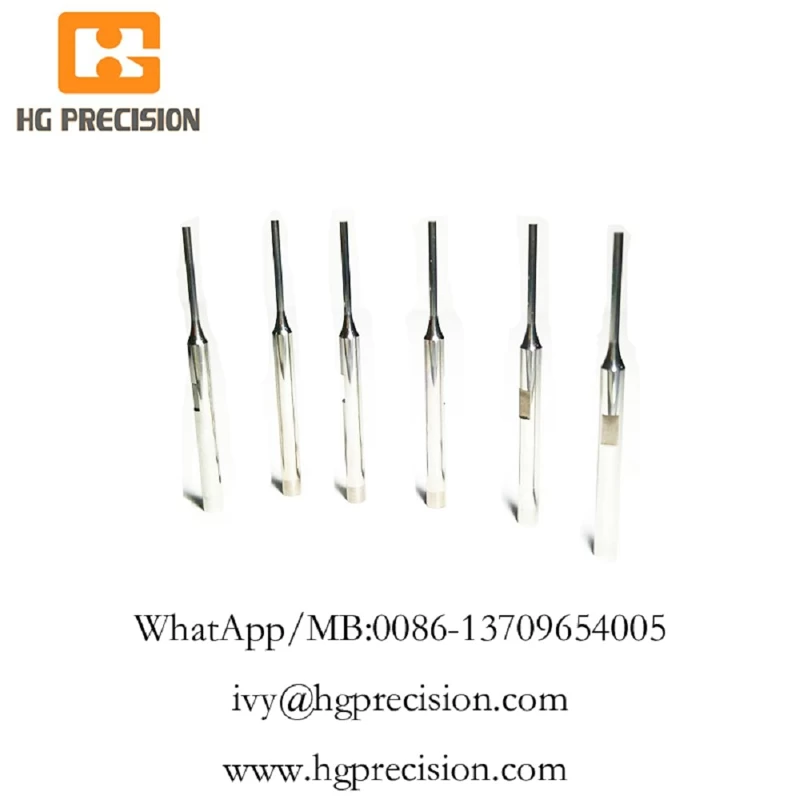

Polishing grinding mold core pins, insert pins for medical consumables, communication fiber plug core

Minimum Order Quantity: 1pc

Delivery Time: 4-6 days per sample quantity; 6-12 days per mass production

Material: 1.2343, 1.2344, SKH-9, Carbide V30, G5, KG7, KD20, STAVAX or Assab, Bohler, etc.

Quality Assurance:

Size tolerance within: +/-0.002mm

Axiality within 0.005mm

Surface roughness within Ra0.6

Verticality within 0.005mm

The multi-cavity is well-matched

Further dimension, lengths and materials available per request.

Machinery& Equipment:

CNC Machining center, CNC Milling machine, CNC lathe machine, CNC Turning

EDM, Wire-cutting by SODICK Or Mitsubishi, Seibu Brand

OD grinding, ID Grinding, surface grinding machine

Jig grinding machine

Profile grinding machine

Special designed machine for core insert die punch pin, material is carbide, automotive, capacity can be 3000pieces per months.


Why choose us

1.      We as a manufacture are specialized in all kinds of precision core pins, pilot pin, insert core punch.

2.      Good experience of over 10years to make stamping die parts, injection die parts, auto parts, metal-working products.

3.      Have advanced production equipment and experienced operators, we have special design machines for making carbide punch pin, standard or non-standard carbice punch, capacity can be 3000pieces per month.

4.      Good experience of OEM& ODM for customers

5.      On-time delivery, good quality, and good price

Package Information:

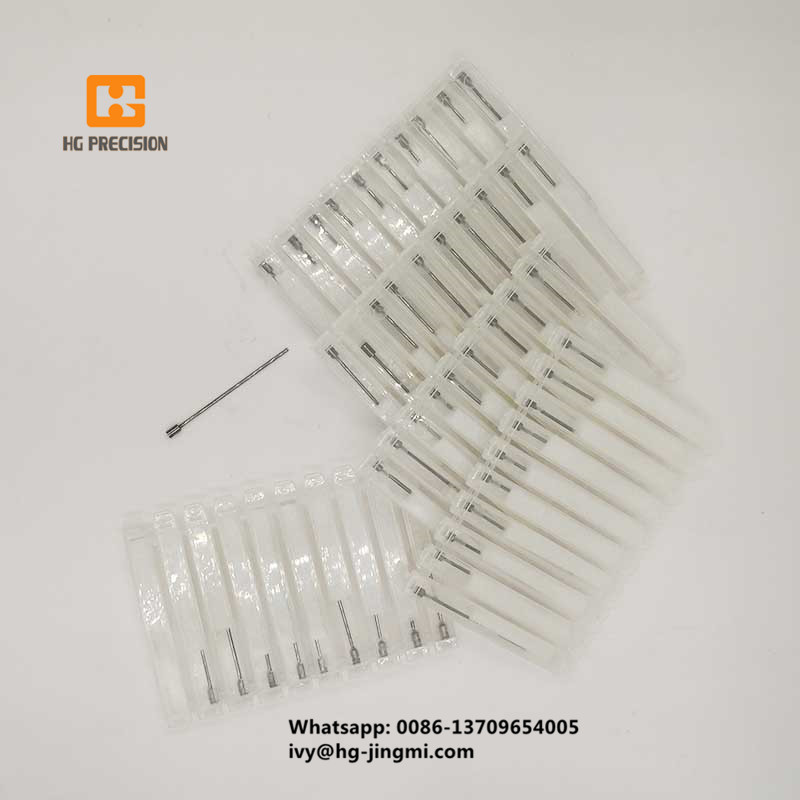

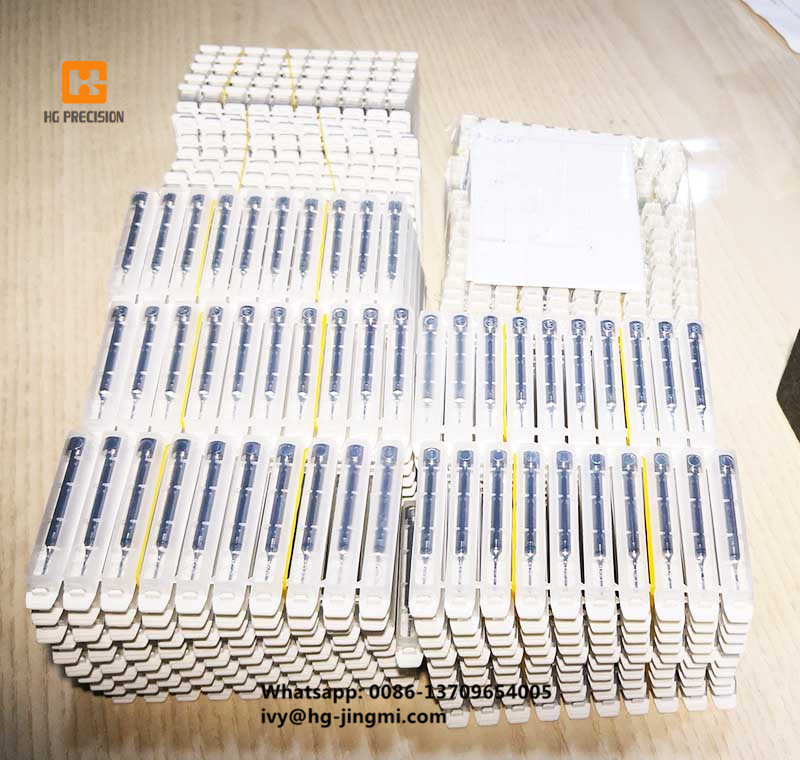

Sample parts is by our standard safety package, mass production is by the customized package.

How to order:

1.      Send us drawings or sample or standard code& size

2.      We will quote you within 4 hours

3.      Get agreement with price and sign PO or contact.

4.      Make payment per PI

5.      If sample required, we will send sample to customer for approval

Shipment:

DHL, UPS, TNT, FEDEX, OCS, EMS, or special express lines per customer request
