Corrosion resistant solenoid valve for aviation

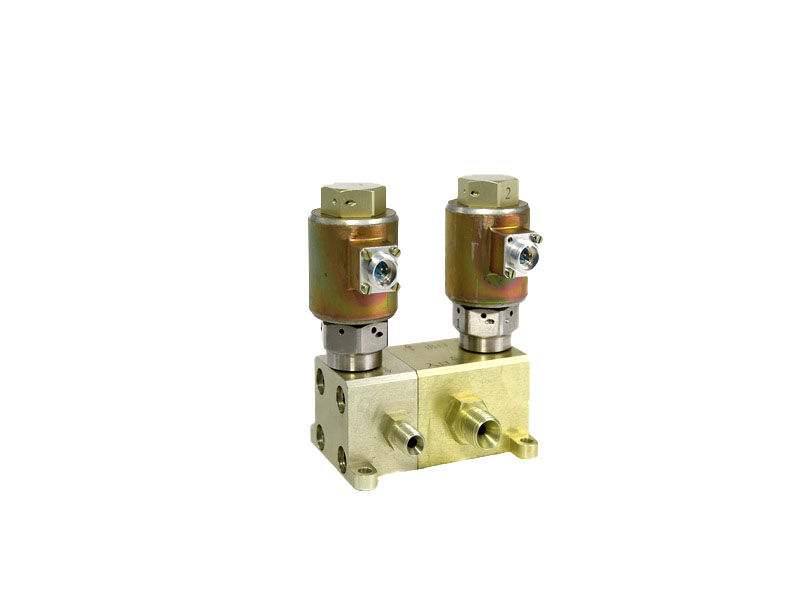

Latching Solenoid Valve
Feature
Keep the Original State after Outage,Energy Saving,Fast Response
Response capability: it can work normally under low temperature and high pressure, realize millisecond fast opening and closing, instantly change the gas flow path of the pipeline, and accurately control the direction, flow and speed of the medium.
Sealing performance: it can achieve zero leakage and the design of soft and hard sealing surface. The valve core is formed by non-metallic hot pressing, and the sealing surface of the valve seat is processed by high grinding process. The sealing performance can achieve zero leakage under high and low temperature conditions.
Application industry：
Quick response latching solenoid valve is mainly used in aerospace arrow valve and engine valve, shipbuilding and nuclear industry
Technical Parameters
|
Working Pressure
|
2MPa~5MPa
|
|
Working Voltage
|
23V~30V
|
|
Working Temperature
|
-50℃~50℃
|

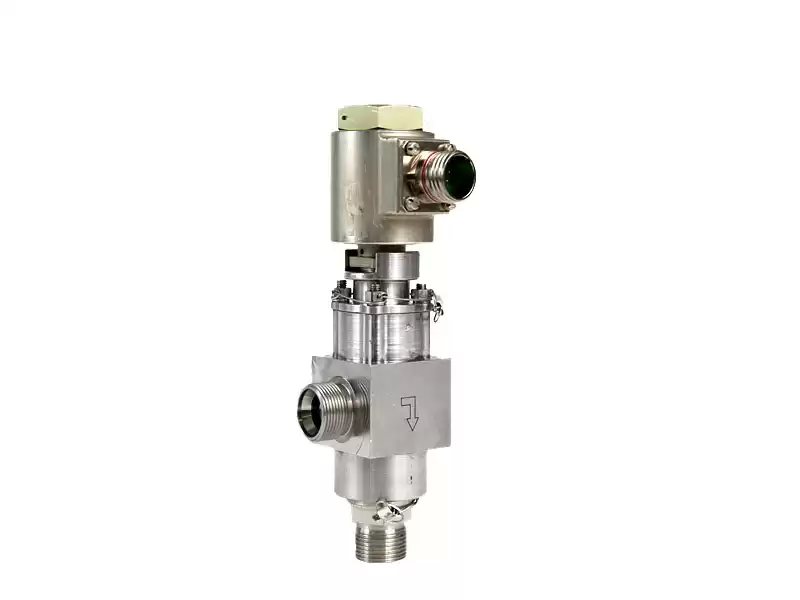

High Pressure Solenoid Valve
Feature
Low Temperature,High Pressure,Ultra High Pressure ,High Reliability
Technical Parameters
|
Structure Type
|
Direct Acting Type ,Pilot Operated Type
|
|
Working Pressure
|
1.5MPa~35MPa
|
|
Nominal Diameter
|
Φ6mm~Φ100mms
|
|
Medium
|
Air,Helium,Nitrogen
|
|
Working Voltage
|
27V±3V
|
|
Weight
|
0.9kg~1.5kg
|
|
Service Life
|
≥5,000 times
|
