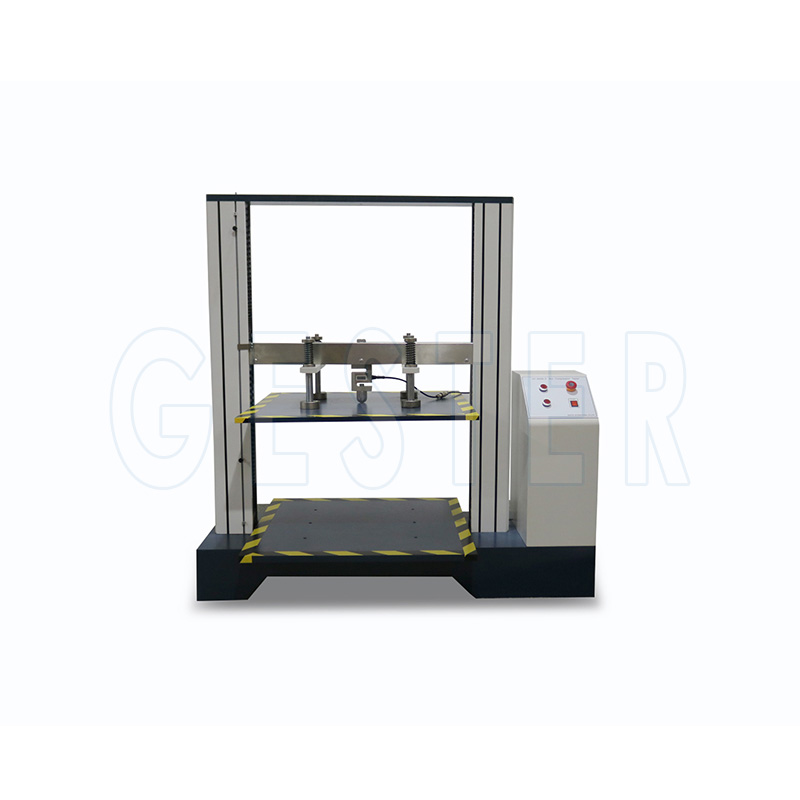

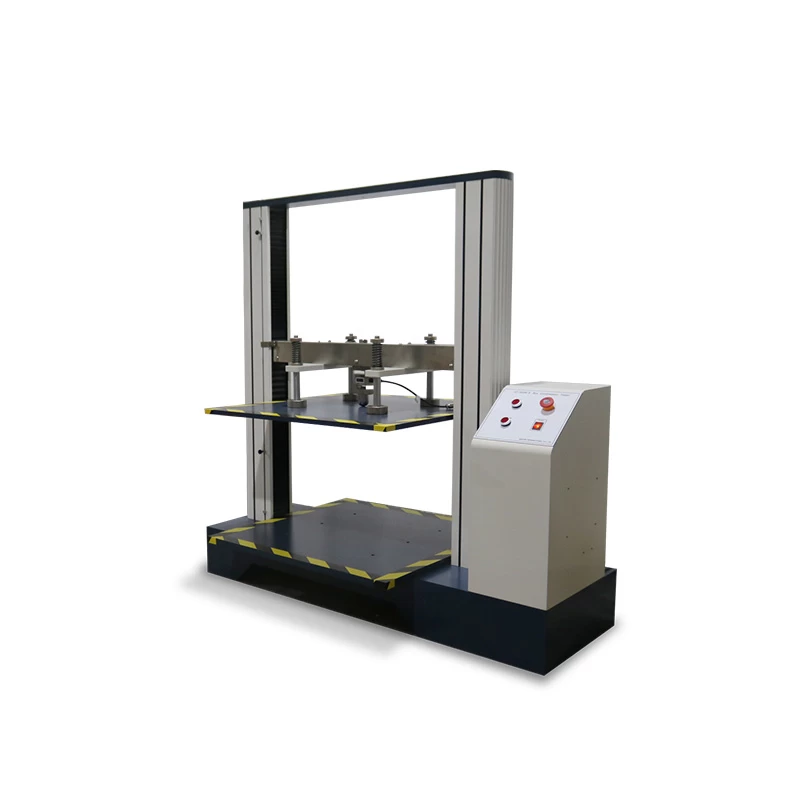

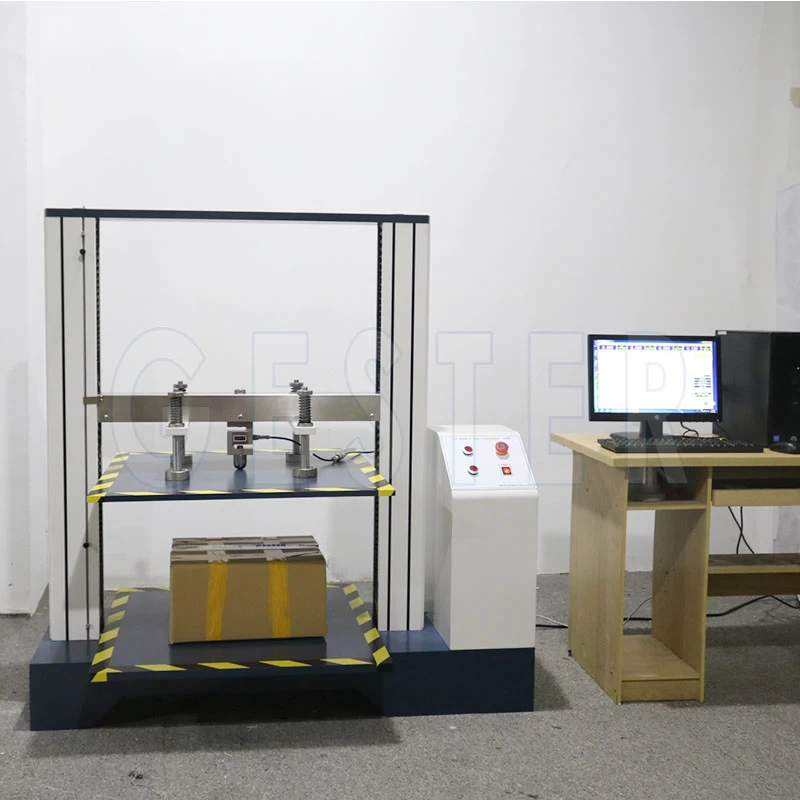

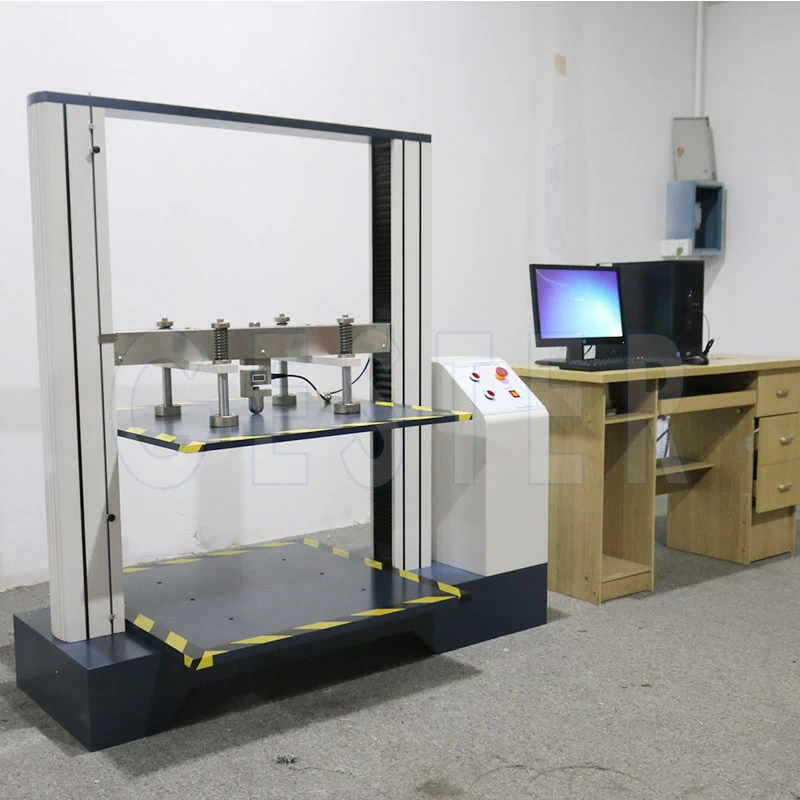

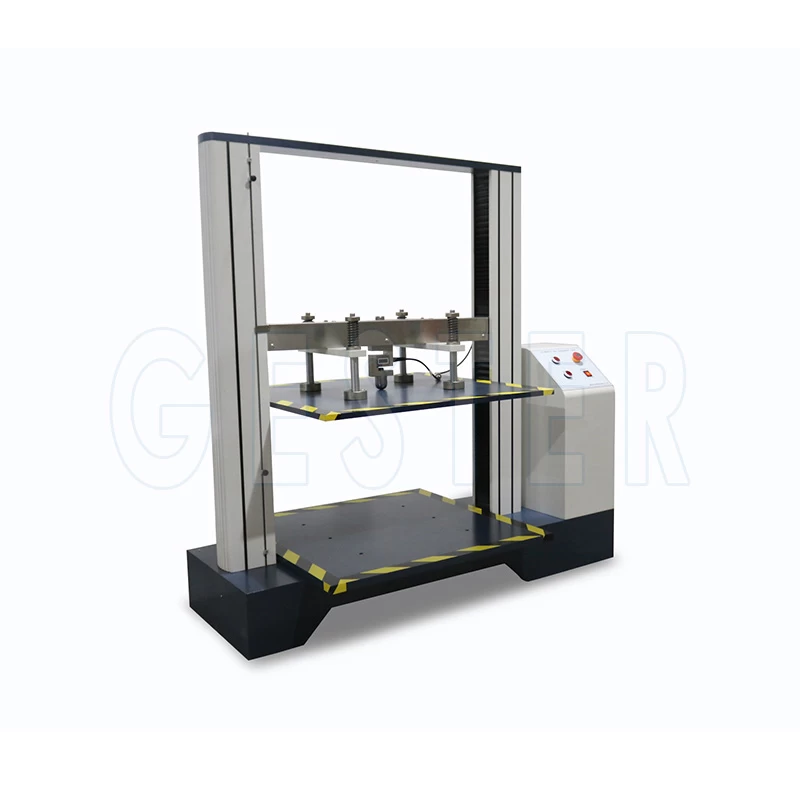

Corrugated Box Compression Strength Tester GT-N02B

Corrugated Box Compression Strength Tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN.

  • certificateISO 9001, UKAS, CE
  • standard
Facebook Twitter Pinterest LinkedIn 分享


Corrugated Box Compression Strength Tester

Applications:

Corrugated Box Compression Strength Tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed.



Standards:

ISO2872, ISO2874, ASTM D642



Feature:


  • Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
  • There are two parameters which are to be set in the constant value test: load force value.
  • Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).
  • The overall system is in good parallelism, stationarity and high return speed.



Key Specifications:

Model

       GT-N02B



GT-N02B-1

GT-N02B-2

GT-N02B-3

GT-N02B-4

Plate Size(mm)

500 x 500

600 x 600

800 x 800

1000 x 1000

Max Stroke(mm)

500

600

800

1000

Column Number

  2

Measuring Range

  0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Optional)

Indication Error

  ±0.5%

Test Speed

  0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips

Force Unit Switch

  Kgf, N, Ibf, g, ton, Mpa

Display

  Computer display mode

Stop Mode

  Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Drive

  Servo motor drive, synchronous wheel and precision ball screw drive

Power Supply

  AC 220V 5A 50Hz
