Cost-Effective And Energy-Efficient Smart Series LED Troffer

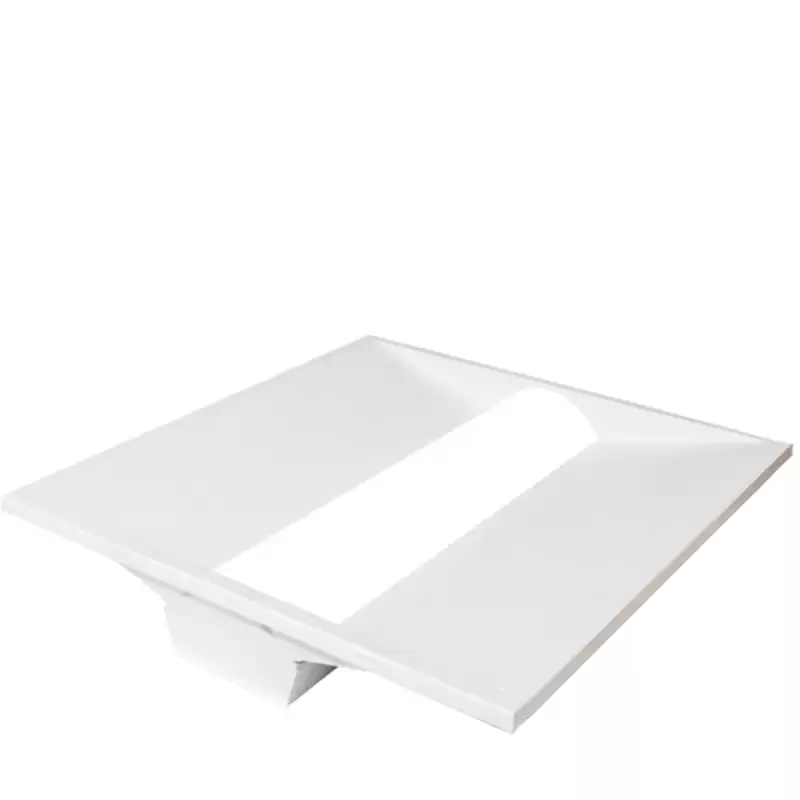

AirTunes LED Troffer delivers soft, glare-free, ambient lighting in popular center-basket design. The center-basket LED troffer is a low-profile design that offers a clean, versatile style and volumetric distribution. Compared with traditional light sources, the slim profile appearance and high-efficiency LED engine can save energy and reduce maintenance costs, making it an ideal choice for new buildings. It provides a series of dark slots, which can be used in conjunction with MORSTAR wireless lighting control system to control fixtures.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.
FEATURES:
• Long-life LEDs coupled with high-efficiency drivers, it provides superior quality of illumination for extended service life
• Excellent luminaire efficacy provides significant energy savings, whose power efficiency up tp 88%
• To ensure trouble-free operation, protection is provided against output over-current, output over-voltage
• Short circuit. LED boards are easily accessible from below.
• Options: CCT+power adjustable; APP smart control: bluetooth; daylight+PIR sensor
|
SPECIFICATION
|
HTF301B22
|
HTF302B22
|
HTF303B22
|
HTF303B24
|
HTF304B24
|
HTF305B24
|
|
Normal Type
|
|
Power Consumption
|
26W 2X2ft
|
32W 2X2ft
|
40W 2X2ft
|
32W 2X4ft
|
40W 2X4ft
|
50W 2X4ft
|
|
Equivalent Wattage
|
60W CFL
|
80W CFL
|
120W CFL
|
80W CFL
|
120W CFL
|
140W CFL
|
|
Lumens Delivered
|
3,250 lm
|
4,000 lm
|
5,000 lm
|
3,250 lm
|
5,000 lm
|
6,250 lm
|
|
Efficacy
|
125 lm/W
|
|
CRI
|
>80
|
|
Color Temperature
|
WW:3465±245K; NW:3985±175K;
DW:5028±285K
|
|
Input Voltage
|
100-277V
|
|
SPECIFICATION
|
HTF301E
22CP
|
HTF302E
24CP
|
HTF303A
22AP
|
HTF304A
24AP
|
HTF305A
22AP
|
HTF306A
24AP
|
|
CCT+Power Adjustable
|
APP Smart Fixture
:
Bluetooth; daylight+PIR Sensor
|
|
Power Consumption
|
26-32-40W
2X2ft
|
32-40-50W
2X4ft
|
33W
2X2ft
|
50W
2X4ft
|
26W
2X2ft
|
40W
2X4ft
|
|
Equivalent Wattage
|
120W
CFL
|
140W
CFL
|
100W
CFL
|
140W
FCL
|
100W
CFL
|
130W
CFL
|
|
Lumens Delivered
|
5,000
lm
|
6,250
lm
|
3,750
lm
|
6,250
lm
|
3,770
lm
|
5,800
lm
|
|
Efficacy
|
125 lm/W
|
|
CRI
|
>80
|
|
Color Temperature
|
3500-4000-5000K
Adjustable
|
WW:3465±245K; NW:3985±175K; DW:5028±285K
|
|
Input Voltage
|
100-277V
|
CONSTRUCTION:
• Cold-rolled steel light body increases durability. Only 2.60'' thickness.
• Diffuser is extruded from impact modified polycar-bonate. Easy maintenance.
RECOMMENDED USE:
• The modern architectural style compliments any space, such as shools, offices, hospitals, banks, healthcares and more.
• Working temp:-20~40ºC(-4~104ºF). Storage temp.:-30~60ºC
WAARRANTY：
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -4°F to 104°F.

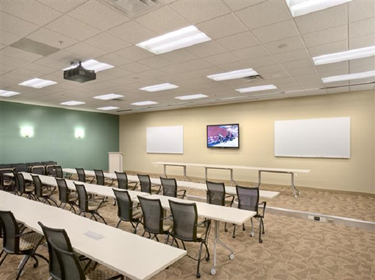

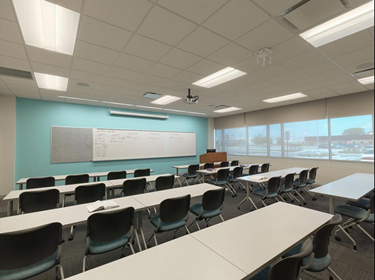

APPLICATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American. And we have LED lighting distribution warehouses in California, Texas and Michigan.
6. Can you design a new model?
- Yes, we can open new mould according to your drawings and produce.
