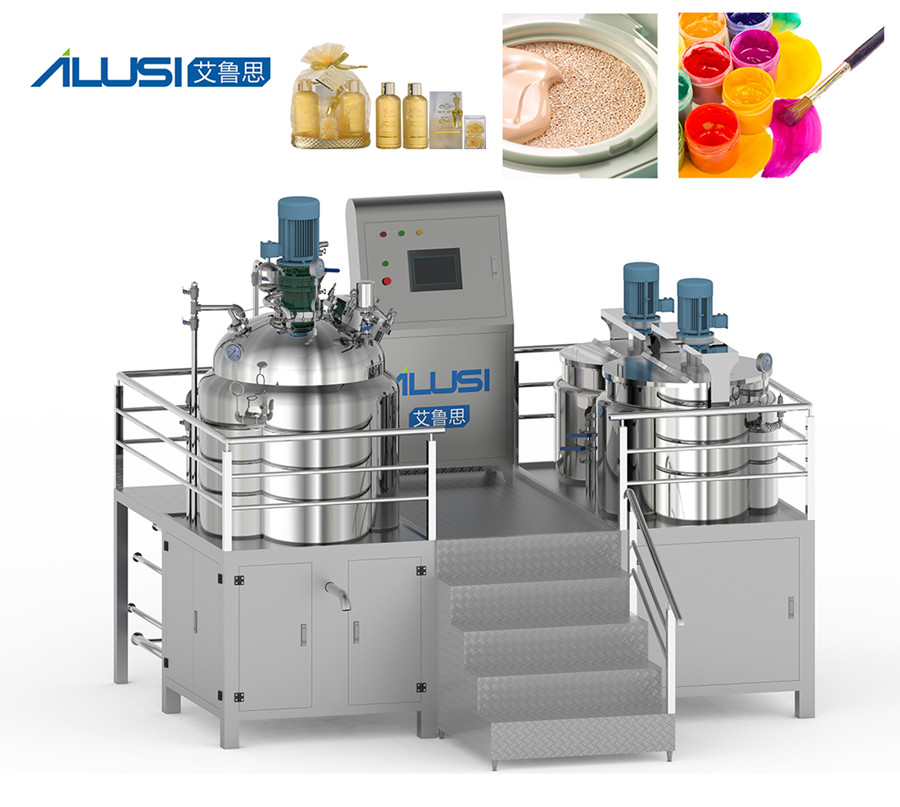

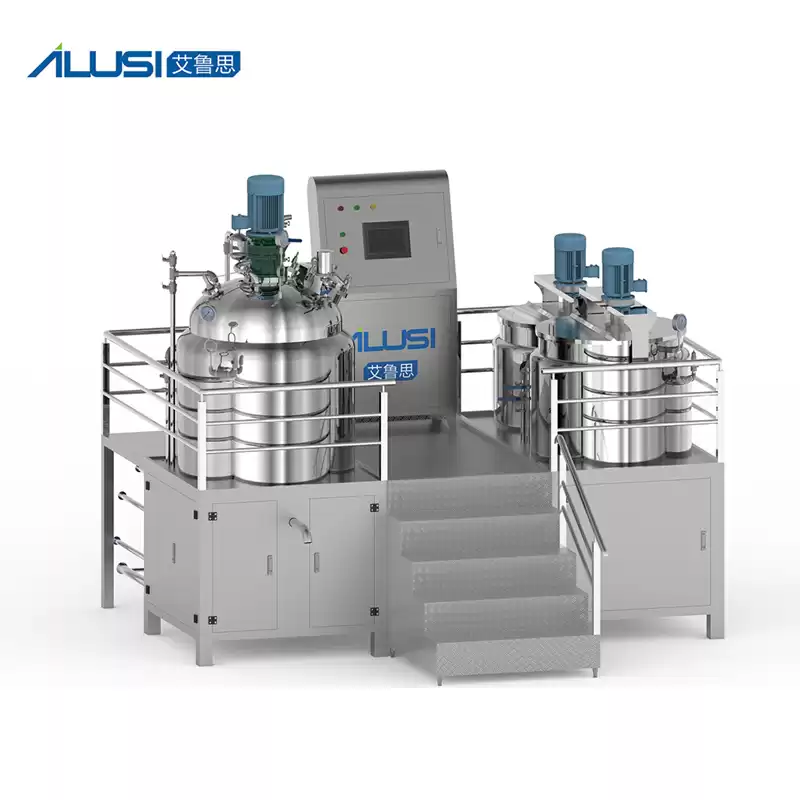

Main Features:
● Fixed Vacuum Mixing Machine Capacity: 50L-5000L and other general specifications and non-standard design and production.
● The Emulsifying Tank lid adopts a Vacuum system, easy to clean, the emulsifying tank can adopt Positive pressure discharge.
● The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust.

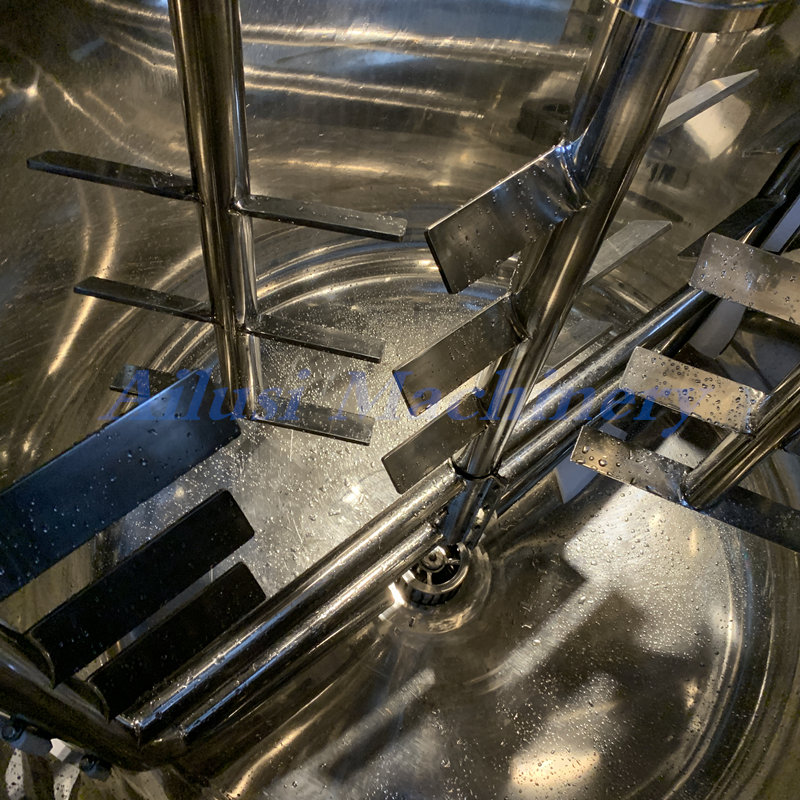

● PTFE scraping board cater to the body of blending groove and scrape out viscosity material on the boiler wall.
● Homogenizer is installed on the Fixed Vacuum Making Machine bottom to increase motor power more thoroughly and strongly. During a few productions, it can exert the homogenizing effect fully.
● Mightiness balance isotactic curve rotor is matched with the stator to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream.
● Boiler body and pipe surface mirror polishing 300 mesh (sanitation grade) accord with Daily chemical and GMP regulation.
● SIEMENS frequency converter for speed adjustment of 0-3000 rpm, which can meet the production of different technology requirements.
● Burgmann mechanical sealing for Vacuum Mixing Making Machine, good sealing effect, and long working life. Material contact parts all use SUS316L stainless steel.

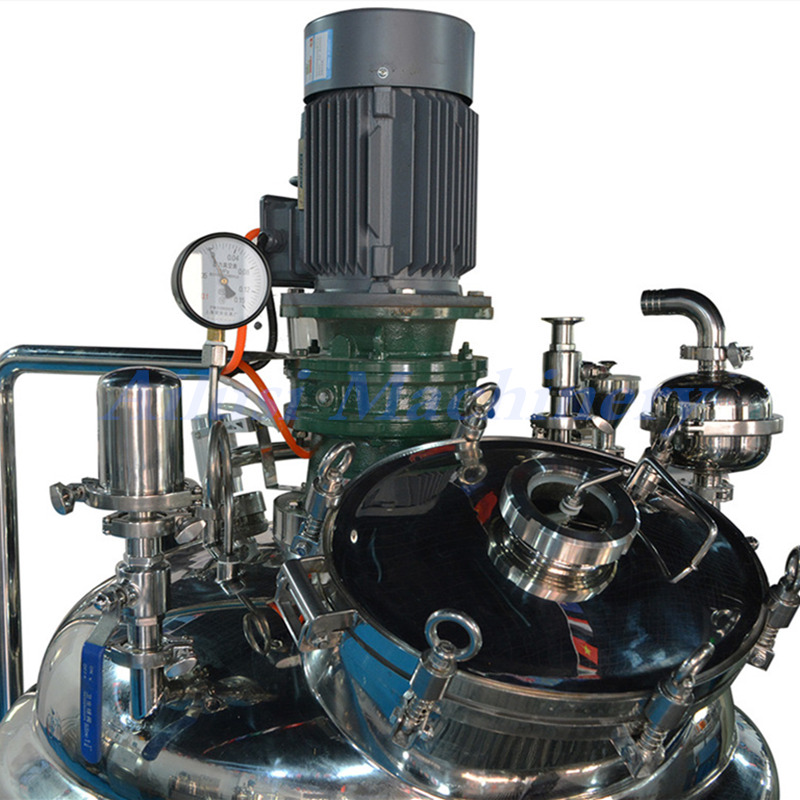

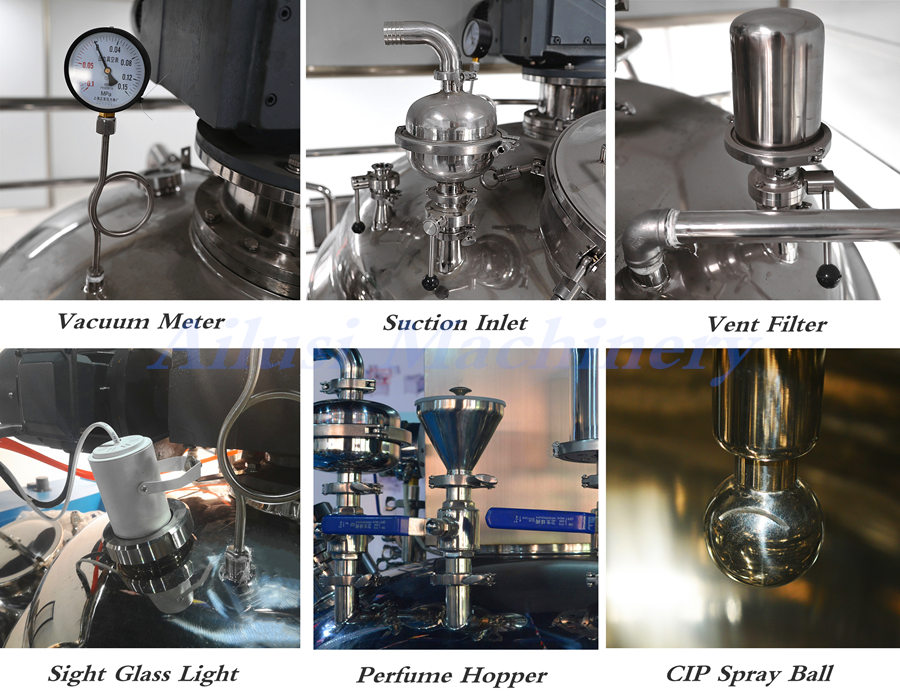

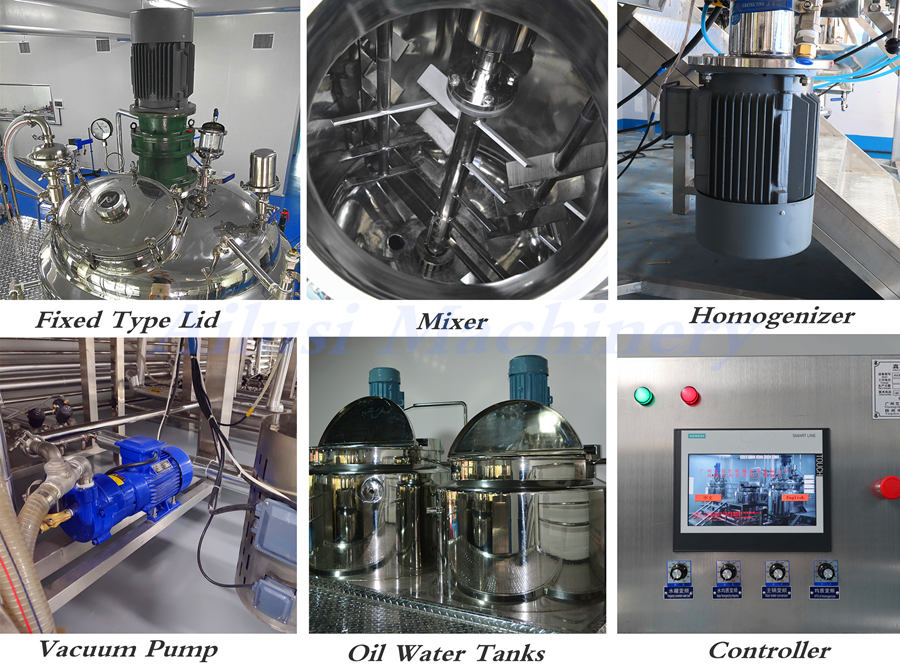

Lip Parts for Fixed Type Vacuum Mixer:
Beautiful parts design and high practicability.
|
capacity (L)
|
Agitator power (kW)
|
Speed (rpm)
|
Homogenizer power (kW)
|
Speed (rpm)
|
Oil/Water tank (L)
|
Agitator power (kW)
|
Speed (rpm)
|
Hydraulic (KW)
|
|
50
|
1.5
|
0~75
|
2
|
0~3600
|
20/45
|
0.37/0.37
|
0~1440
|
0.75kw
|
|
100
|
2.2
|
0~75
|
3
|
0~3600
|
40/90
|
0.55/0.55
|
0~1440
|
0.75kw
|
|
200
|
3
|
0~75
|
5.5
|
0~3600
|
80/180
|
0.75/0.75
|
0~1440
|
1.1kw
|
|
300
|
4
|
0~75
|
5.5
|
0~3600
|
120/270
|
1.1/1.1
|
0~1440
|
1.5kw
|
|
500
|
4
|
0~75
|
7.5
|
0~3600
|
200/450
|
1.5/1.5
|
0~1440
|
1.5kw
|
|
1000
|
5.5
|
0~75
|
11
|
0~3600
|
400/900
|
2.2/2.2
|
0~1440
|
2.2kw
|
|
2000
|
7.5
|
0~75
|
15
|
0~3600
|
800/1800
|
2.2/2.2
|
0~1440
|
-
|
|
3000
|
11
|
0~75
|
18.5
|
0~3600
|
1200/2700
|
3/3
|
0~1440
|
-
|
Other Options for Vacuum Making Machine:
• Hydraulic Lifting Vacuum Type, easy to cleaning with inside.
• Upper/ Bottom Homomogenizer are optional.
• Upper/ Bottom Disperser are optional for oil/water pre-mixer
• Siemens motor/ ABB motor are optional.
• Improt/ Dosmetic load cells used to calculate the total weight of materials in the tank.
• Flow meter automation for feeding Pure water, It can set the output of water, Date more accurate.
• Bottom Disperser instead of Homogenizer is optional（according to customer requirments）
• Different power supply acceptable

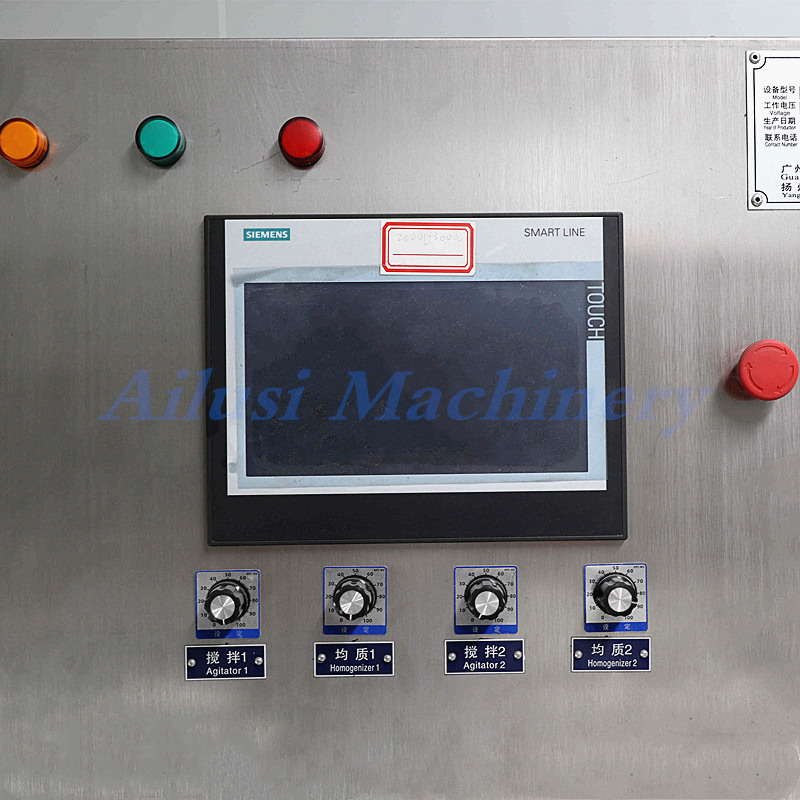

• Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc
Package & Delivery:
To ensure the quality of our service, we will follow the standard package upon delivery:
1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.
2. Manual Filling Machine are packed in Carton. Large quantities can be packed in wooden boxes.
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
