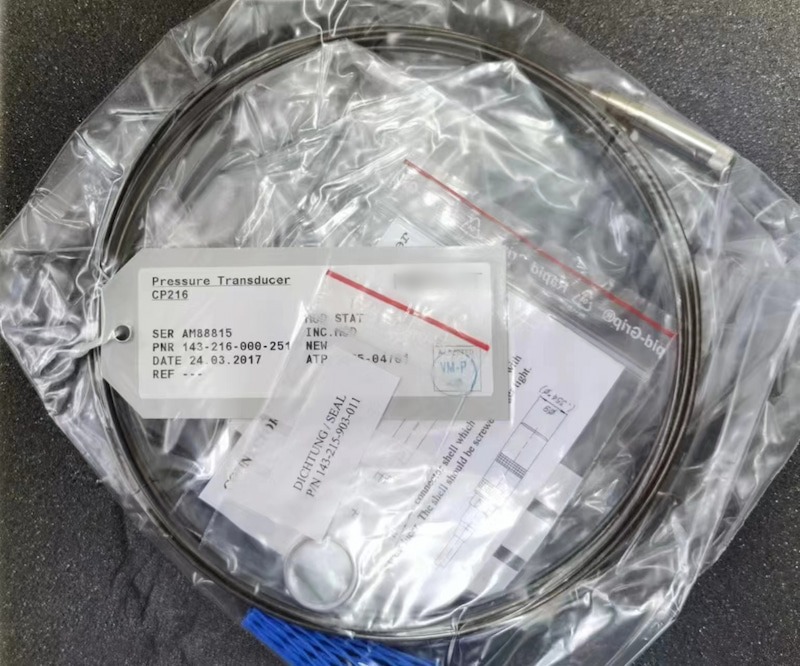

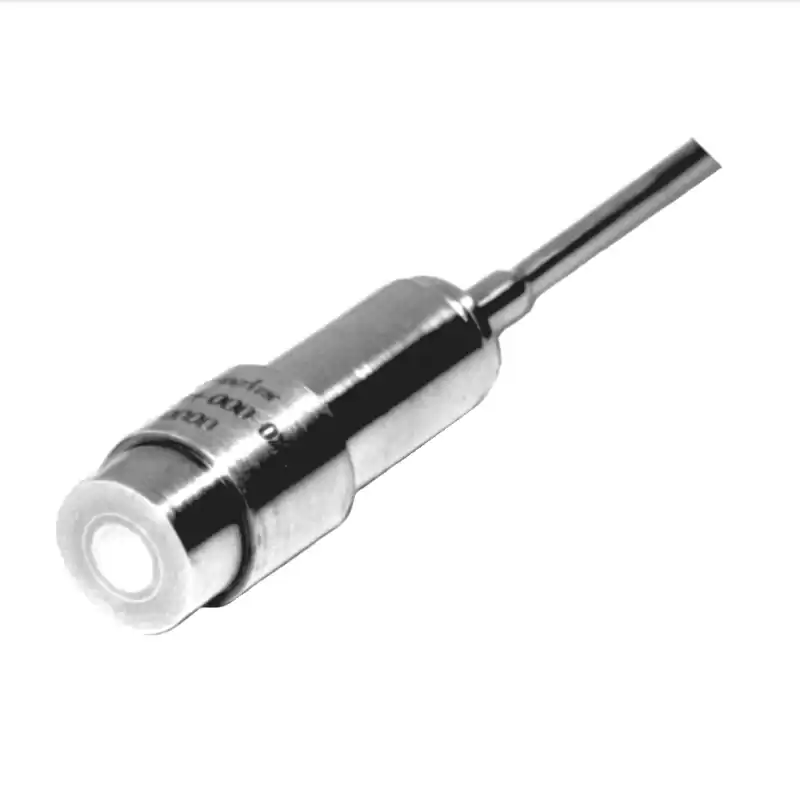

CP216 143-216-000-251 Piezoelectric Pressure Transducer
Features:
» Extreme temperature capability: −70 to 520°C
» High-pressure capability: up to 350 bar
» Pressure sensitivity: 200 pC/bar
» Frequency range: 2 Hz to 15 kHz
» Internal case insulation
» Certified for use in potentially explosive atmospheres
Applications
» Dynamic pressure monitoring over a wide temperature range, requiring high reliability
Functional Description
The use of man-made piezoelectric material in the CP216 a compression-mode dynamic pressure transducer produces an extremely stable device.
The CP216 is designed for long-term monitoring or development testing over wide temperature ranges in extreme environments, such as gas turbines.
The transducer is fitted with an integral mineral insulated (MI) cable with twin conductors that is terminated with either a LEMO connector or a VM high-temperature connector. Cable assemblies are available to connect the transducer to an IPC704 signal conditioner.

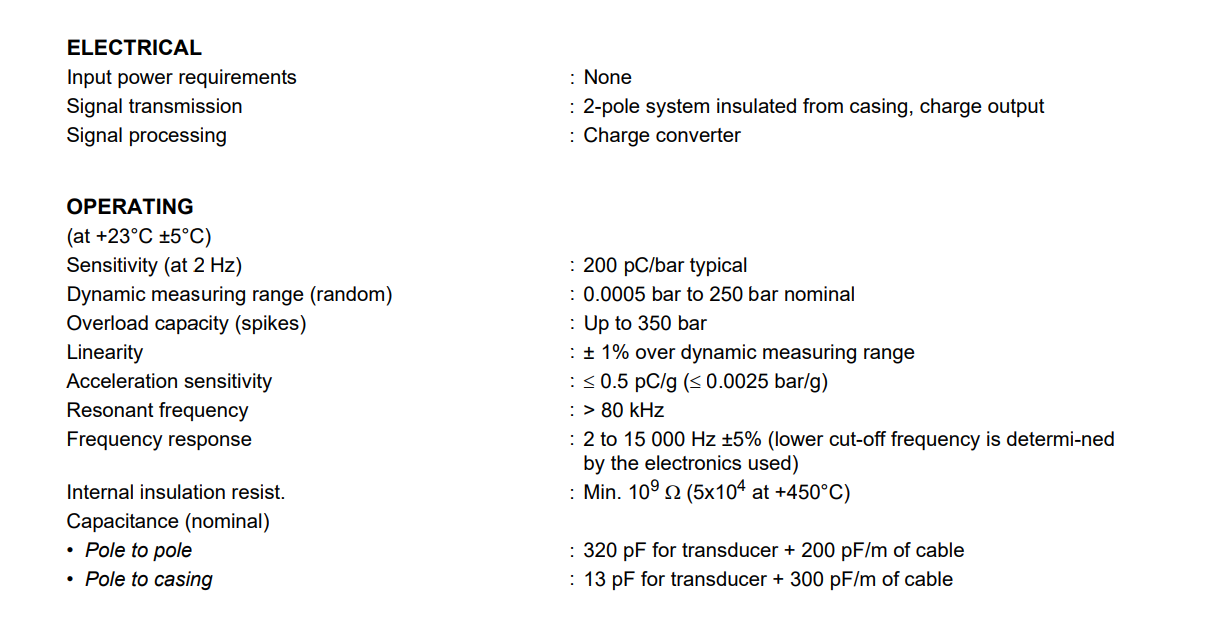

Technical Specifications
| Manufacturer |
VM |
| Part Number |
CP216 |
| Ordering Information |
143-216-000-251 |
| Product Catalog |
Vibration Monitoring |
| Description |
Piezoelectric Pressure Transducer |
| High-Pressure Capability |
350 bar |
| Temperature Capability |
−70 to 520°C |
| Pressure Sensitivity |
200 pC/bar |
| Frequency Range |
2 Hz to 15 kHz |
