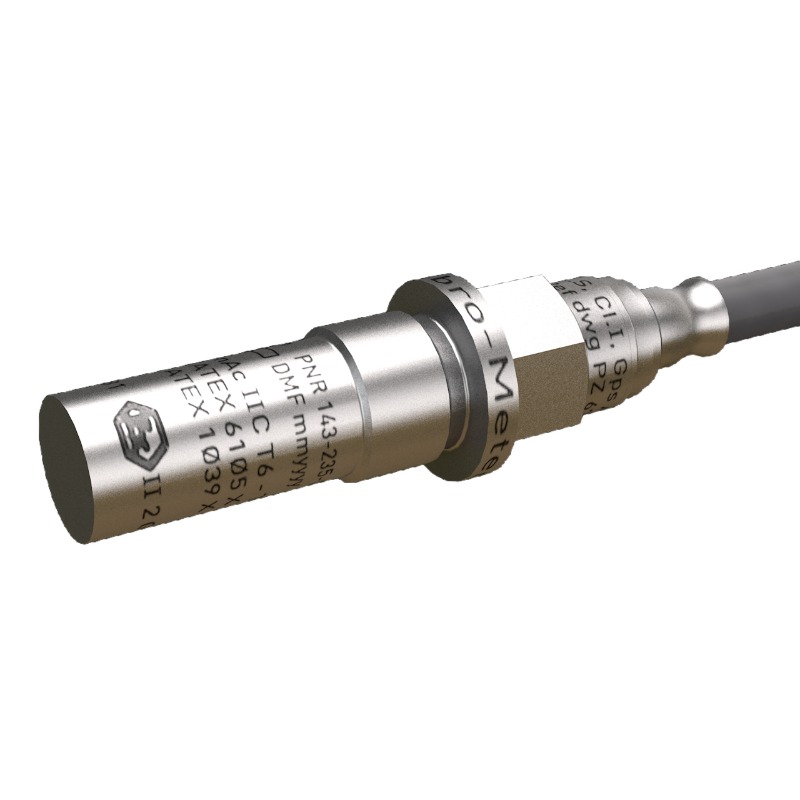

CP237 143-237-000-012 Piezoelectric Pressure Transducer
Functional Description:
Piezoelectric pressure transducer, 750 pC/bar, −55 to 520 °C, 2 to 10000 Hz, 0.0007 to 72.5 psi | 0.00005 to 5 bar, ≤0.15 pC/g and ≤0.375 pC/g, Charge (2-wire), Ex ia, Ex ib, Ex nA
The CP series from Meggitt Vibro-Meter is a line of piezoelectric pressure transducers for extreme applications. The high quality sensors offer proven durability and accuracy. The dynamic pressure sensors are suitable for extreme temperatures and offer a high sensitivity. The serie has all relevant certifications, including ATEX.
Features:
· Designed for the long-term measurement of pressure pulsation in extreme environments, such as gas turbine combustors
· Very high sensitivity: 750 pC/bar
· High operating temperature: up to 520 °C

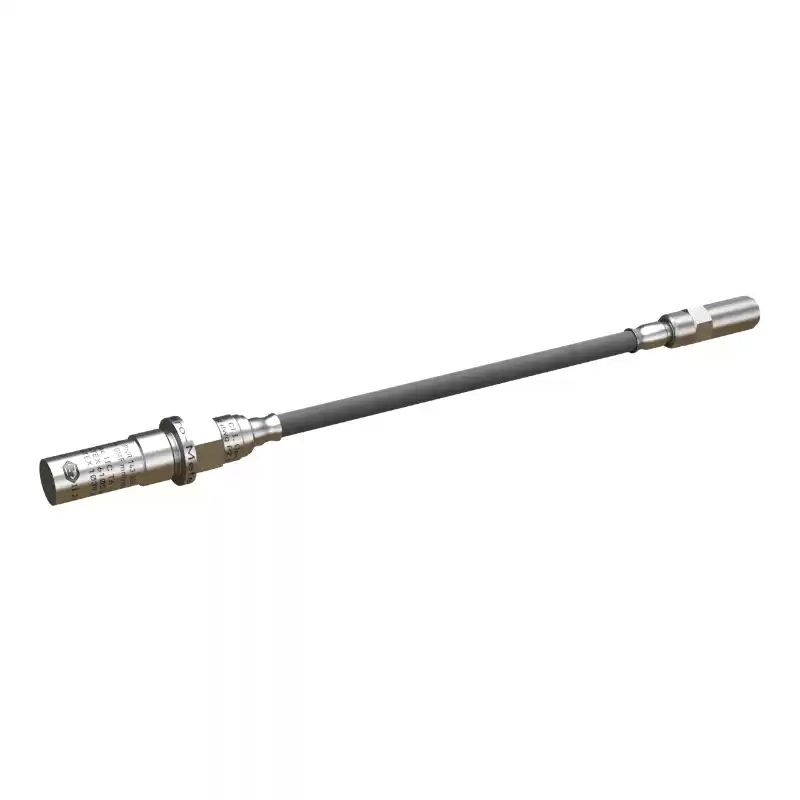

· Available in different integral mineral-insulated (MI) cable lengths, terminated with a high-temperature connector
· Certified for use in potentially explosive atmospheres
Technical Specifications
| Manufacturer |
VM |
| Part Number |
CP237 |
| Ordering Information |
143-237-000-012 |
| Product Catalog |
Vibration Monitoring |
| Description |
Piezoelectric Pressure Transducer |
| High Sensitivity |
750 pC/bar |
| Operating Temperature |
up to 520 °C |
| Origin |
Switzerland |
| Dimensions |
11 mm x 36.6 mm |
| Weight |
37 g |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
