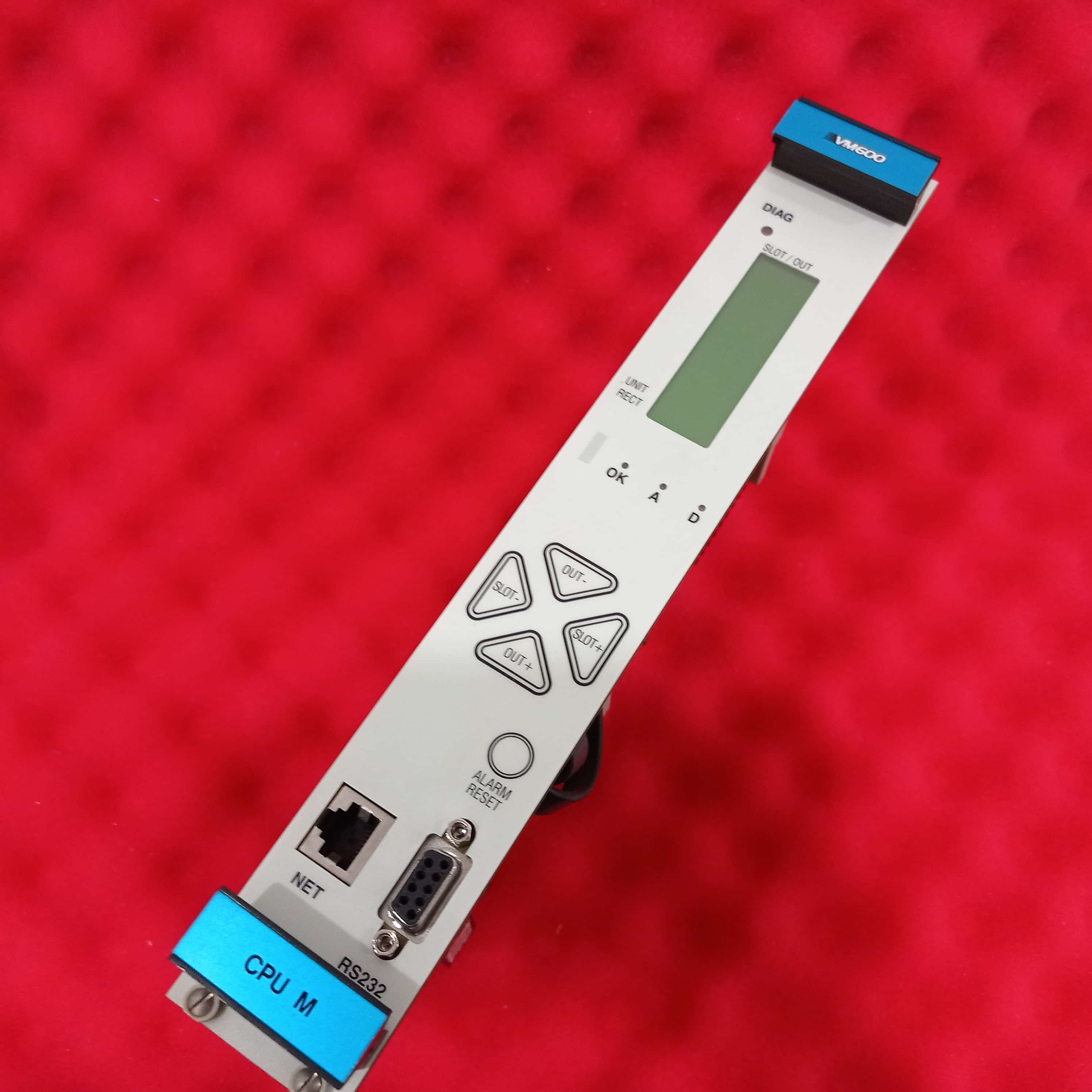

The CPU M is a modular Central Processing Unit (CPU) card intended for use in Vibro-Meter's VM600 series of Machinery Protection System (MPS) and Condition Monitoring System (CMS) racks. Depending on the system requirements, the CPU M may be used alone in the rack (installed in the front card cage) or in conjunction with the corresponding IOC N Input / Output Card (installed in slot 0 of the rear card cage, directly behind the CPU M)

The modular, highly versatile design of the CPU M means that all rack configuration, display and communications interfacing can be performed from a single card.

The CPU M consists of a base carrier card having two PC/104 type slots. One of a range of PC/104 modules can be installed in each slot. In the standard configuration, a single PC/104 type CPU module is fitted. This provides an RS-232 connection via a DB9 connector, and an Ethernet network connection via an RJ45 connector on the front panel, or alternatively, via the relevant ports on the IOC N,

• » Datasheet Link

CPUM 200-595-067-114 Modular Central Processing Unit (CPU) card Datasheet
