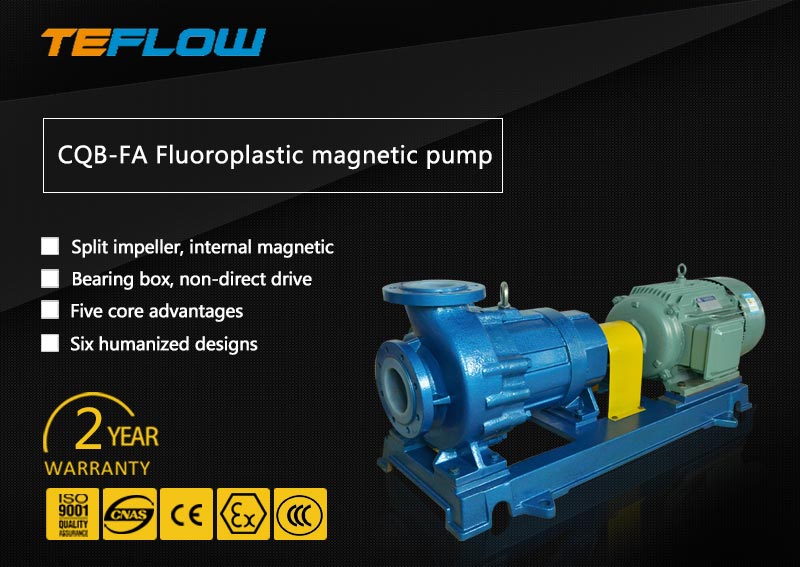

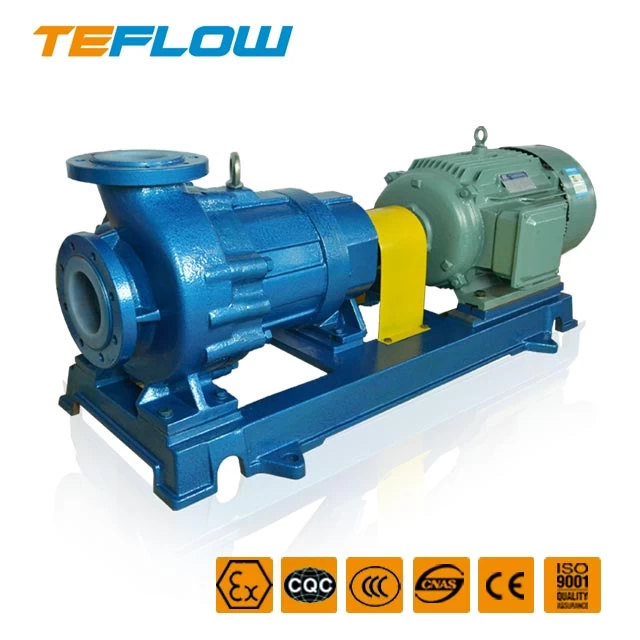

CQB-FA Fluoroplastic Magnetic pump (Non-direct connection)
CQB-FA Fluoroplastic Magnetic pump, the pump overflowing parts are made of fluoro plastic alloy, can transport any concentration of acid and alkali corrosive substances.

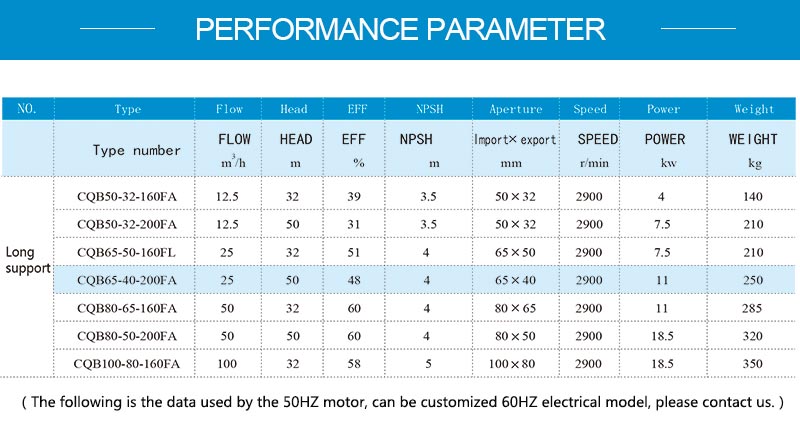

Anhui Tenglong pump valve fluorine plastic magnetic pump main parameters:
-
Flow: 12.5m³/h-100m³/h
-
Head: 20m-50m(2bar-5bar)
-
Power: 4kw-18.5kw
-
Applicable medium: any concentration of acid, alkali, salt, organic solvents, etc
-
Transportation of acids and bases and Organic solvents at -20 ℃ -90 ℃
Can change the configuration according to the actual working condition, please consult my company sales department for details: +86(0086)18130250095 E-mail: tlpumps@tlpumps.com
![](/storage/uploads/images/202001/17/be635fa1bf17f63c78b18fc40a701b02.jpg)
![CQB-FA Fluoroplastic Magnetic pump CQB-FA Fluoroplastic Magnetic pump](/storage/uploads/images/202001/17/c3dcf656abe67c066f5b79a5d6d0829c.jpg)
![](/storage/uploads/images/202001/17/edb3073674c72d224ad51c06f7d98e54.jpg)
![](/storage/uploads/images/202001/17/48db48792ef888ab39c987b9be8e89c3.jpg)
![](/storage/uploads/images/202001/17/f5194371fa9db906f426f7cdd7b52780.jpg)
![](/storage/uploads/images/202001/17/521228224eff31dc8e72b8181a2e9b6f.jpg)
![](/storage/uploads/images/202001/17/037d9e54ea3cf4be0177e6e3a1957419.jpg)
![](/storage/uploads/images/202001/17/2e4414b506b018d38f4a9905a3734259.jpg)
![](/storage/uploads/images/202001/17/e9d1c51329a8683dcb440bcc6be1e165.jpg)
![](/storage/uploads/images/202001/17/4f9a731073e4209dfafa2edcb3b0b0e7.jpg)
