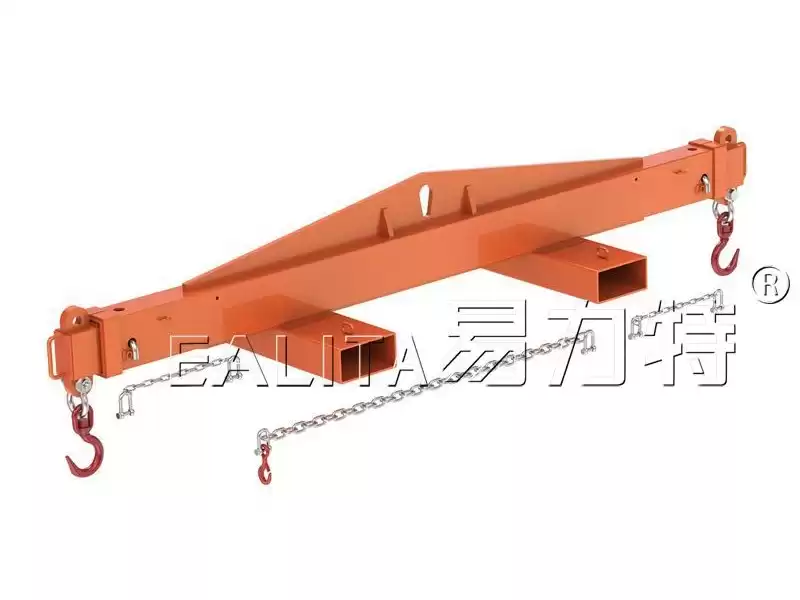

It is a unique multitasking Spreader Beam which can be used by Crane or Forklift to lift long loads.
- Using a Crane, loads can be lifted via the centre single hook point (as a ‘Lifting Beam’), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’).
- If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck.
- The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end.
- Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook each end.
- The extendable arms are zinc plated with the main body painted in ‘safety orange’.
Specification
· Code: 03.01.04.0025
· Rated Capacity (RC Max.): 9000kg
· Load Centre (LC): 2405mm
· Unit Weight: 172kg
· F/Lift HCG: 300mm
