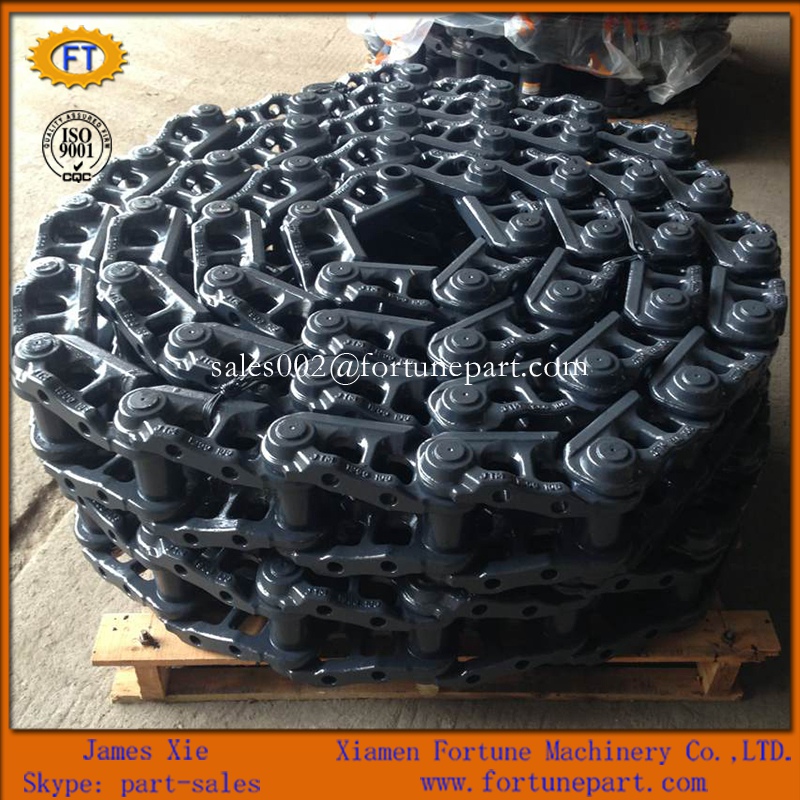

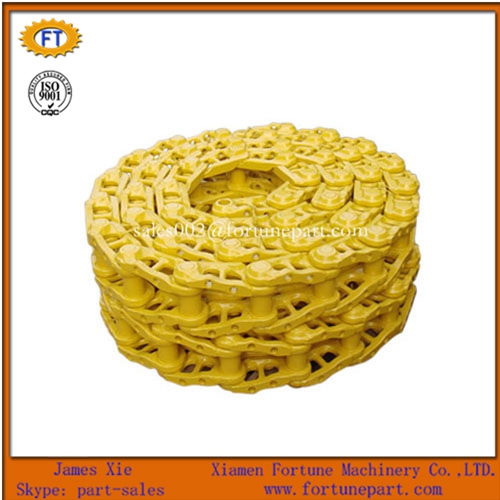

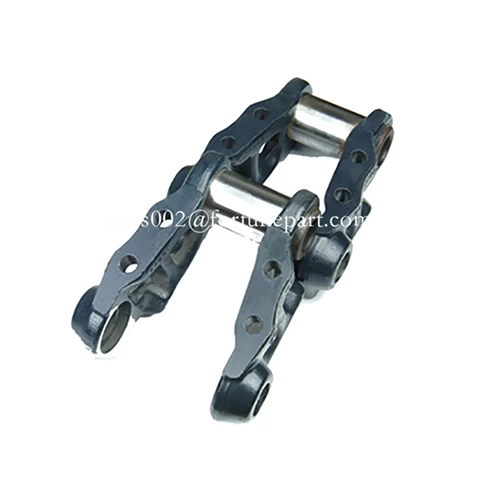

Crawler track chain for Hitachi EX200-3 ZX330-5G excavator undercarriage repair

Heavy duty Track link chain assy for Hitachi EX200-3 undercarriage track repair and replacement,production is as per ITM quality standard,is applicable for earth moving and mining.


  • Moving TypeCrawler excavator and dozer
  • Hardness Depth8--12mm
  • Surface HardnessHRC52--58
  • Material40MnB and 35MnB
  • ProcessForging
  • ModelEX60 EX100 EX120 EX200 EX300 ZX200 ZX300 ZX330
  • BrandFT
  • WarrantyOne year

Crawler track chain for Hitachi EX200-3,EX300 EX400-5 EX200 ZX330-5G excavator undercarriage track repair and replacement

Earth Moving heavy equipment Track chain, is also named excavator track link,track link assembly,track chain assy,link assembly,
Bulldozer chain has two types,dry track chain and lubricated track chain.
Dozer lubricated track chain includes link sections and track pin and bush and master link.
our track chain has  high surface hardness,deep hardened depth,greater wear resistance and longer wear life.


     Xiamen Fortune Industrial Co., Limited
Product Name Hitachi crawler excavator undercarriage spare parts track link chain assy for mining
Production Standard OEM
Material 40MnB/35MnB purchased from first class steel plant
Finish Smooth
Painting Color Black or yellow
Process Forging
Surface Hardness HRC52-58, Depth:8mm-12mm
Quality Guarantee One Year
Certification ISO9001-9002
Delivery Time Within 10--20 days after sales contract establishment
Package Fumigate seaworthy packing and Export Standard Package
Payment Term TT, L/C, Paypal, Western union,D/P
Business Scope excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc



Our excavator and dozer track chain assy advantage(Why Choose our undercarriage parts)
1.Quench-tempering processes to guarantee genuine mechanical properties
2. High hardness :HRC52-58,deepth:8mm-12mm
3. Deep hardened wear surface
4. High strength and superior wear resistence to bending and breakage
5.Strict Quality Control
6.Precise design and carefully manufactured
7.Certificated by ISO9001:2008
8.Produce as per client's samples,designs and drawings


Excavator and bulldozer undercarriage parts Track chain Functions:
1.Guide the track in and out of the track rollers.
2.Intermittently support the machine's weight
3.Provide a way to control slack and tension




Hitachi excavator undercarriage parts track link chain Part number and Berco number list

Chain/Track Link
MODEL DESCRIPTION PITCH KUT No. BERCO No. OEM No.
EX40/45 LINK(38L) 135 KU060-N0-38 9087953
EX60 LINK(37L) 154 KU050-P0-37 HT418 9096710
EX100 LINK(41L) 171.45 KU061-P1-41 CR4854? 995398
EX100M(EX150) LINK(45L) 171.45 KU052-P0-45 HT420 AT159899
EX200-1 LINK(48L) 175.5 KU053-P0-48 HT17? 9066724
EX200-3 LINK(46L) 190 KU005-P0-46 KM1170? 9092517
EX300 LINK(47L) 203 KU007-P0-47 KM959? 9140549
ZX330-3 LINK(45L) 216 KU012-P0-45 KM2233 9202851
EX400-1 LINK(49L) 216 KU009-P5-49 MT14A 9084353
EX550 LINK(53L) 228 D155 BH 9137494
EX700/750/800 LINK(51L) 260 PC650-5 BH 9152643
EX1100-3 LINK(52L) 260 9C1000 BH 9104792



FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
  We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.

2.How to confirm the spare parts will fit our crawler excavator and dozer?
  Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions

3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
  We have an excellent QC system, the QC team will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.

4.What is payment term?
 TT, L/C, Paypal, Western Union, other payment term also can be negotiated.


Choose genuine quality track link for construction machinery parts,

Fortunepart will be your best undercarriage parts supplier in China.
