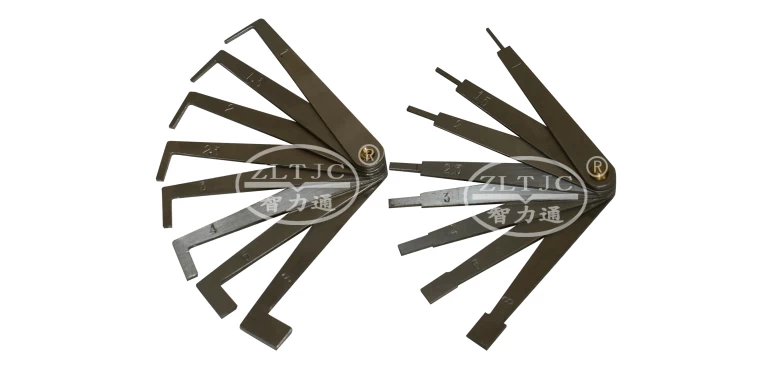

Creepage Distances Gauges

ZLT-CK.  For gauging the creepage and clearance distances in dead state between parts under voltage in the operating conditions as well as between touchable metal pieces and parts under voltage in the operating conditions. e. g. in installation material, switchgears, plugs, socket-outlets and electric appliances

Facebook Twitter Pinterest LinkedIn 分享

Creepage Distances Gauges


Product details: Model ZLT-CK.



For gauging the creepage and clearance distances in dead state between parts under voltage in the operating conditions as well as between touchable metal pieces and parts under voltage in the operating conditions. e. g. in installation material, switchgears, plugs, socket-outlets and electric appliances, according to IEC and CEE Publications, EN Standards, VDE Specifications


Assortments:

ZLT Creepage Distance Gauges Type CK1
With 8 creepage distance gauges:
1,0-1,5-2,0-2,5-3,0-4,0-6,0-8,0mm.
ZLT Creepage Distance Gauges Type CK2
With 15 creepage distance gauges:
1,0 to 8,0mm in steps of 0,5mm.
ZLT Creepage Distance Gauges Type CK3
With 21 creepage distance gauges:
1,0-1,2-1,4-1,5-2,0-2,4-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8.0mm
ZLT Creepage Distance Gauges Type CK4
With 23 creepage distance gauges:
1,0-1,2-1,4-1,5-1,6-2,0-2,4-2,5-2,8-3,0-3,2-3,3-3,5-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm
ZLT Creepage Distance Gauges Type CK5
With 27 creepage distance gauges:
1,0-1,1-1,2-1,3-1,4-1,5-1,6-1,7-1,8-1,9-2,0-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5.5-6,0-6,3-6,5-7,0-8,0-9,0-10,0mm
Tolerance of ±0.02mm.Material: stainless steel, with bore and engraving distance /mm
