Product Name: Crossmatch Portable Biometric Finger print Reader U.are.U 5300 with Digitalpersona Optical Fingerprint Sensor
Description:
The Digital Persona U.are.U 5300 is a Biometric Fingerprint Reader with compact optical fingerprint sensor, which meets both FIPS 201/PIV and FBI Mobile ID FAP 30 standards . The Crossmatch™ URU5300 rapidly captures and produces high resolution fingerprint images in ANSI and ISO/IEC standard formats, and control calibration and data transfer automatically over the high speed USB port.
The DigitalPersona U.are.U 5300 Reader can be used with any standards-compatible fingerprint template extractor or matcher, including the Digital Persona®, FingerJet™, MINEX-certified Biometric Engine.
On basis of U.are.U 5300 Optical Fingerprint Sensor and the FingerJet Biometric Engine ,it provides an unmatched ability to authenticate even the most difficult fingerprints accurately and rapidly.Because it Incorporating a durable IP64 rated glass platen that is also highly resistant to chemical and physical damage, the U.are.U 5300 Fingerprint Scanner is well suited for harsh environments.
Features:
．High durability
．High Speed 2.0 USB
．Portable compact size
．Pixel resolution: 500dpi
．Mobile ID FAP 30 certified
．Counterfeit finger rejection
．8-bit grayscale (256 gray levels)
．Works well with dry, moist or rough fingerprints
．FIPS 201 Personal Identity Verification (PIV) certified
．Compatible with Windows 7, Vista, XP Professional
Specifications:
Pixel Resolution
|
500 dpi
|
Scan capture area
|
20.32mm x 25.4mm
|
8-bit gray scale
|
256 levels of gray
|

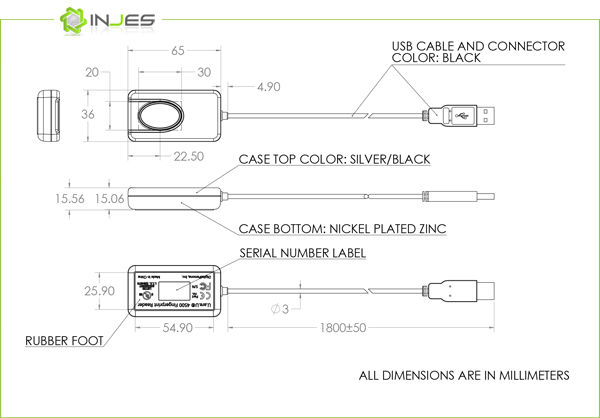

Reader size (approximate)
|
70 mm x 47 mm x 22 mm
|
USB port
|
USB 2.0 High Speed
|
Supply Voltage
|
5.0V ±5% supplied by USB
|
Supply Current
|
scanning 150 mA (Typical), idle mode 40 mA (Typical),
suspend mode 0.5 mA (Maximum)
|
ESD Susceptibility
|
IEC61000-4-2 Level4
|
Temperature, Operating
|
-10°C - 50° C
|
Humidity, Operating
|
0% - 90% non-condensing
|
Temperature, Storage
|
-20°C - 55°C
|
Scan data
|
8-bit grayscale
|
Standards Compliance
|
FIPS 201 PIV,Mobile ID FAP 30, RoHS,UL,USB,WEEE
|
Top Surface
|
IP64-rated seal between top case and glass surface
|
Operating System
|
Windows® 8.1 (32-bit and 64-bit); Windows 7 (32-bit and
64-bit); Windows XP Professional (32-bit), Windows CE, Linux®
and Android™
|
Introduction:
Configuration:

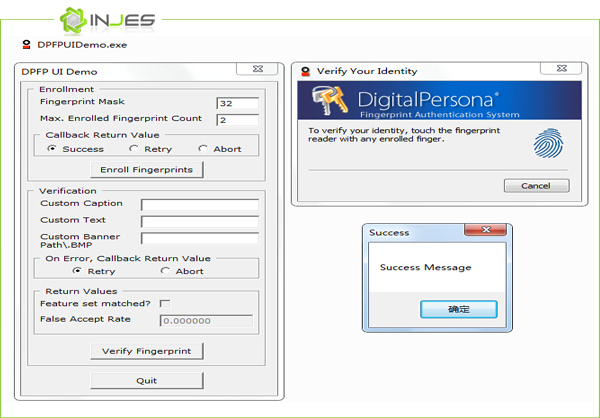

SDK Demo:
