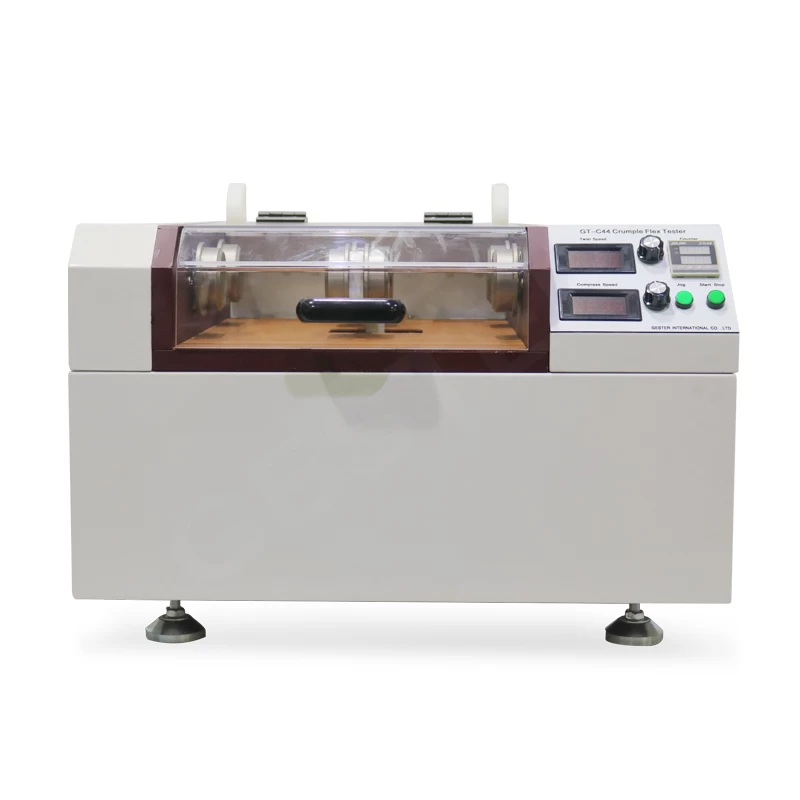

Crumple Flex Tester GT-C44
Product Introduction
|
Application:
Crumple Flex Tester is suitable to determine resistance to damage by crumpling and flexing method for rubber or plastics coated fabrics.
Standards:
BS 3424 P9, ISO 7854-Method C, GB/T 12586
|

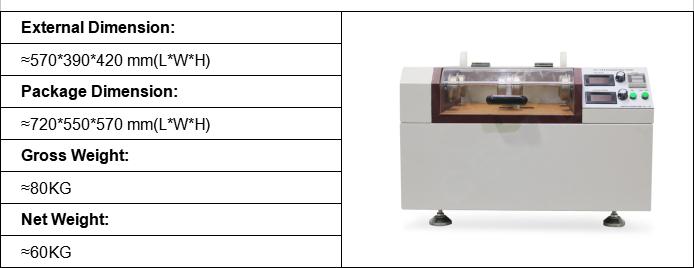

Dimensions
Structure
A rectangular test piece of coated fabric is sewn into a cylindrical shape. The cylinder of coated fabric is mounted between two discs and secured into position. One of the discs oscillates and its axis through approximately 90°. This includes twisting in the coated-fabric test piece cylinder. At the same time, the other disc reciprocates along its axis, thus causing the cylindrical test piece to compress along its length. This twisting and simultaneous compressing of the cylindrical test piece is continued for either a pre-set number of cycles or until damage to the test piece is apparent.
Key Specifications
Model
|
GT-C44
|
Test Positions
|
4
|
Disc
|
Diameter: 63.5mm, Width: 15mm
|
Rotational Speed
|
200±10r/min(3.33Hz±0.17Hz)
|
Rotational Angle
|
90°±2°
|
Compression Speed
|
152±4r/min(2.53Hz±0.07Hz)
|
Compression Stroke
|
70mm
|
Cylinder Flanges Inner Side Distance
|
Max.180±3mm
|
Dimension of Test Piece
|
220x190mm,
Each piece in longitudinal in transverse direction
|
Sewing size of Test Piece
|
Cylindrical Shape, length 190 mm, inner diameter 64 mm
|
Counting
|
0 ~ 999 999 times, settable
|
Dimensions (WxDxH)
|
57x39x42cm
|
Weight
|
≈60Kg
|
Power Supply
|
1∮ AC 220V 50/60Hz 3A
|
Standards accessories
|
1pc
|
Sampling plate
|
8pcs
|
Hose clamp
|
