CSK35PP One Way Clutch Ball Bearing 35x72x17mm

The CSK35PP One Way Clutch Ball Bearing is a precision-engineered component designed to facilitate unidirectional motion in mechanical systems. With its advanced design and robust construction, this clutch ball bearing offers reliable performance across various industrial applications.



CSK35PP One Way Clutch Ball Bearing 35x72x17mm

CSK series one way bearing is a sprag type freewheel , integrated into 6200 series ball bearing(except sizes 8 and 40), Also named OW BB KK etc. It provides you an one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space. It is bearing supported, shipped grease lubricated and protected against dust larger than 0.3mm diameter. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified. Operating temperature range:-20°C to +100°C. Peaks up to +120°C are acceptable for short periods.

CSK35PP One Way Clutch Ball Bearing 35x72x17mm Dimension:

Bearing No.

CSK35PP

Inner Diameter

35 mm

Outer Diameter

72 mm

Width

17 mm

Seal type

OPEN,ZZ,2RS



Application :

The CSK35PP One Way Clutch Ball Bearing is essential for precise unidirectional motion control in diverse applications. From automotive transmission systems to printing machinery and industrial equipment like conveyors and packaging machines, its reliable performance ensures smooth operation and optimized productivity. Additionally, it enhances efficiency in agricultural machinery, contributing to tasks like harvesting and irrigation. With its robust construction and versatile functionality, the CSK35PP is indispensable across various industries, offering seamless motion control and reliable power transmission.

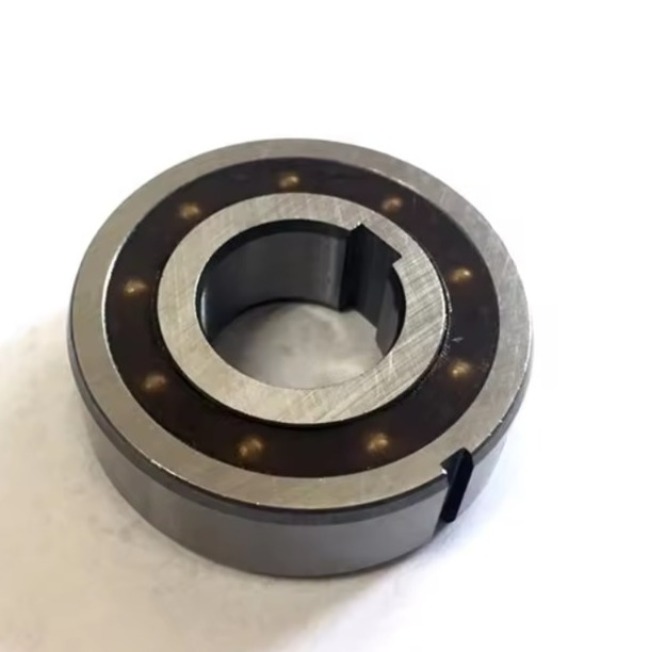

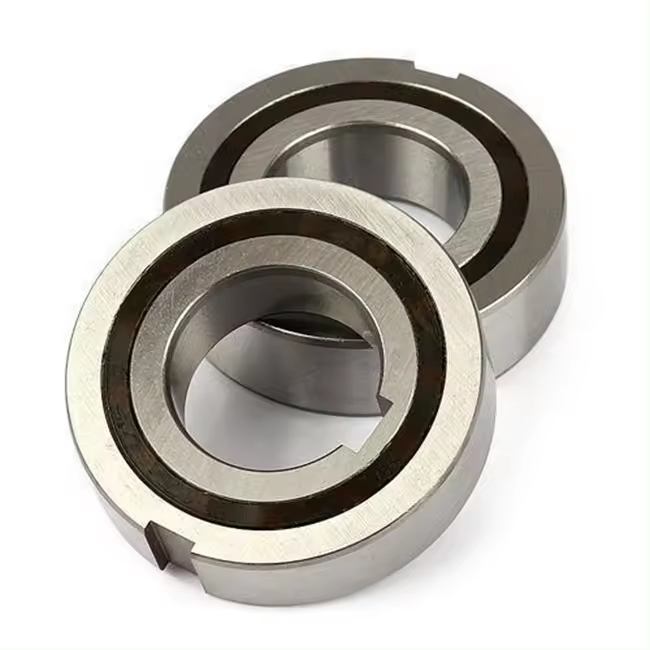

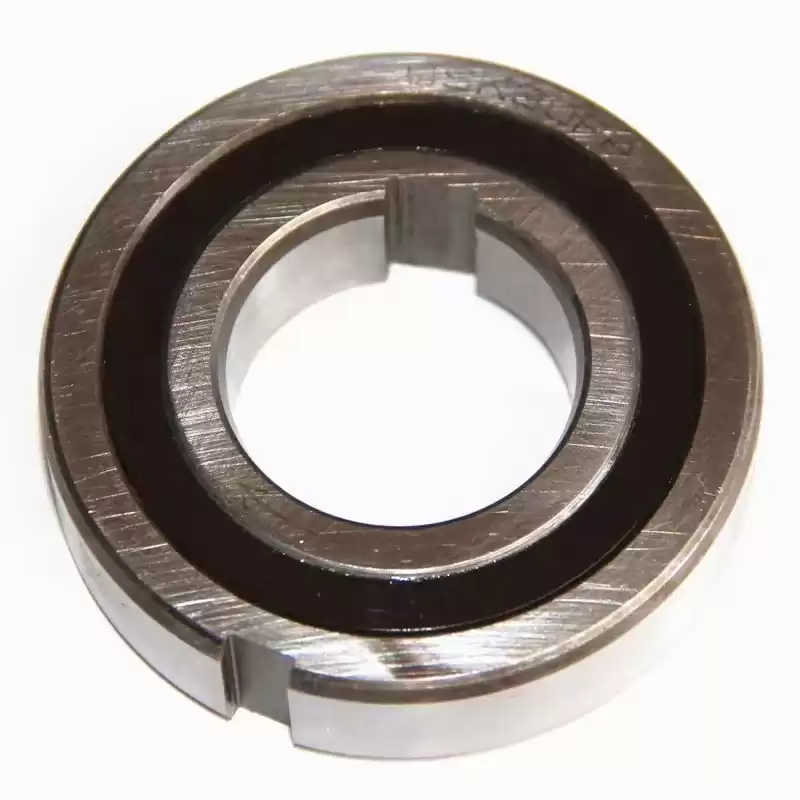

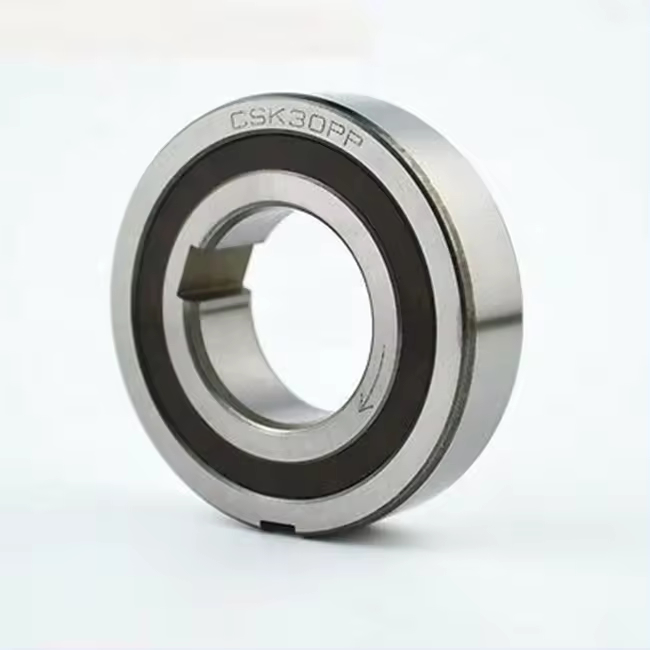

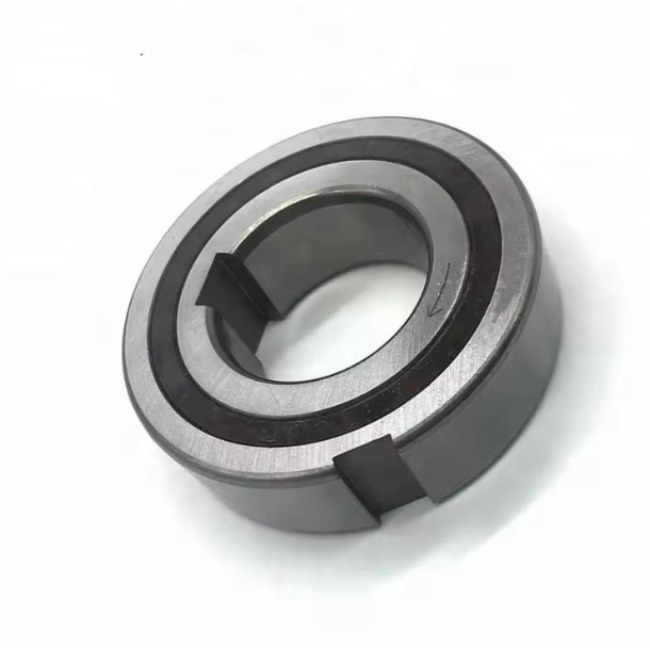

Photo:

CSK35PP one way clutch bearings one way bearings 35x72x17mm



Angular Contact Ball Bearings size chart:


Type


Size


Bearing series


Bearing loads
 dyn             stat


Weight


Frictional
Resistance

CSK..P

d



TKN1)

N max

D

L

C

C0



TR

[mm]



[Nm]

[min-1]

[mm]

[mm]

[kN]

[kN]

[kg]

[Ncm]

8*

2.5

15000

22

9

3.28

0.86

0.015

0.5

CSK12P

6201

9.3

10000

32

10

6.1

2.77

0.04

0.7

CSK15P

6202

17

8400

35

11

7.4

3.42

0.06

0.9

CSK17P

6203

30

7350

40

12

7.9

3.8

0.07

1.1

CSK20P

6204

50

6000

47

14

9.4

4.46

0.11

1.3

CSK25P

6205

85

5200

52

15

10.7

5.46

0.14

2

CSK30P

6206

138

4200

62

16

11.7

6.45

0.21

4.4

CSK35P

6207

175

3600

72

17

12.6

7.28

0.3

5.8

CSK40P

325

3000

80

22

15.54

12.25

0.5

7

CSK..PP

8**



2.5

15000

22

9

3.28

0.86

0.015

0.8

CSK12PP

9.3

10000

32

14

6.1

2.77

0.05

3

CSK15PP

6202

17

8400

35

16

7.4

3.42

0.07

4

CSK17PP

6203

30

7350

40

17

7.9

3.8

0.09

5.6

CSK20PP

6204

50

6000

47

19

9.4

4.46

0.145

6

CSK25PP

6205

85

5200

52

20

10.7

5.46

0.175

6

CSK30PP

6206

138

4200

62

21

11.7

6.45

0.27

7.5

CSK35PP

6207

175

3600

72

22

12.6

7.28

0.4

8.2

CSK40PP

325

3000

80

27

15.54

12.25

0.6

10
