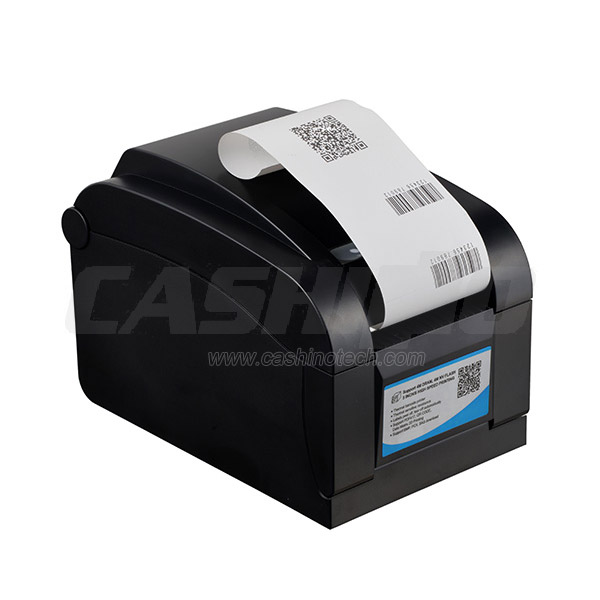

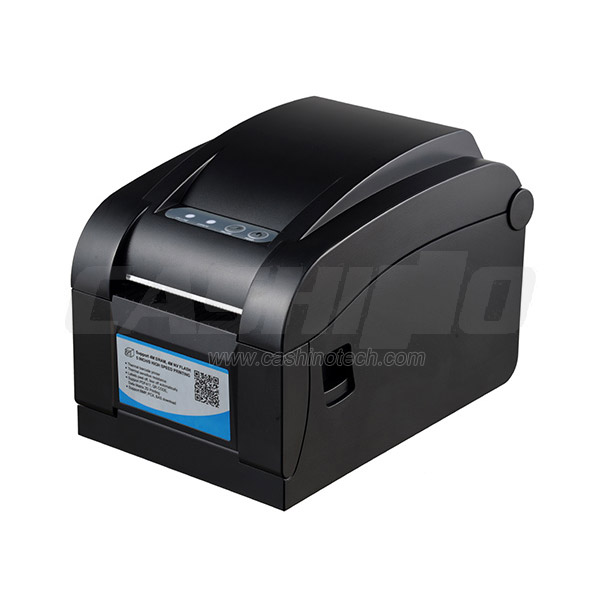

CSN-350B Barcode Label Thermal Printer

127mm/s,support 16-82mm paper width, 24VDC



CSN-350B Label Barcode Thermal Printer

Feature:

      Support thermal receipt roll paper & label paper

      Support paper width from 16-82mm

      Support printer head pressure adjustment

      Aupport paper auto verify

      Automatical temperature control

      Easy paper-roll installation

      Easy paper jam clearance

      Easy maintenance

Specification:

 Model

 CSN-350B

 Printing Method

 Thermal  line printing

 Resolution

 203dpi (8dots/mm)

 Paper width

 16-82mm

 Printing speed

 127mm/sec.(Max); 101mm/sec.(Min)

 Memory

 DRAM:2M; FLASH:2M

 Printer head temperature sensor

 Thermal sensitive resistance

 Printer head position sensor

 Microswitch

Black mark sensor

 Photoeletric sensor

 Interface

 Parallel/RS232C+USB/LAN

 Barcode:



 CODE128,EAN128, ITF,CODE39, CODE93,EAN12,EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,CODABAR,

POSTNET,UPC-A,UPCA+2,UPCA+5,UPC-E,UPCE+2,

UPC-E+5,CPOST,MSI,MSIC,PLESSEY,ITF14,EAN14

 Internal font

 FONT 0to FONT8; Simplified Chinese, Traditional Chinese Korean

 Enlargement & rotation

 1 to 10 times enlsrgement in both directions; 0°, 90°, 270°,360° ratation

 Graphics

 Black and white PCX and BMP files can be download into FLASH and DRAM

 Media type

 Continus, sticker,fan-fold,etc

 Media diameter

 Max:85mm

 Paper off type

 Min:25mm

 Impot

 Tear off & peel off

 Work

 24VDC,2.5A

 Storage

 5-45,20-80%RH

 Dimension

 -40-55, ≤93%RH(40)

 Weight

 1.5KG


CSN-350B Label Barcode Thermal Printer FAQ:

Q: Delivery date?
A:  All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order delivery date approximately 2 weeks.

Q: Payment terms?
A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty
A:  One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair,that is also the reason why many customers choose our company.
