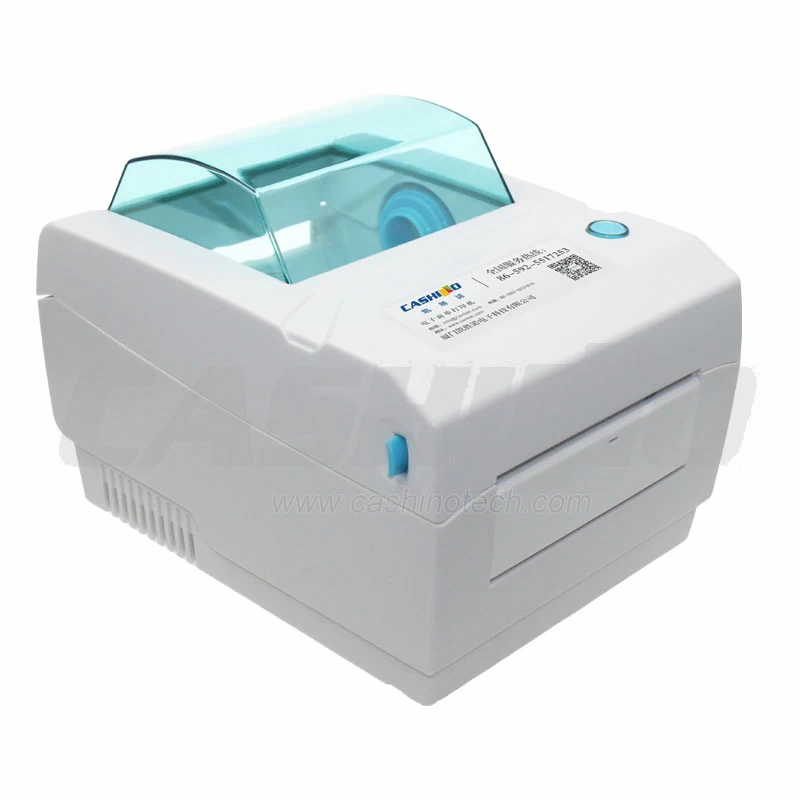

CSN-400 4inch Barcode Label Printer

150mm/s,30-110mm paper width, DC24V, USB interface.



CSN-400 4inch Barcode Label Printer

This new thermal label barcode printer is designed for retailers, post offices, logistics and all other places that need printing labels.


Key Features :

1. High printing speed at 150mm/sec
2. Large paper rolls of 110mm dia
3. Printing thick paper Max. 0.18mm
4. Selectable paper widths 30-110mm
5. Gap sensing
6. Compatible with ESC/POS, TSPL, CPCL sets



Specification:

Model No.

CSN-400

Printer Method

Thermal line printing

Paper Dimensions

Paper width:30-110mm

Paper thickness:80-180μm

Paper roll outer dia.:Max.110mm

Paper roll core dia.:25mm

Paper Loading Structure

Spindle

Printing Width

Max. 108mm

Print Density

203dpi(8dots/mm)

Print Speed

Max. 150mm/s

TPH Life/MCBF

100km

Character Set

Font A:12*24, Font B:9*17, GBK:24

Character Size

ASCII:9*17, 9*24, 16*18, 12*24

Character Per Line

Font A(12*24):48

Font B(9*17):64

GBK:24

Barcode

CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, QR CODE

Auto-Cutter

Tear off or Peel off

Interface(Standard)

USB

Power Supply

DC24V, 2A

Printing Command

Compatible with ESC/POS, TSPL, CPCL set

Overall Dimensions

180W*230D*180H mm

Weight

1.0KG

Temperature

Operating:5-40

Storage:-20-50

Humidity

Operating:10%RH-80%RH

Storage:10%-90%RH


Applications:

1. Communication

2. Post

3. Retail

4. Logistics



Company Information:
Xiamen Cashino Technology Co., Ltd. is a professional manufacturer of thermal printers since 2011, with the ISO9001, CE, Rohs and FCC certificates passed. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.

mobile printer

Our Services:

portable bluetooth printer


FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
