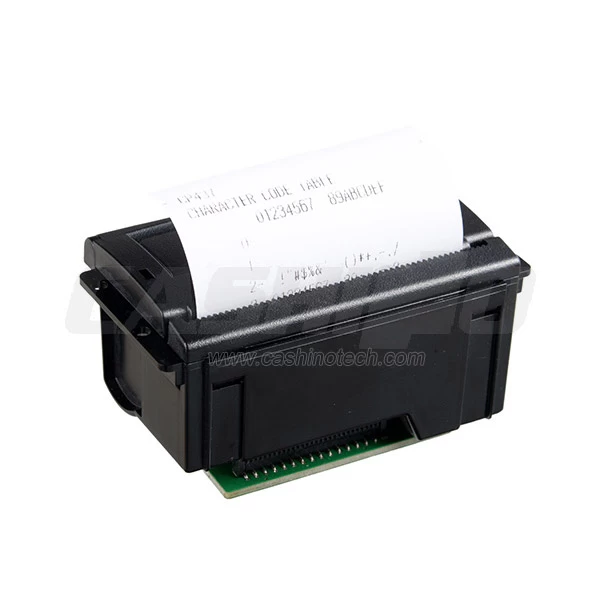

CSN-A3 58mm micro thermal panel printer

RS232/TTL/USB

DC5-9V/12V

Smallest size panel printer



2 Inch micro thermal panel printer


This 58mm thermal panel printer CSN-A3 has various interfaces and voltages for your choice. It is widly used in bus ticket printing and other receipt printing equipment. It can print thermal receipt, ticket, barcode, QR code, etc.




Feature:

Interface:RS232/TTL/USB

Power supply: DC5-9V/12V

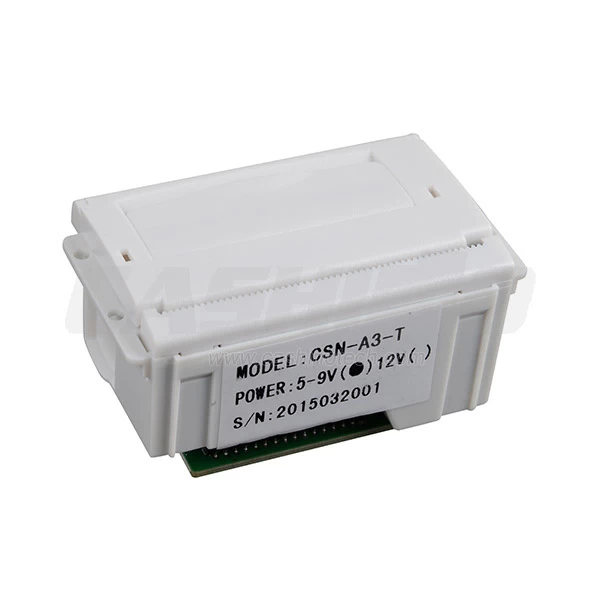

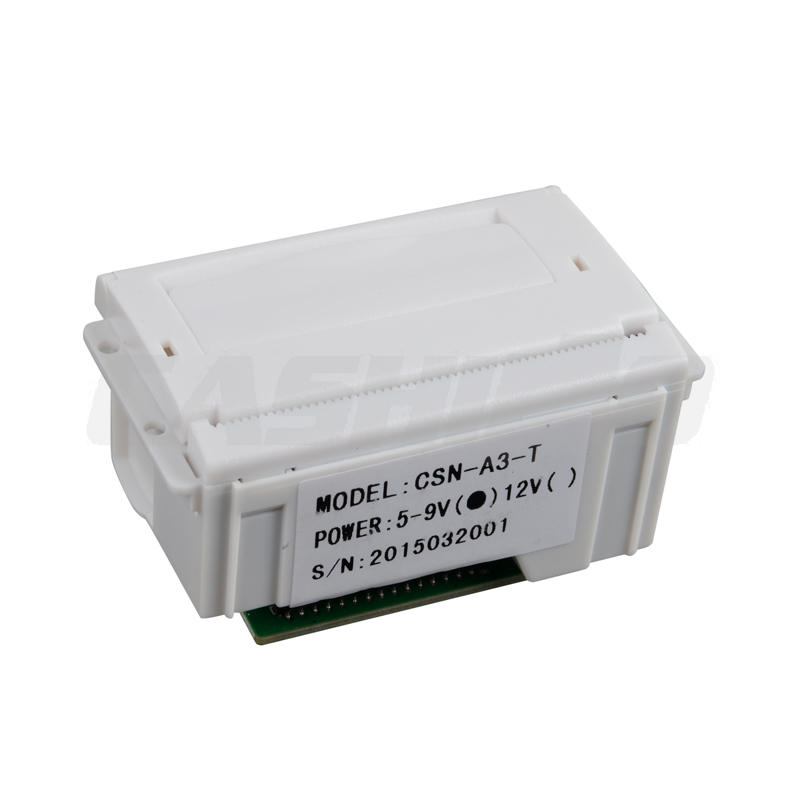

Color:Black/Beige or customization

Smallest panel mount printer



Specification:

Print

Printing Method

Thermal Line

Printing Speed

50-80mm/s

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII,GB2312-80(Chinese)

Print Font

ANK:(8x16,9x17,9x24,12×24),GBK: 16×16,24×24

Paper Spec

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Thickness

60-85µm

Roll Core Inner Diameter

13mm(min.)

Paper Roll Diameter

Max: 23mm

Reliability

MCBF

5 million lines

Interface

RS-232/TTL/USB

Insert Depth

40.5/43.5mm

Power Supply (Adapter)

DC5V-9V/12V

Physical

Outline Dimension (WxDxH)

79x44.5x48.5/51.5mm

Installation Port Size

71x44.5mm,

Color

Black

Environment

Operating Temp

0°C ~ 50°C

Operating Humidity

10% ~ 80%

Storage Temp

-20°C ~ 60°C

Storage Humidity

10% ~ 90%


mini thermal receipt printer

Application:

1. Taxi meter print proposal

2. Recording meter print proposal

3. Self-service print proposal

4. Ticket machine print proposal

5. Medical instrument print proposal

6. Weight machine print proposal

7. Electric instrument print proposal

8. Test instrument print proposal



About Cashino:


Cashino are one of the most professional providers of printing solutions in China. For meeting the printing

requirements in the market, We have developed many micro printers, such as handheld thermal printer, impact

dot matrix printer, thermal label printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We

have a wealth of in dependent research and experience, which can effectively meet different customers ODM

requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported

to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.





FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
