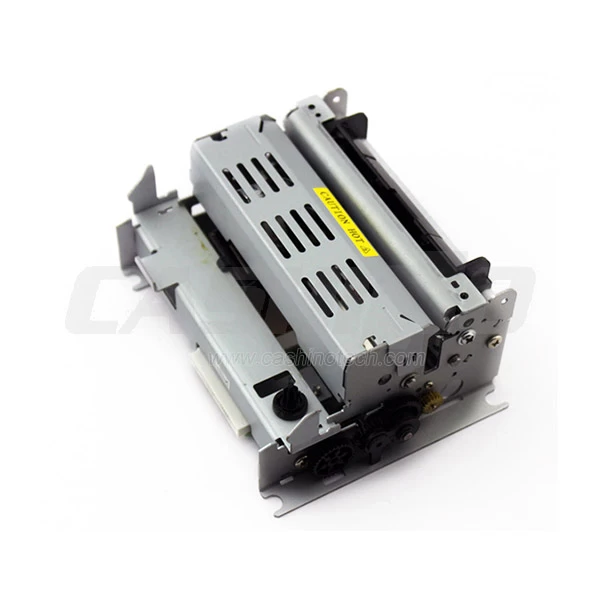

CSN-IP1 impact dot matrix printer mechanism

  • Compatible with EPSON M-U110II

  • Dot matrix printer mechanism



CSN-IP1 impact dot matrix printer mechanism
Feature:

Compatible with Epson M-U110II

Bi-directional printing

Fast printing speed

Driver IC built in



Specification:


Model CSN-IP1
Printing Printing method  9-pin, serial impact dot
Speed (mm/sec) MAX 4.4 line/sec(42 English characters/ line)
5.6 line/sec(30 English characters/ line)
8.9 line/sec(15 English characters/ line)
Feed resolution 13.9mm/sec.or 33 lines/sec.(Height:4.23mm)
Printing direction Bi-direction
Paper width (mm) 58 , 76
Detection Head temperature detection by thermistor
Out of paper detecton by photo interruper
Colour ribbon ERC-39 or equivalent
Power
supply
Operation voltage  24V+/-10%
Logical voltage 5.0+/-5%
Reliability mechanism (line)  9 million
TPH 300 million dots/wire
Operating temperature (OC) 0-50
Operating hunmidity (RH) 10%-90%
Storage temperature (OC) 5 - 35
Storage humidity (RH) 40%-70%
Dimension (W*H*Dmm) 67.4x30.8x30.7
Mass (g) 470
BLACK MARK SENSOR Applicable

FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
