Cummins 125 KVA~ 250 KVA Diesel Generator

This series genset is powered by Cummins engine (DCEC,CCEC,XCEC) with the advantages of economical easy continuous running hours and durability. Cummins products have been used in more than 160 countries,and its global service network can provide our customers with reliable and guaranteed service.

Facebook Twitter Pinterest LinkedIn 分享

Description

Click here for Cummins 135~250 kva technical data

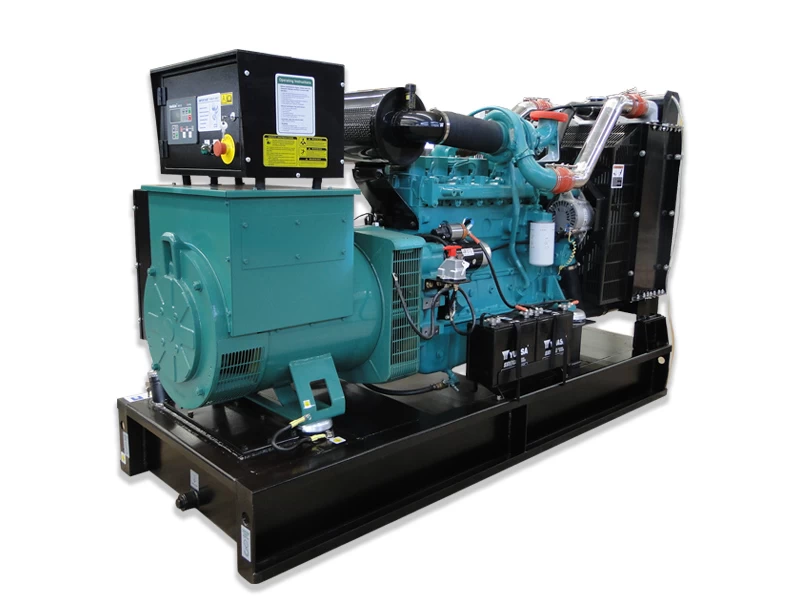

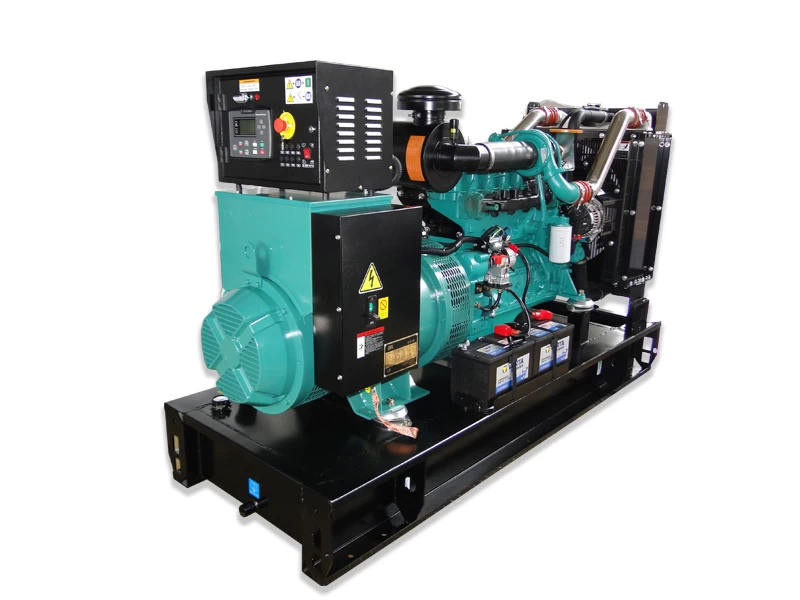

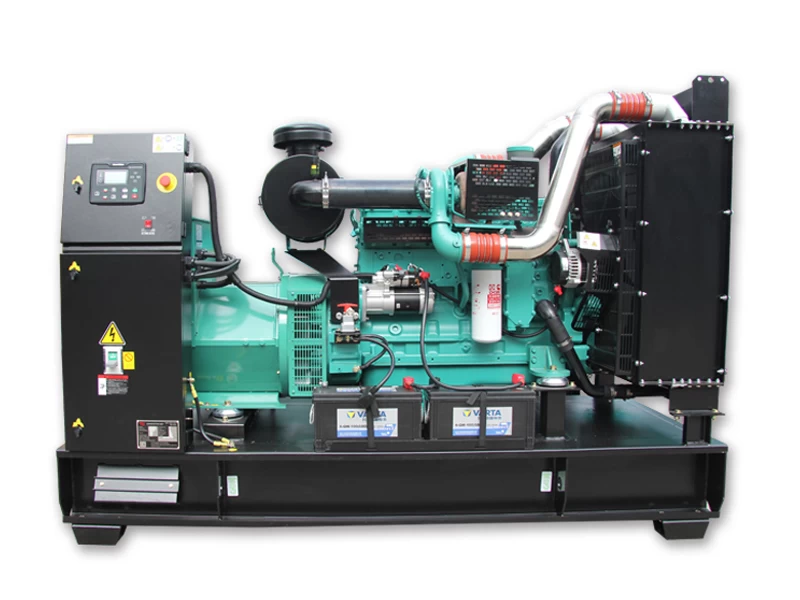

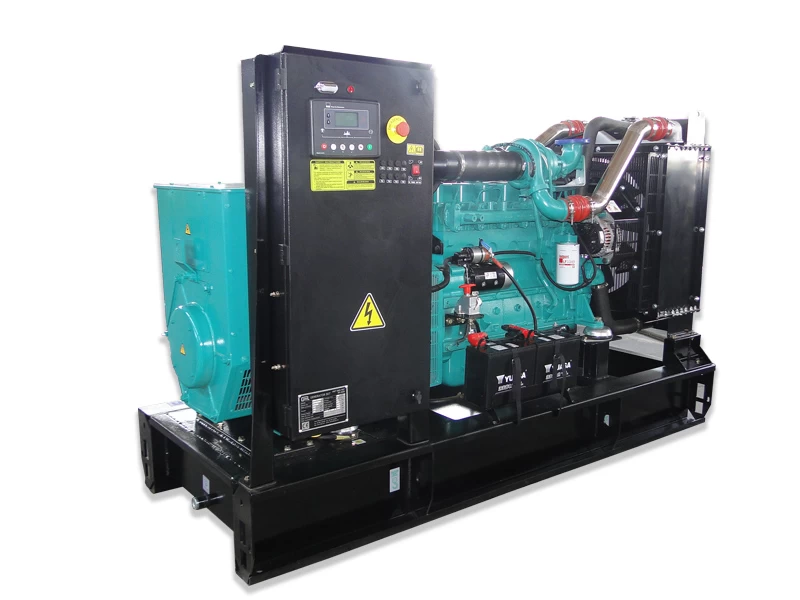

GTL Cummins diesel generator

Features:

▣ Install protective radiator fan and radiator device of water tank;
▣ Self-starting control cabinet and power output switch cabinet;
▣ The built-in fuel tank can run for 8 hours;
▣ Robust, high-strength fuselage base;
▣ The base can be equipped with forklift foot or lifting hole;
▣ Conduct heat insulation protection treatment for high-temperature pipelines;
▣ Optional voltage grade: 230V/400V, 220V/380V, 240V/480V, etc.

gtl power system

Standard Configuration

▣ Cooling system with large size radiator and expansion tank

▣ Heavy- duty chassis

▣ Built-in insulation and anti-vibration block

▣ Free-maintenance battery

▣ AC alternator for battery charger
▣ Battery charger

▣ Cable and bracket for battery

▣ Battery isolation switch

▣ Main circuit breaker

▣ Automatic start control system

▣ Fuel_ Water separator

▣ Fuel level sensor

▣ Oil sump pump

▣ Full load test

▣ Comprehensive security protection

▣ Emergency stop button

Optional Configuration

▣ Silent Canopy

▣ Heavy duty air filter

▣ Cold weather operation

▣ Engine coolant heater

▣ Intake air heater

▣ The sensor of cooling water level

▣ Anti_condensation heater(alternator)

▣ PMG alternator

▣ Power sockets panel

▣ Leakage circuit breaker

▣ High capacity fuel tank

▣ External fuel connections

▣ Automatic fuel refilling device

▣ Superior residential type silencer

▣ Skid with forklift slots

▣ Control system with parallel function

▣ ATS (Automatic transfer switch)

▣ Mobile trailer chassis

* Note: Special configuration is available

Next Product

Prev Product

Product Tags cummins diesel gensets Cummins diesel genset cummins diesel genset factory cummins diesel genset supplier cummins diesel genset price buy cummins diesel genset china cummins diesel genset 150kva cummins diesel genset cummins diesel genset china

Model	1500 rmp/400v 3P 4W/50HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
DCW-125T5	125	100	137.5	110	QSB5.9-G3	23208801510	1350	320011001900	1850
DCW-135T5	135	108	145	116	6BTAA5.9-G2	23408601450	1350	320011001900	1850
DCW-150T5	150	120	165	132	6BTAA5.9-G12	23409001450	1400	320011001900	1900
DCW-150T5	150	120	165	132	QSB6.7-G3	247011001660	1900	330013802000	2400
DCW-165T5	165	132	181.5	145	6CTA8.3-G1	23608601500	1850	320011001900	2300
DCW-165T5	165	132	181.5	145	6CTA8.3-G2	23608601500	1850	320011001900	2300
DCW-180T5	180	144	197.5	158	QSB6.7-G4	253011001660	2000	330013802000	2500
DCW-181T5	181.3	145	200	160	6CTA8.3-G1	23608601500	1850	320011001900	2300
DCW-181T5	181.3	145	200	160	6CTA8.3-G2	23608601500	1850	320011001900	2300
DCW-200T5	200	160	215	172	6CTAA8.3-G2	24909601550	1950	320011501900	2500
DCW-200T5	200	160	220	176	QSL8.9-G2	261011001700	2100	360013802000	2600
DCW-225T5	225	180	247.5	198	QSB3.9-G3	267011001700	2200	360013802000	2700
DCW-225T5	225	180	250	200	6LTAA8.9-G2	25409601720	2000	320012501900	2550
DCW-250T5	250	200	263.8	211	6LTAA8.9-G2	25409601720	2050	320012501900	2600
DCW-250T5	250	200	275	220	QSL8.9-G4	25409601720	2050	320012501900	2600
DCW-250T5	250	200	275	220	6LTAA8.9-G3	25409601720	2050	320012501900	2600
CCW-250T5	250	200	275	220	NTA855-GA	291011001720	3000	410013802250	3900
CCW-250T5	250	200	275	220	NTA855-G1	291011001720	3000	410013802250	3900
CCW-250T5	250	200	275	220	MTA11-G2	270011001720	3100	380013802250	4000
CCW-250T5	250	200	275	220	MTA11-G2A	270011001720	3100	380013802250	4000

Model	1800 rmp/480v 3P 4W/60HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
DCW-125T6	125	100	138	110	6BT5.9-G2	21308601450	1280	295011001900	1700
DCW-131T6	131	105	144	116	6BTA5.9-G2	21308601450	1300	295011001900	1750
DCW-145T6	145	116	156	125	6BTAA5.9-G2	23408601450	1350	320011001900	1850
DCW-160T6	160	128	175	140	6BTAA5.9-G12	23408601450	1350	320011001900	1850
DCW-190T6	190	152	209	167	6CTA8.3-G2	23608601500	1850	320011001900	2300
DCW-206T6	206	165	230	184	6CTAA8.3-G2	24908601550	1950	320011001900	2500
